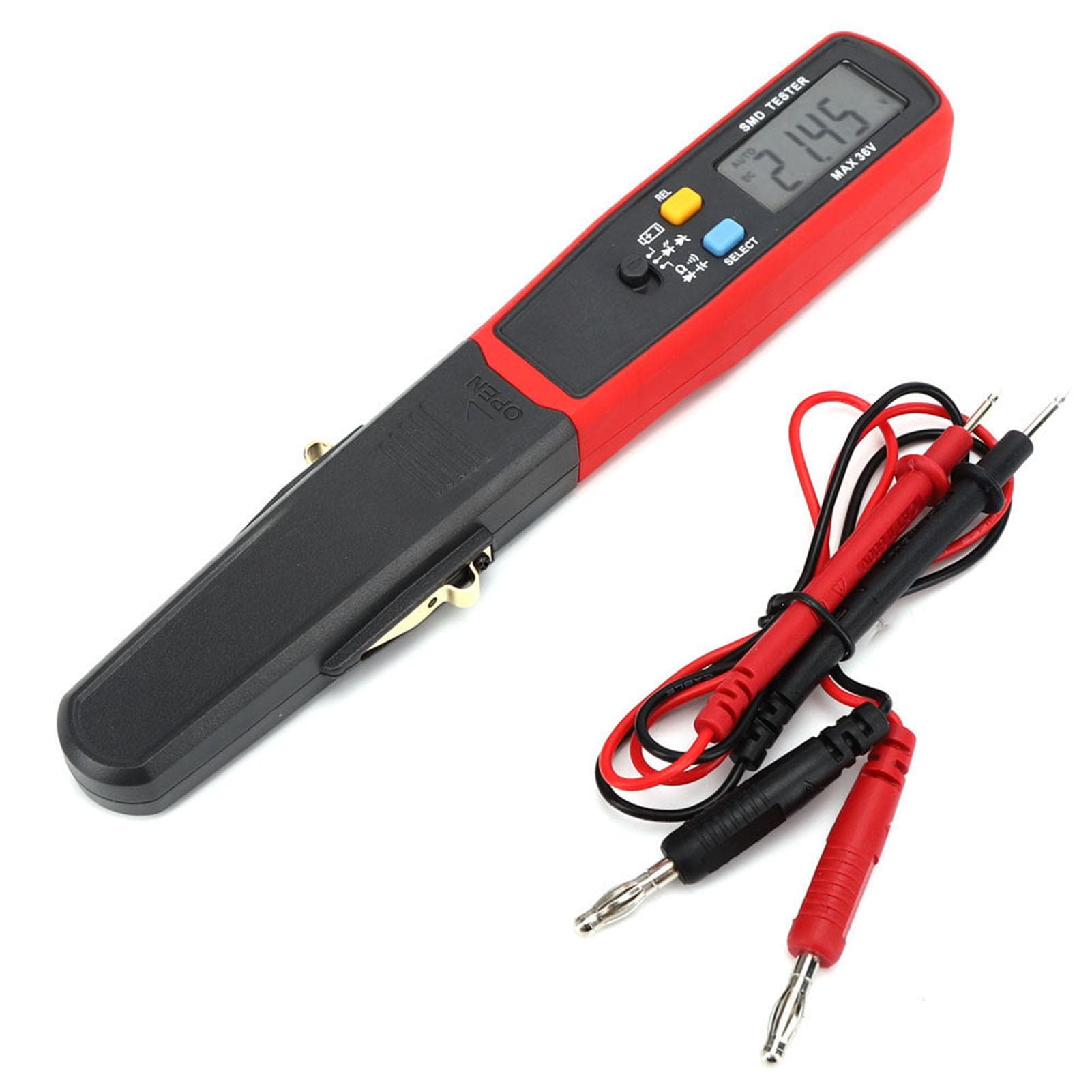

UT116C Tester for SMD Resistance Capacitance Diode (RCD) Multimeter Testing Equipment

About this item

• Feature: 1. 6000 counts LCD display, automatic range, support for relative value measurement, onoff test function. 2. Diode measurement function, voltage regulator tube, LED test, battery voltage measurement function, low voltage display, automatic shutdown function. 3. It is widely used in the measurement for SMD resistance, capacitance, and diode (RCD) parameters. It is a good helper for electronic factories and electronic maintenance. 4. Small utility model measuring instrument with LED, on?off and battery measurement functions. It can automatically identify resistance, capacitance and diode, which is convenient for screening components. 5. Main user groups: electronic engineers ? engaged in for SMD type testing; repairman ? notebook computer repair, mobile phone and other chip components motherboard. Specification: Condition: 100percent Brand New Item Type: Multimeter Material: ABS Application: It is widely used in the measurement for SMD resistance, capacitance, and diode (RCD) parameters. UT116C Function Range Resolution Accuracy +(apercent Reading + bpercent Digit) Resistance 600 Ohm 0.1 Ohm +(1.0percent Reading +10) 6K Ohm 1 Ohm 60K Ohm 10 Ohm 600K Ohm 100 Ohm 6M Ohm 1K Ohm +(1.5percent Reading +10) 60M Ohm 10K Ohm +(2.5percent Reading +10) Capacitance 9.999nF 0.001nF +(3.0percent Reading +20) 99.99nF 0.01nF +(2.5percent Reading +10) 999.9nF 0.1nF 9.999microfarad 1nF 99.99microfarad 10nF 999.9microfarad 100nF +(3.5percent Reading +25) 9.999mF 1microfarad +(5percent Reading +50) 99.99mF 10microfarad For Reference Continuity Test less than 50 Ohm sound, more than 100 Ohm buzzer does not sound, 50 Ohm to 100 Ohm may or may not sound Diode Forward 4148: 500mV~800mV. Open circuit voltage is about 3.2V, measuring current is about 2mA Battery Measurement Load current is about: more than 10mA; + (1.5percent reading +5) DC Voltage No Semiconductor LED Open circuit voltage: about 21V, if the display voltage exceeds 21V, it will not damage the semiconductor or LED under test; current: about 5mA SELECT Yes HOLD Yes Sleep Function About 15min, standby current <20uA, short press SELECT button to wake up Low Voltage Detection About <2.7V display low battery Power Supply 1.5V 2 x AAA Battery (Not Included) Color Red + Gray Product Size Approx. 204 x 33 x 25 mm 8 x 1.3 x 1 in Weight Approx. 151g 5.3oz . Package List: 1 x Tester (Battery Not Included)1 x English User Manual1 Pair x Test Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.6000 counts LCD display, automatic range, support for relative value measurement, onoff test function. Diode measurement function, voltage regulator tube, LED test, battery voltage measurement function, low voltage display, automatic shutdown function. It is widely used in the measurement for SMD resistance, capacitance, and diode (RCD) parameters. It is a good helper for electronic factories and electronic maintenance. Small utility model measuring instrument with LED, on?off and battery measurement functions. It can automatically identify resistance, capacitance and diode, which is convenient for screening components. Main user groups: electronic engineers ? engaged in for SMD type testing; repairman ? notebook computer repair, mobile phone and other chip components motherboard.
