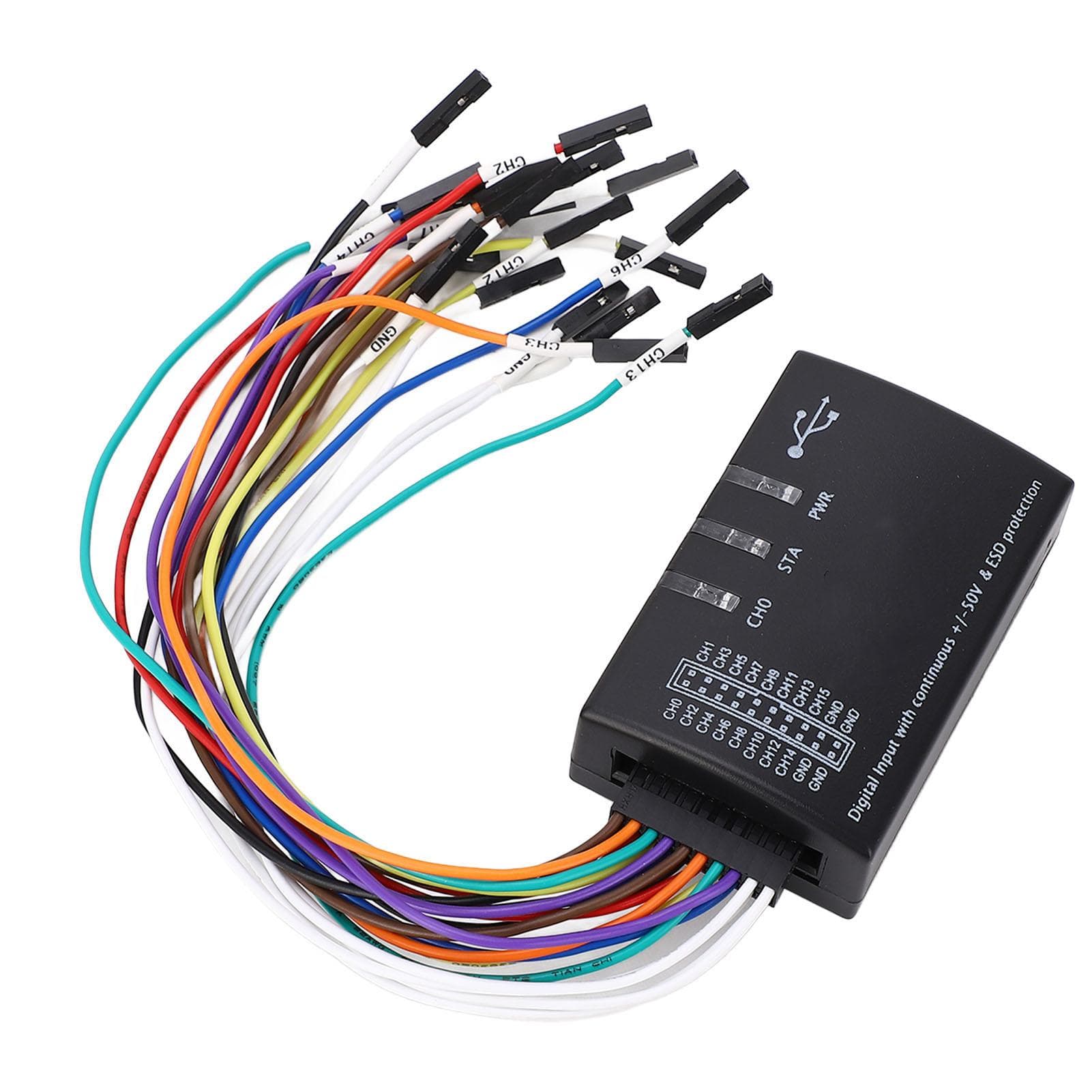

Logic Analyzer 16 Channel 100M Sampling Rate Compact USB Logic Analyzer for Windows

About this item

• Feature: 1. 16 Channel Logic Analyzer: Supports the latest version of for SALEAE LOGIC2 software. Directly download software from the official website, no need for cracked software. Compatible with for Windows, for Linux, for OS X, and supports future software upgrades. 2. High Sampling Rate: Supports 100M sampling mode with up to 3 channels. Tested in 3 channel 100MHZ mode before shipping. Requires USB 2.0 high speed mode support for all 3 channels. 3. Powerful Protocol Analysis: Supports up to 17 serial protocol analyses including for SPI, for UART, for CAN, for JTAG, 1 WIRE. Covers almost all common serial board level and field level bus protocols. 4. Custom Protocol Analysis Settings: Easily set parameters for protocols like for RS232 and for UART. Adjust baud rate, data length, stop bits, parity, etc. before or after data collection for accurate analysis. 5. Multi Protocol Analysis: Simultaneously analyze multiple protocols with real time display. Show data in for ASCII, hexadecimal, decimal, octal, binary formats. Easily debug and save protocol analysis content in text or spreadsheet files. Specification: Item Type: Logic Analyzer Material: ABS Channels: 16 Sampling Rate: MAXIMUM.100M Supports 1.1.34 software. Subsequent software upgrades and support. 2016+ new for logic16 saleae16 USB 100M logic analyzer ARM FPGA decoding tool version 1.2.10 Supports the latest 1.2.10 software and supports subsequent software upgrades. Supports the official latest version 1.2.10 software: cool interface, better user experience. Hardware also has new breakthroughs Hardware level width trigger support required. It is recommended to confirm whether it supports the latest software version before using this type of product! Includes for SPI, for UART, for CAN, for JTAG, for 1 WIRE, and up to 17 serial protocol analysis supports. Covering almost all common serial grade buses and field buses protocols. Our for Saleae Logic16 is compatible with all software versions of various operating systems from version 1.1.14 to version 1.1.23. Software can be directly downloaded from the official website without using modified PC software. . Package List: 1 x Logic Analyzer 1 x Connection Cable 4 x Accessories Note: 1. Try to connect to the USB port at the back of the desktop computer. Connecting to the front USB port may result in low speed issues due to long low quality internal wiring connecting the front panel of the host to the computer motherboard. 2. The performance of USB ports on laptops and the quality of USB power are often inferior to desktop computers, making it more likely to encounter low speed prompts. 3. Using a USB HUB also affects the sampling rate and USB power quality. 4. If there are other USB devices such as WIFI cards, USB flash drives, etc. next to the USB port, it may also affect the sampling rate. 5. Before shipping each logic analyzer, we have conducted 3 channel 100M acquisition tests on multiple computers to ensure the performance of the product. 6. The PCB board is meticulously designed from component selection to layout wiring to ensure high USB performance and has passed electromagnetic interference tests.16 Channel Logic Analyzer: Supports the latest version of for SALEAE LOGIC2 software. Directly download software from the official website, no need for cracked software. Compatible with for Windows, for Linux, for OS X, and supports future software upgra High Sampling Rate: Supports 100M sampling mode with up to 3 channels. Tested in 3 channel 100MHZ mode before shipping. Requires USB 2.0 high speed mode support for all 3 channels. Powerful Protocol Analysis: Supports up to 17 serial protocol analyses including for SPI, for UART, for CAN, for JTAG, 1 WIRE. Covers almost all common serial board level and field level bus protocols. Custom Protocol Analysis Settings: Easily set parameters for protocols like for RS232 and for UART. Adjust baud rate, data length, stop bits, parity, etc. before or after data collection for accurate analysis. Multi Protocol Analysis: Simultaneously analyze multiple protocols with real time display. Show data in for ASCII, hexadecimal, decimal, octal, binary formats. Easily debug and save protocol analysis content in text or spreadsheet files.
