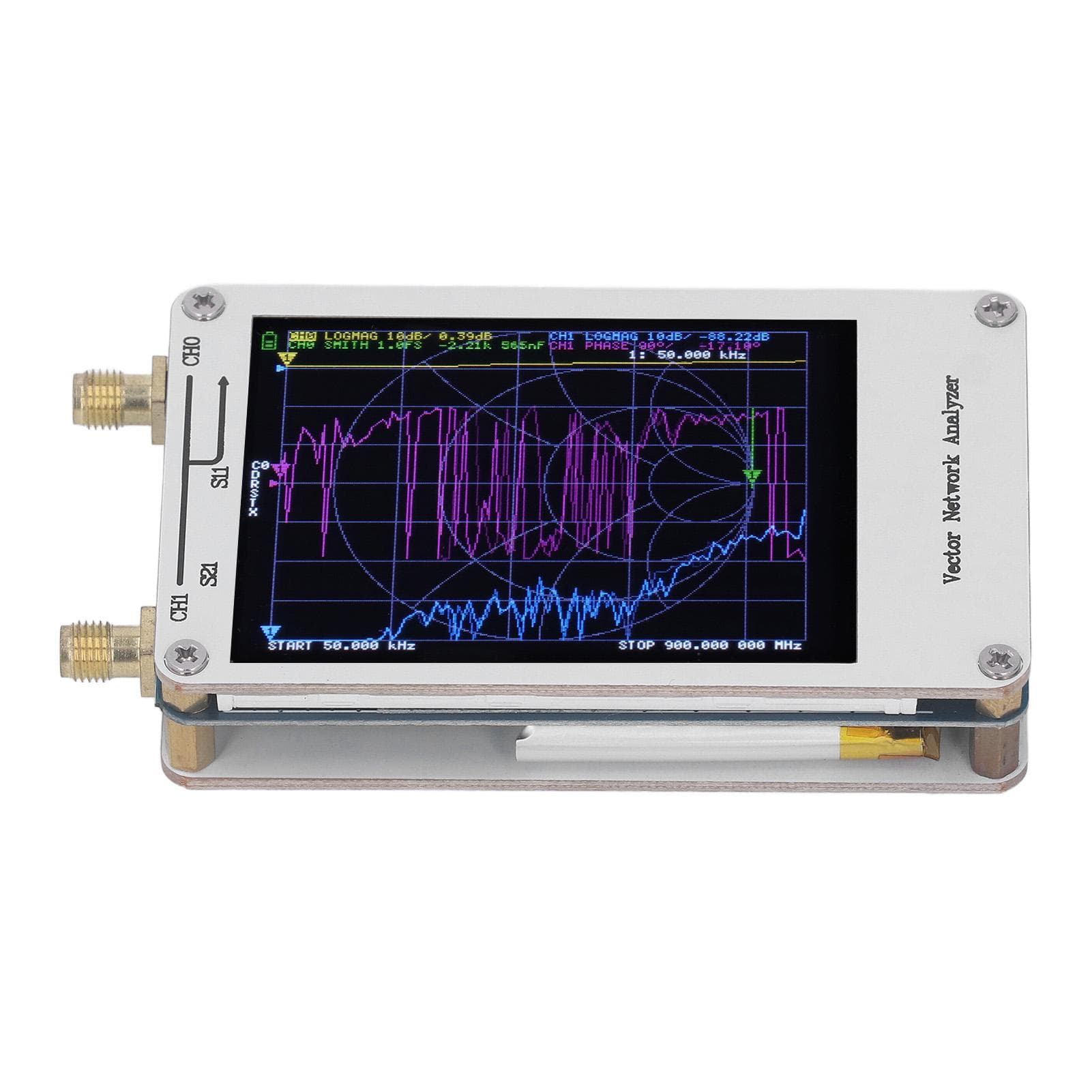

Vector Network Analyzer 50KHz?900MHz 2.8in Touch Screen Short Wave Antenna Analyzer for Measurement

About this item

• Feature: 1. Portable and Easy to Use: The vector network analyzer features a compact size, making it easy to carry and use anywhere. 2. Wide Frequency Range: With a measurement frequency range of 50KHz?900MHz, this analyzer allows for accurate measurements across a wide spectrum. 3. Clear Display: The 2.8in TFT touchscreen display provides a clear and user friendly interface for easy navigation and data analysis. 4. Versatile Measurements: This analyzer can measure various parameters such as S parameters, VSWR, phase, delay, and even display results on a Smith chart. 5. Convenient Connectivity: Equipped with a USB Type C interface, the analyzer supports easy communication and data transfer with other devices. Specification: Item Type: Vector Network Analyzer Material: PCB Product Size: Approx. 55 x 87 x 16mm 2.17 x 3.43 x 0.63in, without connectors and switches. Measurement Frequency: 50KHz~900MHz Output: 13dbm. 9dbm maximum. Measurement Range: 70dB at 50kHz300MHz, 60dB at 300M600MHz, 50dB at 600M900MHz, suppports extended firmware. Port SWR: <1.1 Display: 2.8in TFT, 320 x 240. USB Interface: USB Type C Communication Mode: CDC, serial. Power Supply: USB 5V 120mA, built in 600mAh lithium battery. 0.8A maximum charging current. Scan points: 101, fixed. Display Tracking: 4, Mark: 4, Set Save: 5. Measurement: Measure S parameters, voltage standing wave ratio, phase, delay, Smith chart, etc. . Package List: 1 x Vector Network Analyzer1 x Data Cable2 x SMA Male to Male Connecting Cable4 x ConnectorPortable and Easy to Use: The vector network analyzer features a compact size, making it easy to carry and use anywhere. Wide Frequency Range: With a measurement frequency range of 50KHz?900MHz, this analyzer allows for accurate measurements across a wide spectrum. Clear Display: The 2.8in TFT touchscreen display provides a clear and user friendly interface for easy navigation and data analysis. Versatile Measurements: This analyzer can measure various parameters such as S parameters, VSWR, phase, delay, and even display results on a Smith chart. Convenient Connectivity: Equipped with a USB Type C interface, the analyzer supports easy communication and data transfer with other devices.
