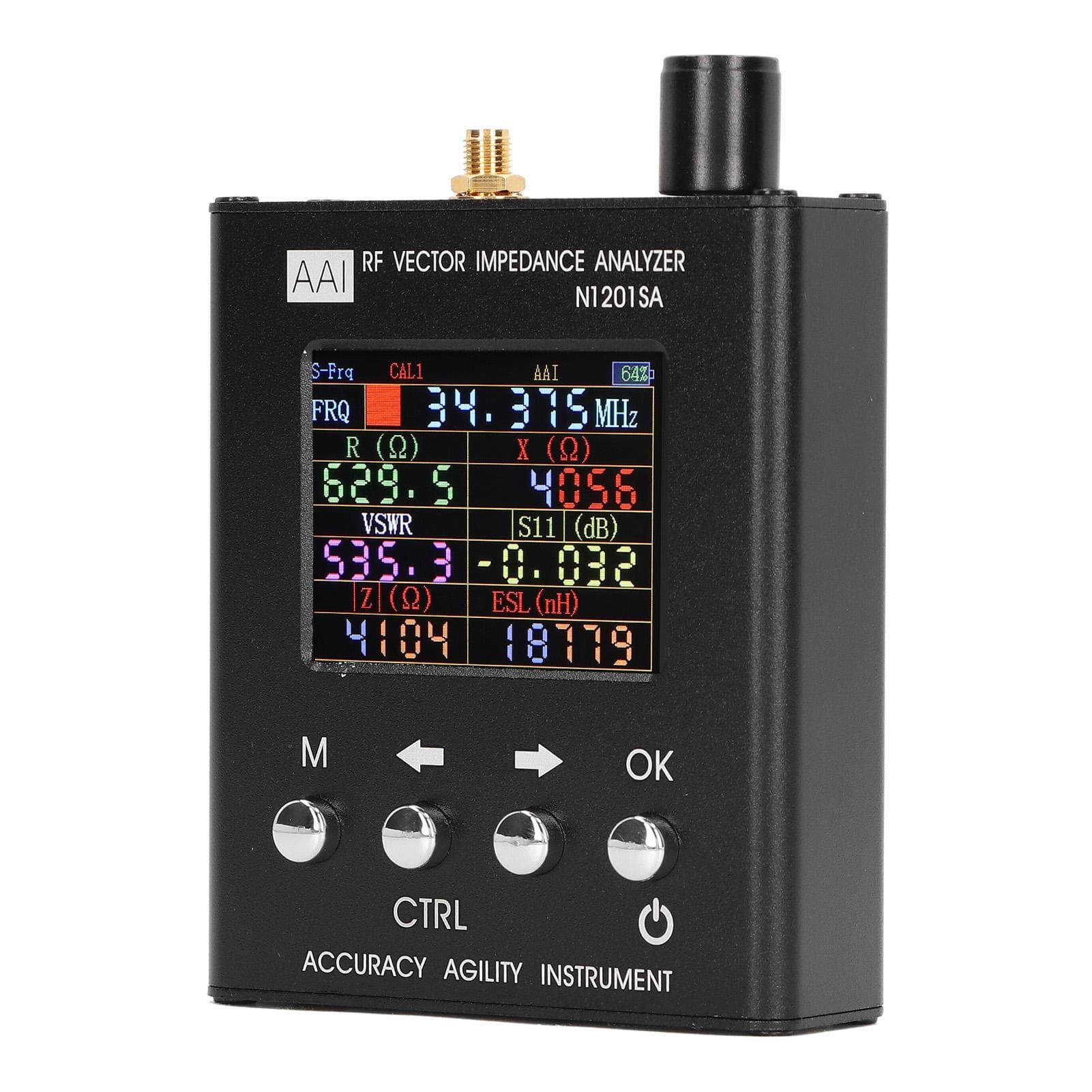

RF Vector Impedance Analyzer 2.4 Inch Screen ANT SWR Antenna Analysis Tester USB Charging

About this item

• Feature: 1. MAIN PURPOSE: The vector impedance analyzer is mainly used to test antenna impedance, RF device impedance, circuit board impedance, etc. 2. MEASURING PARAMETER: Can be used to measure resistance, reactance, standing wave, and S11, with a wide measurement range, high resolution, and accuracy. 3. BUILT IN BATTERY: The antenna analyzer has built in 2000mAH polymer lithium battery, USB interface for charging, can operate continuously for over 4 hours. 4. OTHER FUNCTIONS: The single point measurement result is 4 digit significant figures, 280 scanning points, with calibration function, stable and reliable. 5. 2.4IN TFT SCREEN: The antenna impedance analyzer adopts 2.4 inch TFT screen, lightweight and portable, suitable for outdoor and high altitude work. Specification: Item Type: Antenna Analyzer Working Frequency: 137.5MHz2700MHz Frequency Step: 1kHz Display: 2.4 Inch TFT Resolution 320x240 (QVGA) Battery: 2000mAH Polymer Lithium Battery (built in battery) Power Consumption: <1.5W Charging Current: 400mA Charging Interface: USB (only used as a charging interface) Automatic Shutdown: Settable (continuously on, 560 minutes optional) Measurement Parameters: Resistance, Reactance, Standing Wave, S11 Resolution: 4 Significant Value Frequency Accuracy: <+10ppm Connector: SMAK Measurement Range: Impedance: Frequency <1300MHz (absolute impedance value), frequency >1300MHz (absolute impedance value) Standing Wave: Frequency <1300MHz, frequency >1300MHz S11: 0dB to 50dB Error (Single Point Measurement): Impedance: Z <200 Ohm , frequency <1.3GHz; Z <200 Ohm , frequency >1.3GHz S11: 0dB to 10dB, 10dB to 20dB, 20dB to 40dB Standing Wave: <2, 2<VSWR<10 Directionality (After Calibration): 137.5MHz, 34.375MHz 2GHz, 2GHz 2.7GHz Scan Points: 280 Output Level: 18dBm Working Temperature: 5 celsius 40 celsius Atmospheric Pressure: 860hPa1060hPa . Package List: 1 x Antenna Analyzer 1 x USB Cable1 x User ManualMAIN PURPOSE: The vector impedance analyzer is mainly used to test antenna impedance, RF device impedance, circuit board impedance, etc. MEASURING PARAMETER: Can be used to measure resistance, reactance, standing wave, and S11, with a wide measurement range, high resolution, and accuracy. BUILT IN BATTERY: The antenna analyzer has built in 2000mAH polymer lithium battery, USB interface for charging, can operate continuously for over 4 hours. OTHER FUNCTIONS: The single point measurement result is 4 digit significant figures, 280 scanning points, with calibration function, stable and reliable. 2.4IN TFT SCREEN: The antenna impedance analyzer adopts 2.4 inch TFT screen, lightweight and portable, suitable for outdoor and high altitude work.
