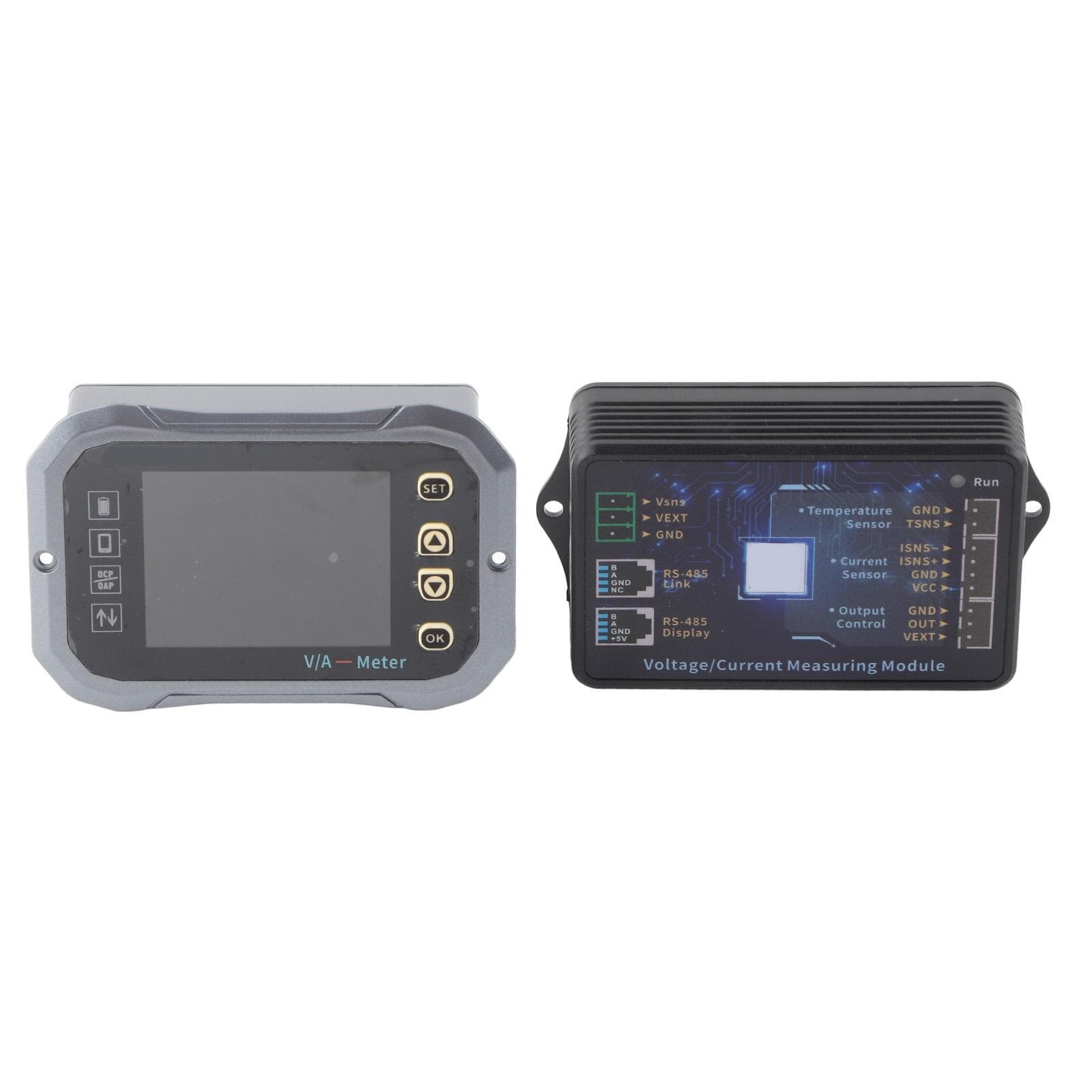

100A Smart Battery Monitor with Shunt Color Screen RV Coulombmeter Voltage Current Power Capacity

About this item

• Feature: 1. MEASURING PARAMETERS: This battery monitor can measure voltage, current, power, charging and discharging capacity, watt hours, time, etc., with overvoltage, undervoltage, overcurrent, overvoltage, and over temperature protection. 2. MULTIPLE FUNCTIONS: Can set parameters, support BT to view measurement data, control instruments and firmware upgrades through mobile APP, automatically recognize and monitor current and current direction. 3. DURABLE MATERIAL: Silicone shortcut keys have a comfortable feel, simplify the operation steps, the acrylic panel effectively protects the screen with good light transmittance, the brass shunt and screws have good conductivity and low heat generation. 4. PROTECTION ALARM: When the value exceeds the set limit value, the meter protection function will be activated, alarm sounds and provides reminder, the relay (not included) will disconnect the circuit to protect the meter from damage. 5. MULTIPLE CONTROL: Support display control, provide comm protocol, adopt 485 comm, support secondary development, and can switch comm addresses to control 99 units respectively; Mobile APP control, BT connection and viewing of data and curves. 6. CLEAR DISPLAY: The battery monitor adopts a 2.4in color screen, which displays the current function menu, parameter settings, and measurement data, the display is comprehensive and clear, suitable for all batteries with voltage within the measuring range. Specification: Item Type: Battery Monitor Model: KH110F Material: Acrylic, Brass, Silicone Screen: 2.4 Inch Color LED Screen Sampling Method: Shunt Voltage Measuring Range (External Power Supply): 10120V Voltage Measuring Range (Self Power Supply): 10120V Voltage Resolution: 0.01V Current Measuring Range: 0100A Current Resolution: 0.01A Relay: No provided, requires self configuration Temperature Measuring Range: 20120 celsius Capacity Display Range: 0percent 100percent Power Measuring Range: 072KW Power Resolution: 0.01W Anshi Measuring Range: 09999.99Ah Capacity Resolution: 0.001Ah Watt Hour Measuring Range: 09999.99kWh Watt Hour Resolution: 0.001Wh Time Measuring Range: 0999: 59: 59S Time Resolution: 1 second Accessible BT Comm Distance: Up to 10 meter 32.8ft Voltage Accuracy: +1percent + 2 words Current Accuracy: +1percent + 5 words Sampling Rate: 1 time per second Measurement Board Power Consumption: About 0.4W Display Meter Power Consumption: About 0.5W Overpower Protection: 099999.99W Discharge Overcurrent Protection: 100A Charging Overcurrent Protection: 100A Undervoltage Protection: 0120V External Over Temperature Protection: 20120 celsius Protection Recovery Time: 099s Enter Standby Time: 060s Delay Time Setting: 099s Mailing Address: P01P99, 99 in total. Package List: 1 x Display Module1 x Measuring Module1 x Sampler1 x Temperature Sensor1 x 5 Meter Comm Line1 x 3P Flat Cable1 x 4P Flat Cable1 x 3P Wiring Terminal Note: Please read the manual carefully before use.MEASURING PARAMETERS: This battery monitor can measure voltage, current, power, charging and discharging capacity, watt hours, time, etc., with overvoltage, undervoltage, overcurrent, overvoltage, and over temperature protection. MULTIPLE FUNCTIONS: Can set parameters, support BT to view measurement data, control instruments and firmware upgrades through mobile APP, automatically recognize and monitor current and current direction. DURABLE MATERIAL: Silicone shortcut keys have a comfortable feel, simplify the operation steps, the acrylic panel effectively protects the screen with good light transmittance, the brass shunt and screws have good conductivity and low heat generation. PROTECTION ALARM: When the value exceeds the set limit value, the meter protection function will be activated, alarm sounds and provides reminder, the relay (not included) will disconnect the circuit to protect the meter from damage. MULTIPLE CONTROL: Support display control, provide comm protocol, adopt 485 comm, support secondary development, and can switch comm addresses to control 99 units respectively; Mobile APP control, BT connection and viewing of data and curves.
