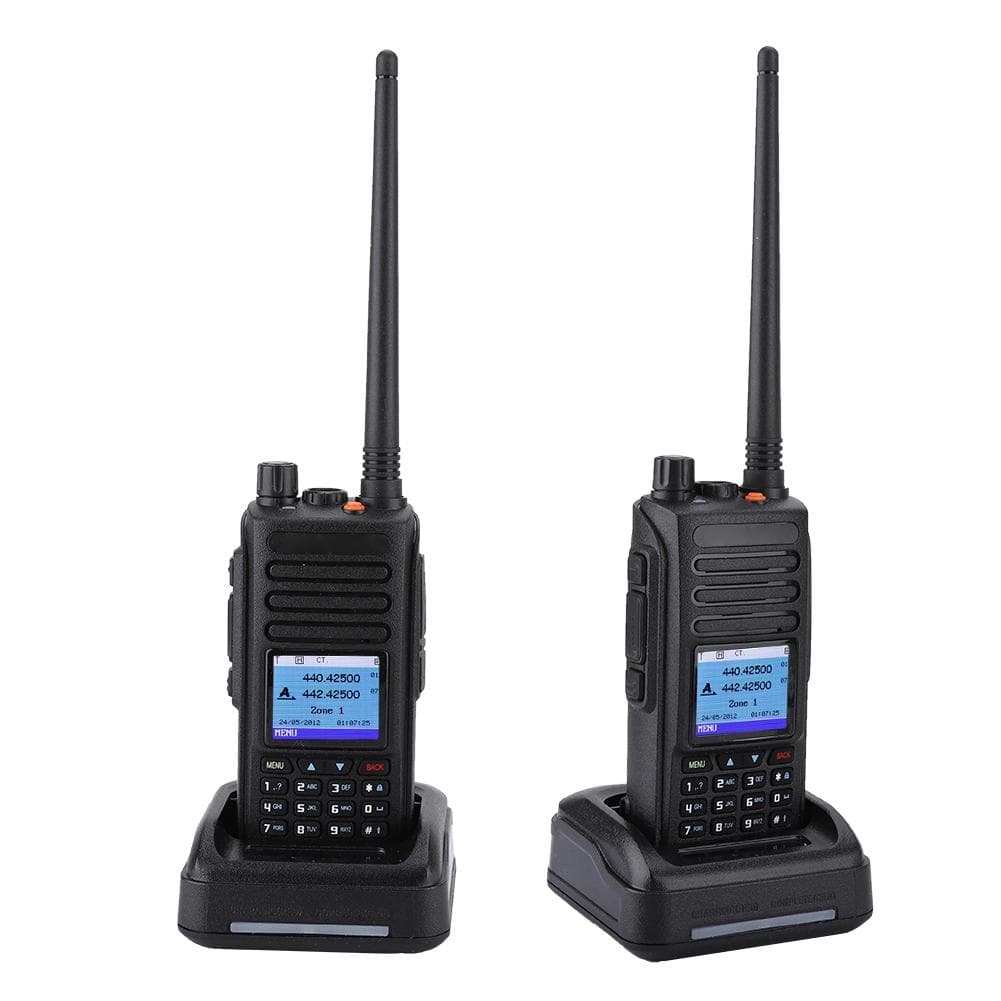

DM1702 Portable Handheld Radio Dual Band GPS VHF UHF Walkie Talkie US Plug

About this item

• Features: Compatible for Mototrbo Hytera Tier II Radio and its repeater perfectly. Dual band VHF 137-174MHz & UHF 400-470MHz. GPS Function: Support longitude & latitude position. Analogue & Digital Mode. 1024 Storage Channel. Dual Time Slot, Tier I & II. Support for group call private call. Dual Display. VOX Function. Frequency Step: 2.556.251012.52025K. Scan function. 16 groups color code seletable. 2200mAh 7.4V 16.28Wh high capacity li-ion battery pack. Message function. Support manually programming and PC programming. HighMediumLow Power seletable. FrequencyChannel Mode Selectable. Specification: Condition: 100percent Brand New Material: ABS Plug Type: US Plug 100-240V, EU Plug 100-240V, AU Plug 100-240V (optional) Frequency range: VHF: 136-174MHz UHF: 400-470MHz (Dual Band) Memory channel: 1024 Frequency Stability: +-1.0ppm Operating Temperature: -30 celsius -+60 celsius Operating Voltage: DV 7.4V Size: Approx. 136*62*36 mm 5.4*2.4*1.4 in (no including the antenna) Weight: Approx. 274g (Include in Battery and antenna) Transmission: Output power: High: 5W Low: 1W Output Consumption: Analog<=1.6A Digital<=0.9A FM modulation: 16K F3E@25KHz 141K F3E@20KHz 11K F3E@12.5KHz 4FSK digital modulation: 12.5KHz for data: 7K60FXD 12.5KHz for data and voice: 7K60FXE Modulation Distortion: <5percent Signal-to-noise: >=45dB@25KHz >=40dB@12.5KHz Adjacent Channel Power: <=-65dB<=-60dB o Response: +1~-3dB Antenna Port Spurious: 9KHz~1GHz: <=-36dBm 1GHz-12.75GHz: <=-30dBm Digital Protocol: ETSL-TS102 361-1, -2, -3 Vocoder Type: AMBE+2 TM Reception: Analog receive sensitivity: -122dBm (12dB SINAD) Digital receive sensitivity: -120dBm(BER<=5percent ) o Power: 1W o Distortion: <10percent o Response: +1~-3dB Signal imitation: >=70dB Intermediation (WideNarrow): >=62dB>=58dB Adjacent channel selectivity(WideNarrow): >=65dB60dB Receive current: <=380mA PM Noise: >=45dB@25KHz >=40dB @12.5KHz Package list: 1 * User Manual 1 * Walkie Talkie 1 * Battery 1 * Antenna 1 * Earphone 1 * Clip 1 * Hanging Rope 1 * Power Adapter 1 * Charger
