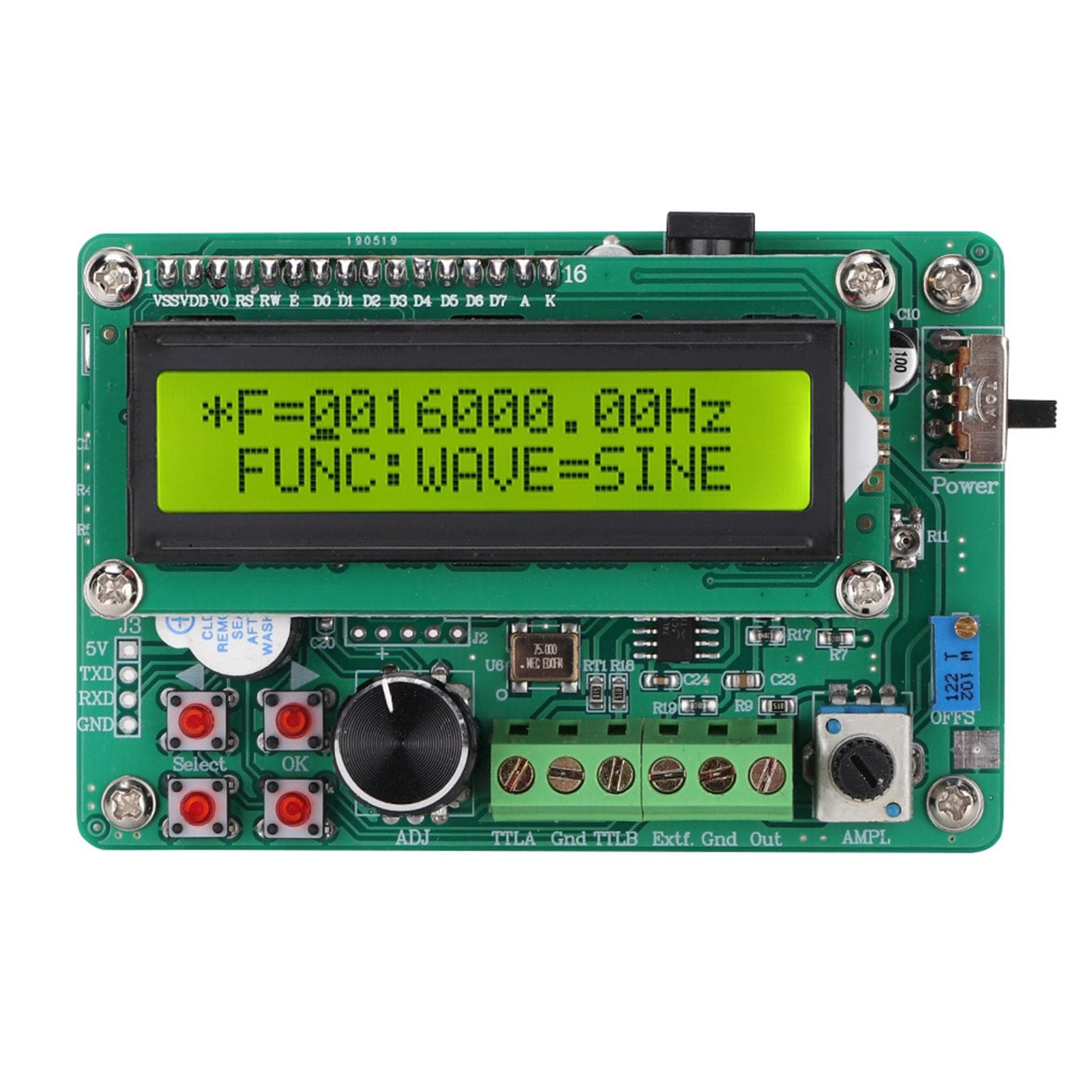

FY1005S Digital LED Display DDS Function Signal Generator 5MHZ Sine Frequency Counter Module US Plug

About this item

• FY1005S series DDS function signal generator (source) is a set of function signal generator with signal generator, frequency scanner, frequency meter and other functions. The instrument uses a large-scale FPGA integrated circuit and a high-speed MCU microprocessor. The internal circuit is based on a high-precision active crystal oscillator and has high signal stability. Surface mount technology greatly improves the immunity and service life of the instrument. The instrument combines ease of use, excellent technical indicators and other functions in signal generation, frequency scanning, parameter measurement and use, which can help users complete tasks quickly. It is an ideal choice for electronic engineers, electronic laboratories, production lines and teaching. It is a scientific research test and measurement device, and it can also be used as an industrial control support module. The last two digits of model number 00 of the FY1000S series instrument represent the upper limit of the sine wave frequency (MHz) of the instrument. Example: FY1002S, 02 means sine wave output frequency up to 2MHz. Features: Small size, many functions, easy to carry. High frequency accuracy: Frequency accuracy can reach 6-10 orders of magnitude. High frequency resolution: Full frequency resolution 5mHz. No range limitation: Full frequency regardless of file, direct digital setting. The waveform accuracy is high: The output waveform is calculated by the composite value, the waveform accuracy is high, and the distortion is small. Multiple waveforms: Sine wave, square wave (duty cycle adjustable), triangle wave, sawtooth wave, double TTL level. Scanning function: Linear scanning and logarithmic scanning. Scan parameters can be set. Storage function: 10 groups can store the status parameters set by the user, and can be reproduced at any time. Operation mode: Full key operation, LCD1602 LCD English display, direct digital setting or knob continuous adjustment. High reliability: large-scale integrated circuit, surface mount technology, high reliability and long service life. Frequency measurement: It comes with 60MHz frequency meter and counter function, internalexternal signal measurement. Specification: PCB area: Approx. 10.4 x 6.3cm 4.1 x 2.5in Package list: 1 x DDS Signal Generator 1 x Connecting Cable 1 x US Plug . Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
