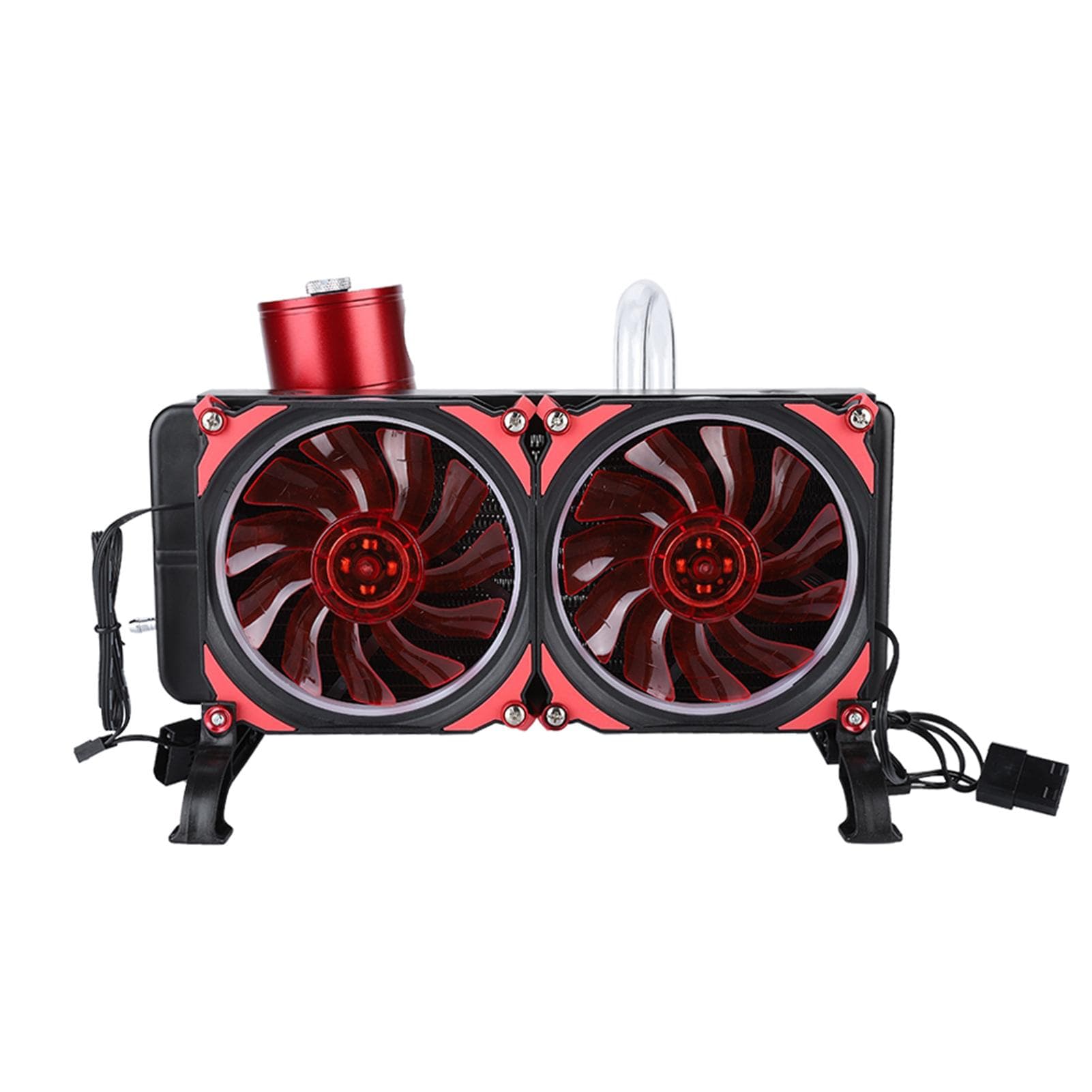

Notebook Computer Water Cooled Set PC Water Cooling Kit Parts Liquid Cooling Set

About this item

• Features: This is a notebook water-cooled suit, the product is novel and easy to install. Compared with the air-cooling heat dissipation, the cooling effect of the water-cooled package is more significant. Small size, no space, can be placed on the desktop. Customliquid cooling can give you much better cooling performance compared to all inone cooling systems and traditional air coolers as you can make specific tweaks to your system to have it perform better. The kit contains all the bits you need to customise your water cooling set up and have it match the rest of your system. Specifications: 1. Water Row Size: Approx. 275 * 120 * 32 mm 10.8 * 4.7 * 1.3 in Interface: G14 thread Material: aluminum Composition: single layer flat tube, flat tube 18 2. SC600 Water Pump Rated voltage: 12V motherboard small 3-pin plug Input current: 0.8A +-10percent Motor operating speed: 5600RPM +- 5percent Head: 4M+-0.5M Flow rate: 600LH+-10percent Startup voltage: 6V Size: Approx. 71 * 56 * 46 mm 2.8 * 2.2 * 1.8 in (not include brackets and connectors) Wiring color definition: red positive black negative white speed Ceramic bearing, graphite bushing, very quiet, no water idling during use Bracket hole distance: starting from the center of the hole, width 51.50mm, length 31.50mm 3. Fan Size: Approx. 120 * 120 * 25 mm 4.7 * 4.7 * 1.0 in Net weight: about 130g Fan speed: 1200 +- 10percent RPM Maximum air volume: 50CFM Maximum static pressure: 1.703mm-H20 Noise: 23.5DB (A) Rated voltage: 12VDC Working voltage: 10.8-13.2VDC Starting voltage: 7VDC Rated current: 0.25A Power input: 3W Bearing type: sleeve bearing 4. Water Tank Size: Approx. 12 * 5.8 * 5.8 cm 4.7 * 2.3 * 2.3 in Material: PMMA + anode aluminum Intermediate transparent acrylic outer diameter: 50mm Hole position: G14 thread *6 Color: Red Equipped with adjustable plastic clips*1 Package Iist: 1 * Water Row 1 * Water Pump 2 * Fan 1 * Water Tank (Equipped with adjustable plastic buckle * 1) 6 * Fast Twist 7 * Screw Kit 1 * Water Flow Meter 3 * Hard Tube 4 * Water Row Stent 5 * Choke Plug 2 * I-Type Holder 2 * 90 degrees Elbow 2 * 90 degrees Stents 2 * Connector Installation Steps 1. Lock the two fans with the M3*32 screws on the water line. 2. Use the M3*35 screw to lock the water row bracket on the water line. 3. The other side of the second step uses the M3*12 screw to fix the water row bracket and the water drain. 4. Lock the 90 degrees bracket with an M4*14 screw + M4 nut on an I-bracket. 5. Lock the type I bracket of step 4 with the M4*10 screw + M4 nut under the water pump. 6. Lock the adjustable plastic buckle of the water tank with another M4*10 screw + M4 nut on the other type I bracket. 7. Lock the pump of step 5 and the adjustable plastic clip of step 6 with M3*12 screws on the water line. 8. Install the quick screw, pagoda, 90 degrees elbow and plug on the water drain, water pump and water tank respectively. 9. Install the quick-turn nut and seal ring on the short straight hard pipe and connect the water pump and the water tank together. 10. Install one plug and two quick turns on the water flow meter. Quickly screw the nut and seal ring on the other two hard tubes and connect them with the water pump, water flow meter and water drain to complete the installation. . Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
