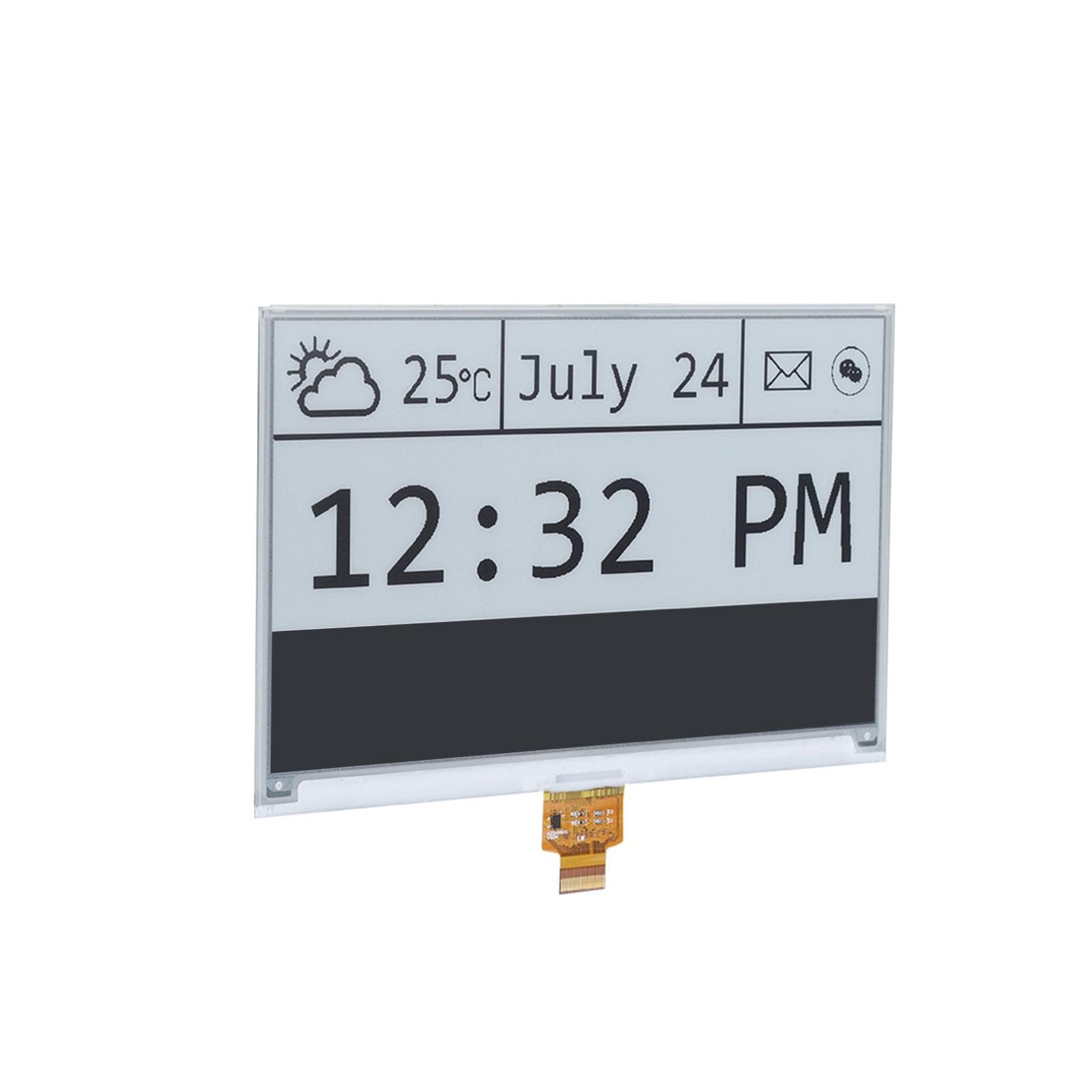

7.5inch E ink Display HAT 640 * 384 Module Board for Raspberry Pi 2B3B3B+Zero SPI Interface

About this item

• Features: This 7.5inch E-Ink Display HAT is specially designed for Raspberry Pi. Suitable for Raspberry Pi 2B3B3B+ZeroZero W. Features the resolution of 640 * 384 and its embedded controller, easy to use via SPI interface. SPI interface for connecting with other controller boards, for RaspberryArduinoNucleo, etc. With its wide viewing angle(>170 degrees ) and clear display even under direct sunlight. Ultra-low power consumption (standby power: <0.017mW) - Almost only need to consume power when refreshing.(Refresh power: 38mV(typ.) E-Ink screen module is widely used for shelf labels, industrial meters and other display applications. Comes with development resources(Wiki : www.waveshare.comwiki7.5inch_e-Paper_HAT) and manuals(examples for RaspberryArduinoSTM32). Specification: Type: 7.5inch E-Ink Display HAT Suitable brand: For Raspberry Pi Interface: SPI Working voltage: 3.3V Dot Pitch: 0.255 * 0.255 Resolution: 640 * 384 Grey level: 2 Refresh power: 38mV(typ.) Standby power: <0.017mW Viewing angle: >170 degrees Full refresh time: 6s Interface: VCC: 3.3V GND: GND NC: NC DIN: SPI MOSI pin CLK: SPI SCK pin CS: SPI chip selection, low active DC: DataCommand selection (high for data, low for command) RST: External reset, low active BUSY: Busy status output, low active Material: PCB + Tempered Glass Color: Black and White Weight: Approx. 182g Display size: Approx. 163.2 * 97.92mm 6.4 * 3.9in Outline size: Approx. 170.2 * 111.2mm 6.7 * 4.4in Package list: 1 * 7.5inch E-Paper Hat 1 * E-Paper Driver Board 1 * PH2.0 20cm 8Pin Cable 1 * RPi Screws Kit(2Pcs) Note: 1. Please allow slight error due to manual measurement. Thanks for your kind understanding. 2. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. .
