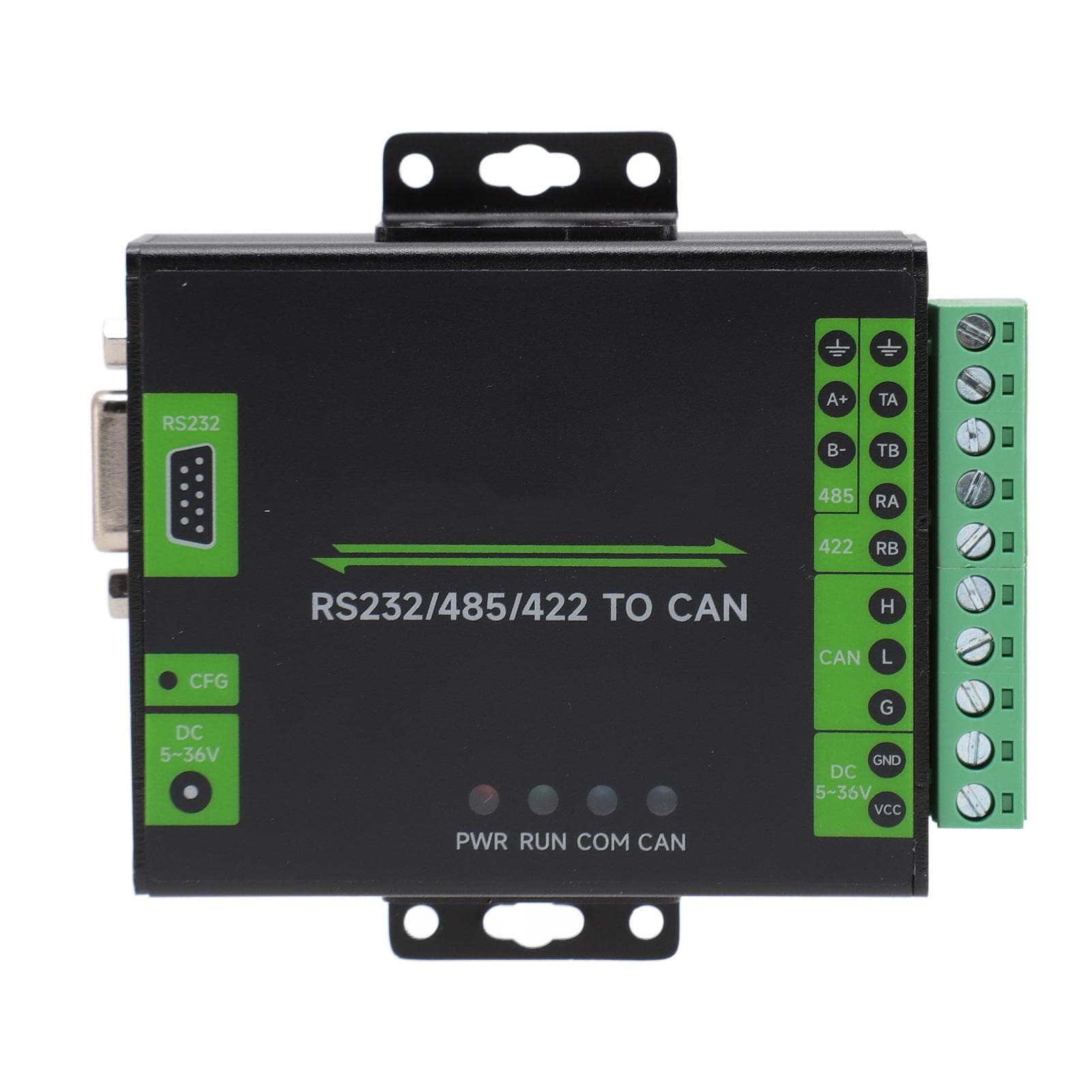

RS232 485 422 to CAN Converter Industrial Isolated Support Circuit Protection Isolated Converter

About this item

• Feature: 1. RELIABLE AND INTERFERENCE RESISTANT: RS232 485 422 to CAN converter adopt for SP3232EEN+SP485EEN chip scheme, high speed communication stability, reliability, good compatibility; Onboard integrated power supply isolation, can provide stable isolation voltage, isolation end does not need additional power supply; On board integrated digital isolation, realize signal isolation, high reliability, strong interference resistance, and low power consumption 2. APPLICABILITY AND COMPATIBILITY: RS232 485 422 to CAN isolated converter conform to CAN 2.0B(extended frame) specification, compatible with CAN 2.0A(standard frame); Conform to ISO 11898‑1, 2, 3; Support the baud rate range of 10kbps to 1000kbps CAN communication. The CAN baud rate is optional 3. HIGH SPEED CONVERSION: RS232, 485, 422 at 115200 baud rate, when at 250kbps, CAN transmit speed up to 1270 extended frames per second(close to the theoretical maximum of 1309 extended frames per second); Realize two way data communication between CAN and RS232, 485, 422; The converter support four CAN modes, including transparent conversion, transparent tape identification conversion, format conversion, and protocol conversion 4. EFFECTIVE PROTECTION: RS232 485 422 to CAN industrial converter on board Transient Voltage Suppressor tube, can effectively inhibit the surge voltage and transient peak voltage in the circuit, prevent thunder and non static; Onboard self restoring fuse and protection diode, can ensure stable current and voltage output, prevent overcurrent and overvoltage, improve impact resistance; Onboard 15KV ESD isolation protection and 600W thunder surge protection; The 120R terminal resistance of the onboard RS485 RS422 interface can be modified by setting the jumper cap 5. VARIOUS FUNCTIONS: Industrial Isolated Converter can upgrade the firmware of the equipment through RS232, 485, 422, which is convenient to customize the firmware; Support set the working parameters through the configuration software or serial port instructions, can be saved by power off; On board terminal power supply interface, support 5~36V DC wide voltage range power supply; External 4 LED indicators, easy to check the power and signal sending and receiving status; Industrial grade metal shell, support wall hanging and guide rail two mounting methods, strong and beautiful, easy to install Specification: Item Type: RS232 485 422 to CAN Converter Host Interface: CAN Device Interface: RS232, 485, 422 CAN Interface: Communication Rate: 10kbps~1000kbps Direction Control: Hardware automatically identifies and controls the direction of data transmission Matching Resistance: Default 120R matching resistance Interface Type: Wiring terminal CAN Interface Pins: H, L, GND RS232485422 Interface: Communication Rate: 1200bps ~ 460800bps Direction Control: Hardware automatically identifies and controls the direction of data transmission Matching Resistor: The default is NC, and a 120R matching resistor is reserved. The jumper cap can be enabled RS232 Interface: DB9 interface RS485 Or 422 Interface Type: Wiring terminal RS485 Port Pins: A+, B-, GND RS422 Interface Pins: TA, TB, RA, RB, GND Interface Protection: Provide 600W thunder protection, surge protection and 15KV electrostatic protection(on board 120R balance resistance) Transmission Mode: Point to many(up to 32 nodes, 16 nodes and more are recommended to add repeaters) key Press For 1 Second: System reset Press And Hold For 5 Seconds: Restore the factory Settings Pilot Lamp: RUN: Indicates the running status indicator, blinks at an interval of one second during normal operation COM: CAN send indicator light. When data is sent from the CAN port, the blue light is on RS232, 485, 422 Receiving indicator, blue light when data is sent back to RS232, 485, 422 from the device interface CAN: CAN receiving indicator. When data is sent back to CAN from the device interface, the blue indicator is on RS232, 485, 422 send indicator light, there is data from RS232, 485, 422 port when the blue light Operating Environment: Temperature Range: -10 celsius ~70 celsius . Package List: 1 x RS232 485 422 to CAN Converter1 x Bracket1 x Screwdriver
