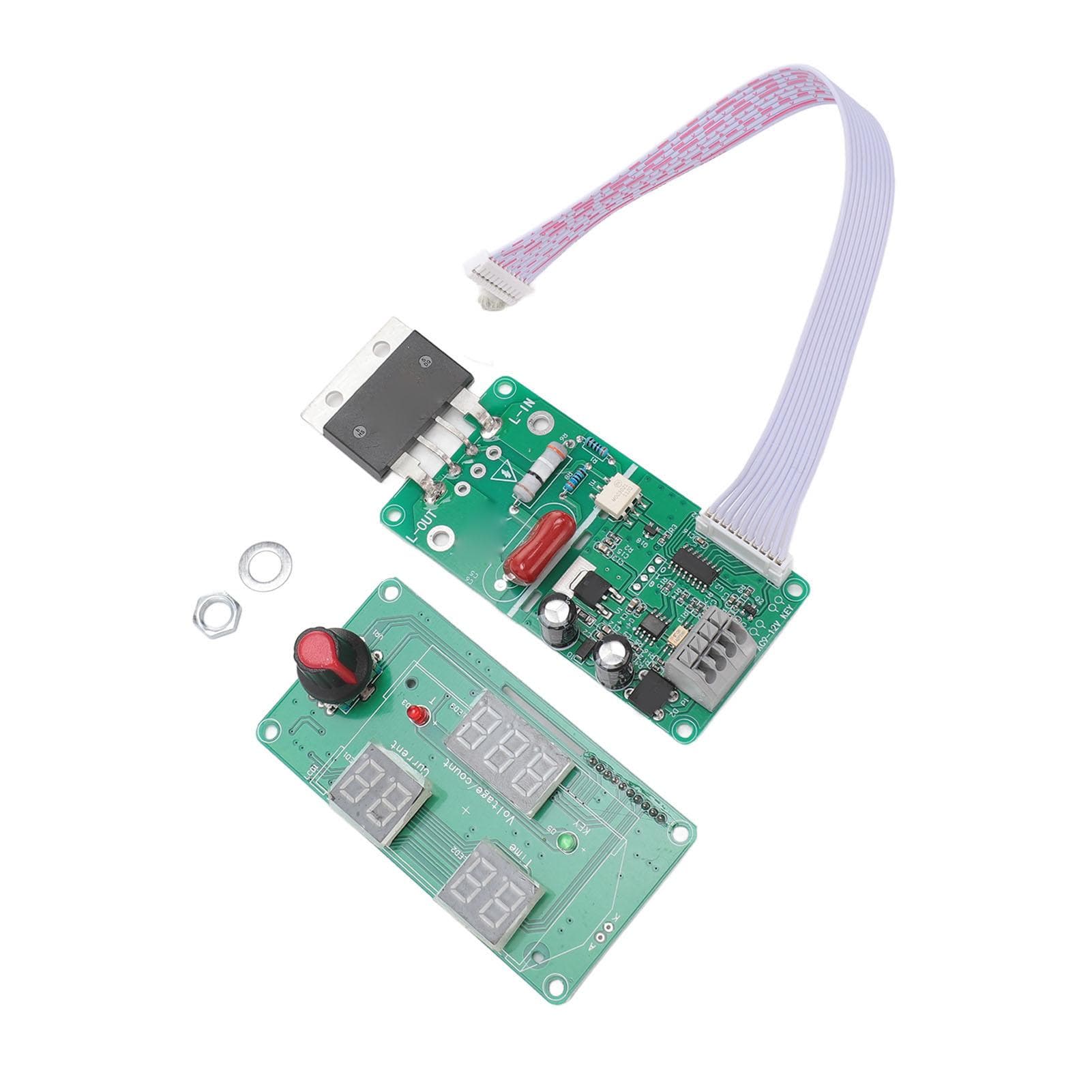

Spot Welder Battery Control Board 9 to 12V Digital Display 0 to 999 Counting Ditital Single Pulse

About this item

• Feature: 1. Designed for Battery Welder DIY: The spot welder control module has been developed for DIY or simple battery welders. Mainly used for single battery or battery pack nickel plated sheet welding, such as 18650 lithium battery nickel plated 0.15 and 0.2mm steel sheet, 500W transformer can be directly welded. Used for welding other battery materials and different thicknesses, such as polymer battery electrodes that are not nickel plated, must be combined with sufficient power transformer to weld. 2. Time Input 0 to 99 Cycle: This digital single pulse encoder supports time input 0 to 99 cycle (1 cycle is 20ms, for example, the adjustment value is 50, that is, the welding time is 1 second). Adjustable welding strength 30percent to 99percent . 3. 0 to 999 Welding Counting Function: This spot welding machine control module features 0 to 999 welding counting function, with 5 groups of sample storage parameters, it can also be stored when outage. Multiple groups of data can be displayed directly. 4. Accurate SCR Phase Shifting: Through opto couplers isolation and strong and week electricity, the reliably designed a reliable 0 crossing detection and voltage detection circuit to ensure accurate SCR phase shifting, compatible with 100A bidirectional SCR rectifier (SCR). Voltage compensation, the compensation output can be automatically adjusted according to the change of the power supply, and the voltage of about 1 second can be displayed when triggered, so that the effective welding heat is consistent with the welding parameters. 5. Trigger Diversity: Power input and external trigger adopt convenient and fast solderless terminals, external trigger can be diversified, such as ordinary switch, pedal switch, external signal source input, etc. The software has anti ock state, only one round from trigger to the end of welding. Specification: Item Type: Spot Welder Control Module Material: Printed Circuit Board Input Voltage: 9-12V (AV Transformer Required) Welding Count: 0 to 999 Counting Function (Press And Hold The Encoder For 3 Seconds To Clear Counting) Welding Strength: 30percent to 99percent Adjustable Time Input: 0 to 99 Cycles (1 Cycle Is 20ms) Bidirectional Thyristor: 100A. Package List: 1 x Spot Welder Motherboard1 x Spot Welder Display Board1 x Gasket1 x Nut
