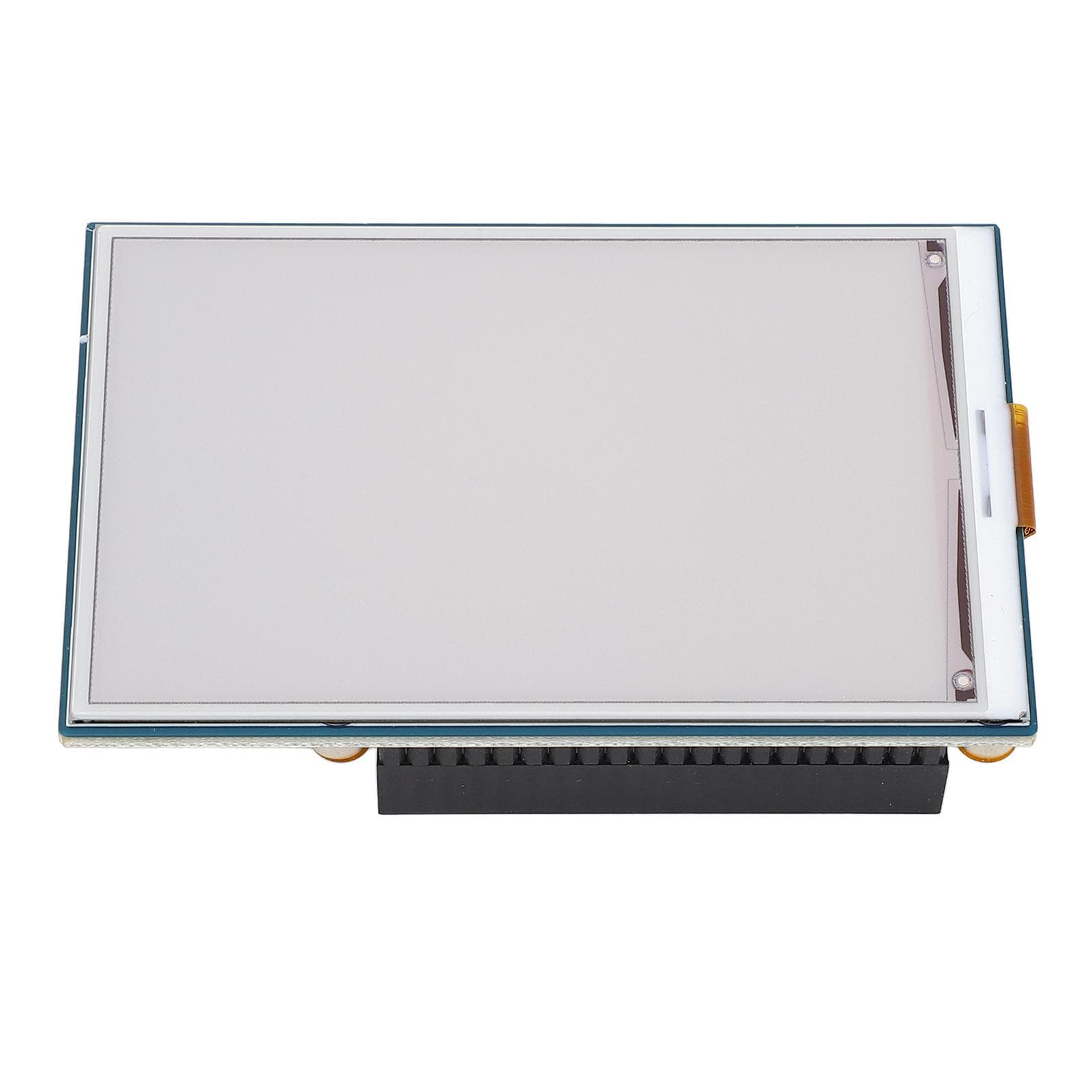

3.52 Inch Electronic Paper Display (B) 360x240 Red Black White Electronic Ink Display for RasPi 5

About this item

• Feature: 1. WIDELY COMPATIBLE: It is designed for use with various for RasPi models, including for Pi 5, 4B, 3B, for Zero, for Zero W, for Zero 2W and for Pico, supporting for Nano, for TX2, for Xavier N, for Orin, for RDK X3. 2. LONG LASTING DISPLAY: Thanks to its unique technology, this display maintains the last screen content even during power outages, eliminating the need for a backlight. 3. LOW POWER CONSUMPTION: Operating with low power consumption, it only draws energy during refresh cycles, extending operational life significantly. 4. EASY INTEGRATION: Equipped with a reserved SPI interface, the electronic ink display can be easily integrated with for STM32, and other main control boards. 5. FLEXIBLE VOLTAGE SUPPORT: Featuring an on board level shifting chip, the electronic paper display is compatible with both 3.3V and 5V interface levels. Specification: Item Type: Electronic Paper Display Material: Electronic Ink Driver Board Size: Approx. 86.5x57mm 3.41x2.24in Display Size: Approx. 74.51x49.67mm 2.93x1.96in Operating Voltage: 3.3V 5V (IO Level Voltage Must Match Supply Voltage) Communicating Interface: SPI Dot Pitch: Approx. 0.207x0.207mm 0.01x0.01in Resolution: 360x240 Display Colors: Black, White, Red Gray Level: 2 Refresh Time: 16 Seconds Refresh Power Consumption: < 25mW (typ.) Sleep Current: < 0.01uA (Close to 0). Package List: 1 x Electronic Paper Display1 x Screw Pack1 x Connection Cable
