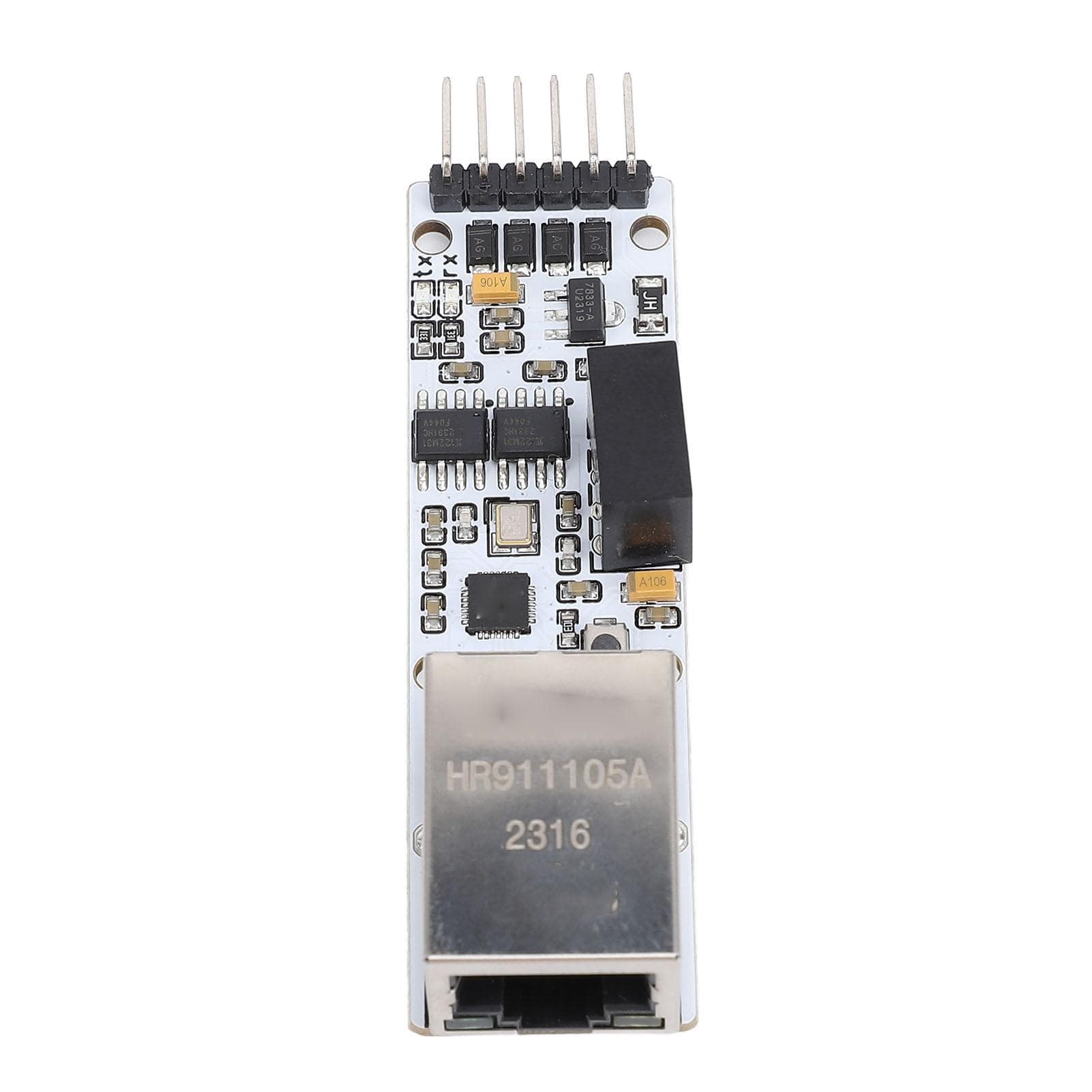

Serial to Ethernet Network Module 4 Mode TTL to RJ45 Port Single Chip Microcomputer Networking

About this item

• Feature: 1. MODEL AND STRUCTURE: Serial to Ethernet network module adopts the original chip for CH9120, and has the Ethernet media transport layer and physical layer (PHY). The operating mode, port, IP and other network parameters of the chip are set through the host software and serial port commands 2. DATA TRANSMISSION: Serial to Ethernet adapter can realize bidirectional transparent transmission of UART interface(6PIN) data and RJ45 network port data. Support 10M, full duplex or half duplex adaptive Ethernet interface, compatible with IEEE 802.3 protocol 3. CONVERSION AND CONNECTION: RJ45 serial to Ethernet adapter supports automatic conversion of MDI or MDIX cables, that is, automatic switchover when any crossover cable is connected. DHCP automatically obtain IP addresses and DNS domain names are supported 4. FOUR MODES: The serial adapter supports TCP CLIENT, TCP SERVER, and UDP CLIENT and UDP SERVER 4 modes. The KEEPALIVE mechanism is supported 5. SUPPRESSION VOLTAGE: RJ45 serial to Ethernet adapter on board TVS(transient voltage suppression tube), can effectively suppress the surge voltage and transient peak voltage in the circuit, protect the rear circuit and equipment 6. PREVENT OVERVOLTAGE AND IMPACT RESISTANT: The single chip microcomputer networking module on board self restoring fuse ensures stable output of current and voltage, prevents over voltage and electrostatic discharge, and has strong impact resistant capability 7. ISOLATE SIGNAL: 4 mode serial to Ethernet network module on board digital isolator, with excellent performance characteristics and reliability, can be isolated for signal, so that the transmitted signal is more stable 8. EFFECTIVE PROTECTING: The Single chip microcomputer networking module is isolated from the on board direct current power supply, providing stable isolation voltage and output short circuit protecting, without additional power supply at the isolation end Specification: Item Type: Serial to Ethernet Network Module Material: PCB Communicating Interface: UART interface(6PIN) Power Supply: Pin header power supply Voltage: 5V Baud Rate Range: 300bps - 150000bps Simple Transparent Mode: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER User Configuration: Configuration software provided IP Acquisition Method: Static IP, DHCP automatic IP acquisition. Package List: 1 x Ethernet Module 1 x Connecting Cable
