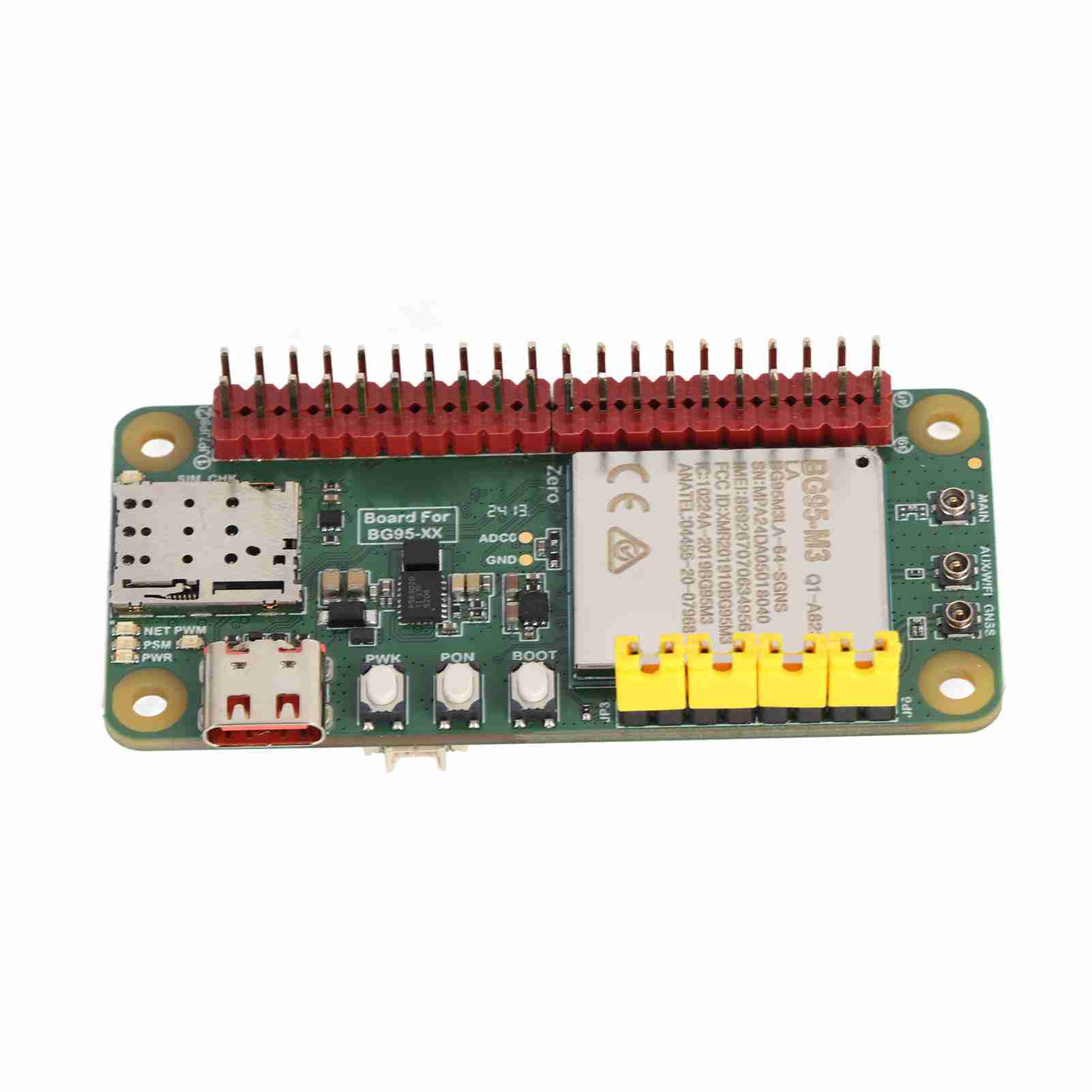

BG95 EVB Development Board Professional LTE EGPRS Telecommunication GNSS Positioning 40PIN GPIO

About this item

• Feature: 1. Onboard: BG95 M3 main module, support LTE Cat M1, LTE Cat NB2, EGPRS network, worldwide; onboard 40PIN GPIO interface, compatible with most of the for RPi HAT expansion boards. 2. Support Protocols: BG95 EVB development board supports PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, MQTT, LwM2M, CoAP, IPv6 and other protocols. 3. Support Function: GNSS positioning (GPS, for GLONASS, for BDS, for Galileo, for QZSS); Onboard 5 LEDs, easy to check the module running status. 4. Onboard Nano SIM Card Slot: Supports 1.8V SIM card, designed by the side of the board, easy to access and remove the SIM card; Onboard MIPI interface, supports MIPI screen, compatible with for RPi peripherals. 5. Camera Interface: Support customized SPI camera, support for 0.3MP; provide for QPYcom, for Thonny IDE, for VSCode and other plug in tools, easy to learn and develop. Specification: Item Type: BG95 EVB Development Board Material: PCB Application Area: Global LTE FDD: Cat M1:B1 B2 B3 B4 B5 B8 B12 B13 B18,B19 B20 B25 B26 B27 B28 B66 B85 Cat NB2: B1 B2 B3 B4 B5 B8 B12 B13,B18 B19 B20 B25 B28 B66 B71 B85 LTE TDD: Not Supported GSM GPRS EDGE: 850, 900, 1800, 1900 MHz GNSS: GPS, for GLONASS, for BDS, for Galileo, for QZSS Bluetooth: Not Supported Wireless Fidelity Scan: Not Supported CAT 1: Not Supported NBIoT: Cat NB2: 127 Kbps Downlink; 158.5 Kbps Uplink Cat; NB1: 32 Kbps Downlink; 70 Kbps Uplink Cat M: Downlink 588 Kbps; Uplink 1119 Kbps EDGE: Downlink 296 Kbps; Uplink 236.8 Kbps GPRS: Downstream 107 Kbps; Upstream 85.6 Kbps Telecommunication Protocols: PPP, TCP, UDP, SSL, TLS, FTP(S), HTTP(S), NITZ, MQTT, LwM2M, CoAP, IPv6 SIM Card : Nano SIM Card (1.8V Only) (Not Included) Indicator Light: SIM_CHK: SIM_CHK Indicator Lights up When a Slot SIM Card is Present NET: Network Indicator PSM: Sleep Indicator PWM: PWM Function Indicator PWR: Power Indicator Key Switch: PWK: Power On off Control Button PON: PSM Wake up Button BOOT: Forced Download Button USB ON OFF: USB Detection Switch Antennae Interface: LTE Main Antennae, Diversity Antennae, GNSS Antennae. Package List: 1 x Development Board 1 x Connecting Cable 1 x Antennae 1 x USB Cable
