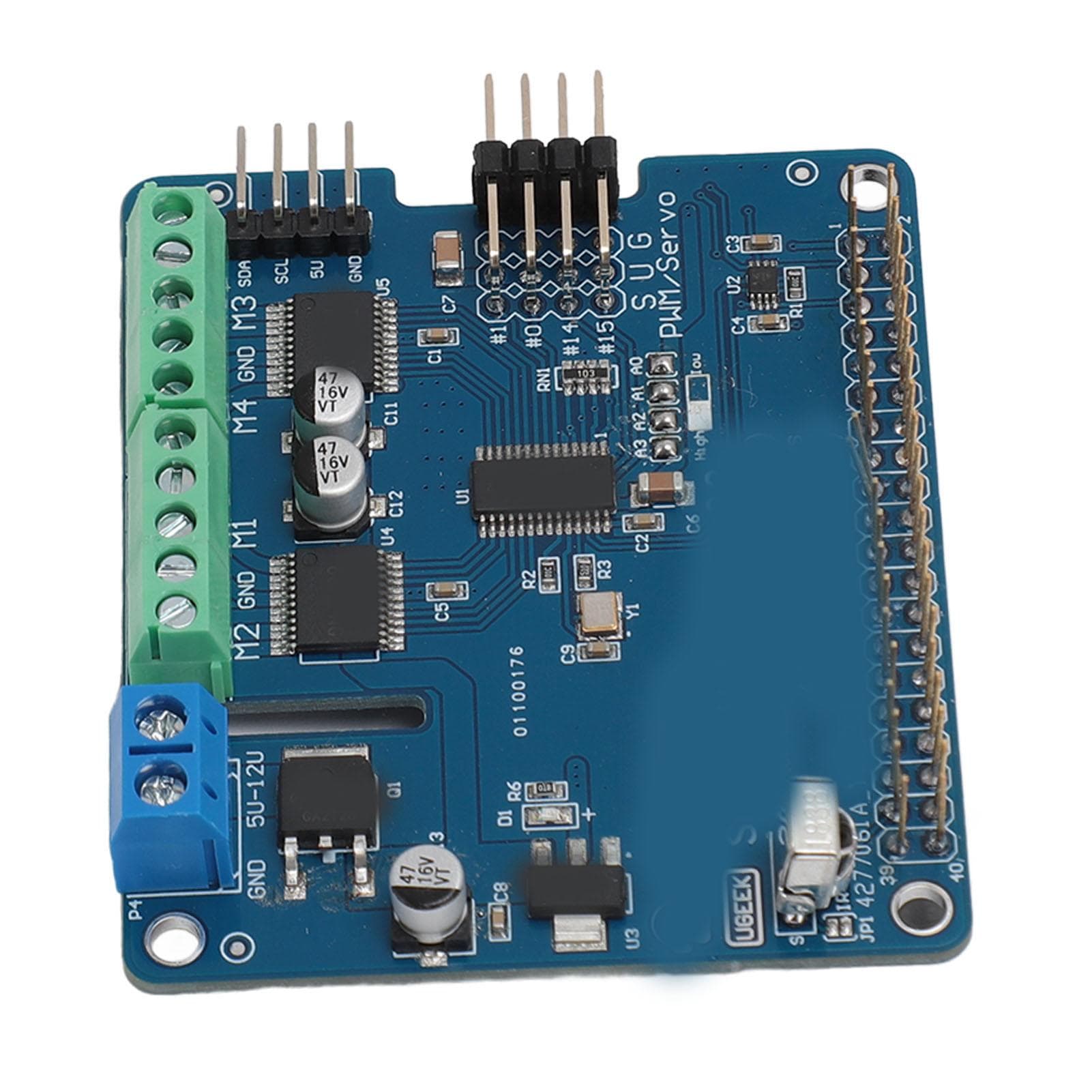

Robot Expansion Board for RasPi I2C Interface 5V to 12V 1.6KHz PWM Precise Stable Output Robot

About this item

• Feature: 1. Designed for RasPi: This robot expansion board is designed for RasPi 3B2BB+A+, and data input and output can be completed via I2C bus. 2. I2C Interface: This robot motor control board has I2C interface compatible with 5V level, can be connected to other development board control; One I2C interface, applicable to various sensors, expand a variety of applications. 3. 16 Channel PWM Output: The address of the expansion board is determined by 4 address pins, and maximum of 16 expansion boards are used simultaneously. Support 16 channel PWM output, and it can control 16 channel steering gear or LED lights. 4. 12 Bit Resolution: This servo motor driver board adopts 12 bit resolution, adjustable PWM frequency up to 1.6KHz, configurable push pull or open drain output. 5. Multi Function: This motor drive controller board for RasPi supports 4 way steering gear interface, 3P standard interface, easy to connect the steering gear and LED lights. Support 2 channel 6V to 12V stepper motors. Support 4 6V to 12V gear motor. Support infrared receiving function, convenient infrared control. Specification: Item Type: Robot Expansion Board for RasPi Material: Printed Circuit Board Operating Voltage: 5V to 12V Interface: I2C Interface Explanation: 4 Way Actuator Interface (Type 0, Type 1, Type 14, Type 15) 4 Way Motor Interface (M1,M2,M3,M4) 2 Way Stepper Motor Interface (M1+M2,M3+M4) I2C Port Interface. Package List: 1 x Robot Expansion Board for RasPi
