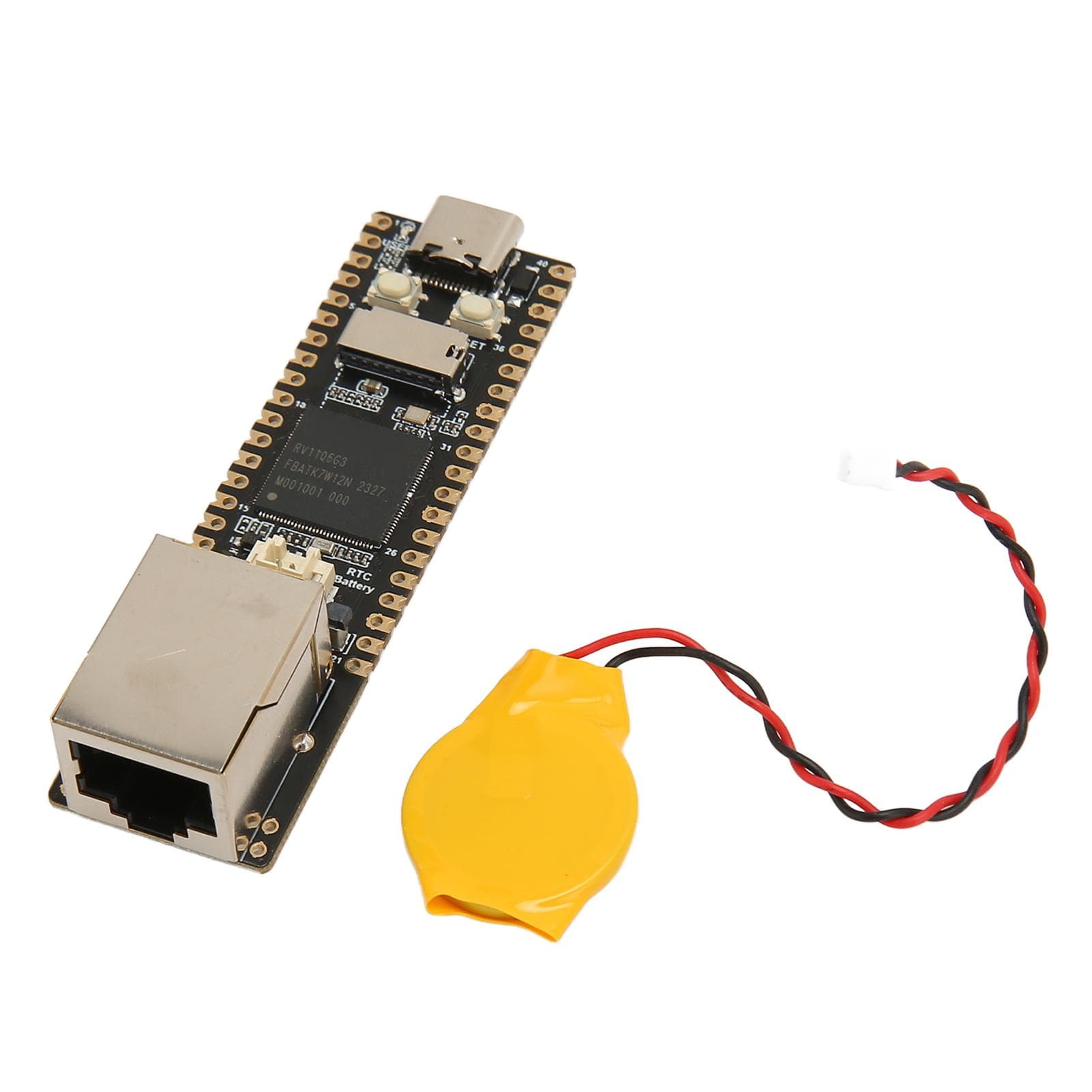

RV1106 for Pico for Linux Micro Development Board Highly Integrated RISC V A7 Micro Development

About this item

• Feature: 1. UP TO 0.5TOPS: The RISC V A7 micro development board is based on a single core for ARM Cortex A7 32bit core with integrated NEON and FPU, and a built in NPU supporting INT4 INT8 INT16 mixed operations with up to 0.5TOPs of computational power. 2. PROFESSIONAL DESIGN: Micro development boards are highly integrated IPC visual processor SoCs dedicated to AI related applications. 3. HARDWARE BASED ISP: The RV1106 development board has a hardware based ISP that supports a variety of algorithmic gas pedals, such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, de fogging, gamma correction, and more. 4. DRAM DDR2: The Micro development board has built in 16 bit DRAM DDR2 to sustain demanding memory bandwidth, as well as built in POR, o codec and PHY. 5. WIDE RANGE OF APPLICATIONS: The RV1106 micro development board is suitable for smart home devices, industrial automation devices, robots and drones, smart surveillance devices, smart transportation devices, and smart medical devices. Specification: Item Type: RV1106 Micro Development Board Material: PCB Processor: for Cortex A7 1.2GHz Neural Network Processor (NPU): 0.5TOPS, Support for int4, in8, int16 Image Processor (ISP): Maximum Input 5M 30fps Memory: 256MB DDR3L USB: USB 2.0 HostDevice Camera Interface: MIPI CSI 2 lane GPIO: 26 GPIO Pins Network Port: 10100M Ethernet Controller and Embedded PHY Default Storage Media: SPI NAND FLASH(256MB) Battery Specification: CR2025x1150mAh (Ship with Inbuilt Battery). Package List: 1 x RV1106 Micro Development Board1 x Button Cell
