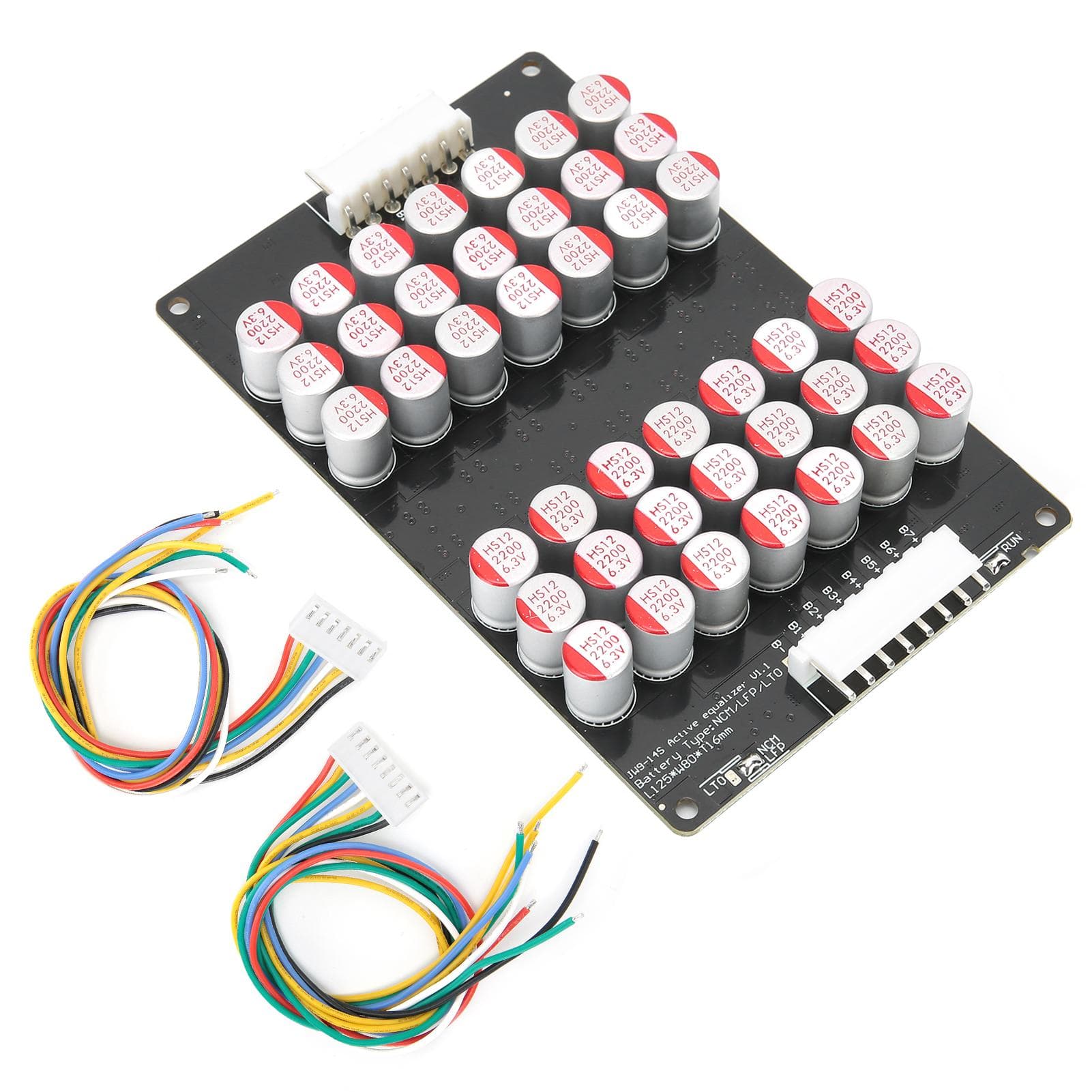

3 Lithium Batteries 3S‑14 Balancer Battery Active Equalizer for Ternary LithiumIronLithium

About this item

• Feature: 1. The capacitor transfers the charge, equalizer board connected to the battery, and the equalization is started, using the original new ultra‑low internal resistance MOS, 2OZ copper thick for PCB. 2. The balanced current is 0‑5.5A, the more balanced the battery is, the smaller the current will be. It has a manual sleep switch, the sleep current mode is less than 0.1mA, and the balancing voltage accuracy is within 5mV. 3. The static current is about 12mA. The recommended battery capacity is 60‑300AH. 4. With undervoltage sleep protection function, when the voltage is lower than 3V and standby power consumption is less than 0.1mA, the voltage will automatically stop. 5. Compatible with ternary lithium, lithium iron, lithium titanate. Specification: Condition: 100percent Brand New Item Type: Battery Balancer Material: for PCB Board Color: As Pictures Shown Weight: Approx. 219g7.7oz Equalization Mode: Capacitor (Full Set) Equalizer Operating Voltage: 1.8V-4.5V Undervoltage Sleep Value: Can Be Selected from 2.0V 3.0V 3.7V, Supporting Lithium Ternary, Lithium Iron Phosphate, Lithium Titanate Balanced Accuracy: Less Than 5mv Balanced Current: 0.1V 1A 0.2V 2A. the Greater the Voltage Difference, the Greater the Current Maximum Equilibrium Current 6A Balanced Static Power Consumption: 12mA Applicable Battery Capacity: 60Ah-300Ah. Package List: 1 x Battery Balancer 2 x Connecting Line
