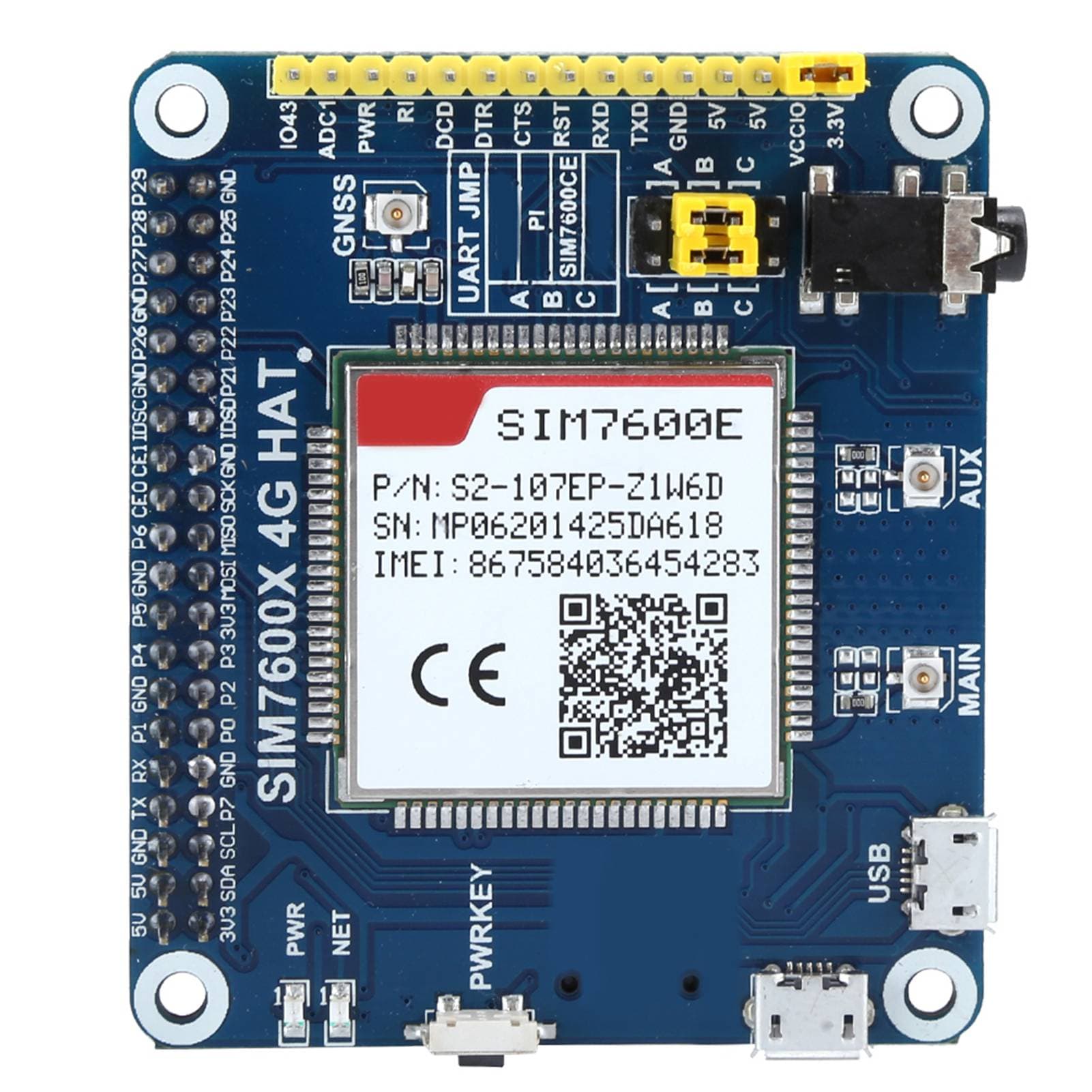

SIM7600E Module Support for LTE Cat‑13G2G Communication Professional GNSS Positioning

About this item

• Feature: 1. Support dialing surf internetphone callshort messageTCPUDPDTMFHTTPFTP other function. 2. Support for GPSBeiDouGlonassLBS base station positioning. 3. Onboard USB interface, can used to test AT order, obtain GPS positioning information, etc. 4. Onboard CP2102USB to UART chip, convenient for serial port debugging. 5. Lead to module for UART and other control interface, convenient access for STM32 and other main control panel. 6. Onboard SIM card slot, support 1.8V and 3VSIM card. Onboard storage card slot, can used to store files, SMS and other data. 7. Onboard o interface and o decoding chip, can used for telephone and other voice operation. Onboard 2 LED indicator light, convenient to view running status of module. 8. Onboard level switching circuit, can through wire jumper switching 3.3V5V operation level. Support baud rate range:300bps~4Mbps(default of 115200bps) 9. Support automatic identification baud rate(9600bps~115200bps). Support AT order control(base on 3GPPTS 27.007,27.005 and V.25TER order set). Support SIM application tool kit: SAT Grade 3,GSM11.14Release99,USAT. Specification: Condition: 100percent Brand New Item Type: Module Material: Printed Circuit Board Color: As Pictures Shown LTE Cat-13G2G Parameter LTE Cat-1: LTE-TDD:B38B40B41, LTE-FDD:B1B3B5B7B8B20 3G: UMTSHSPA+:B1B5B8 2G: GSMGPRSEDGE:9001800 MHz GNSS Parameter Receiving: 16 Channel, CA Coding Sensitivity: -159 dBm(GPS)-158 dBm(GLONASS)-159dBm(BeiDou), Cold Start:-148dBm First Positioning Time(Open Ground): Cold Start:<35s, Hot Start:<1s Message and o Parameter Short Message(SMS)Support Type:MT､MO､CB､Text､PDU Short Message Storage Device:For USIM CardME(Default) o Characteristics: Support Aftersound Eliminate Function Support Noise Reduction Function Other Parameter Power Supply Voltage: 5V Working Voltage: 5V3.3V(CAN Through Wire Jumper Switching) Working Temperature: -30 celsius ~80 celsius Storage Temperature: -45 celsius ~90 celsius Weight: Approx. 222g Size: Approx. 56.21*65.15mm2.21x2.56inch . Package List: 1 x SIM7600E LTE Cat-1 HAT1 x LTE Antenna1 x GPS External Antenna(B)2 x USB-A to Micro-B Cable2 x Connecting Cable1 x Screw Kit
