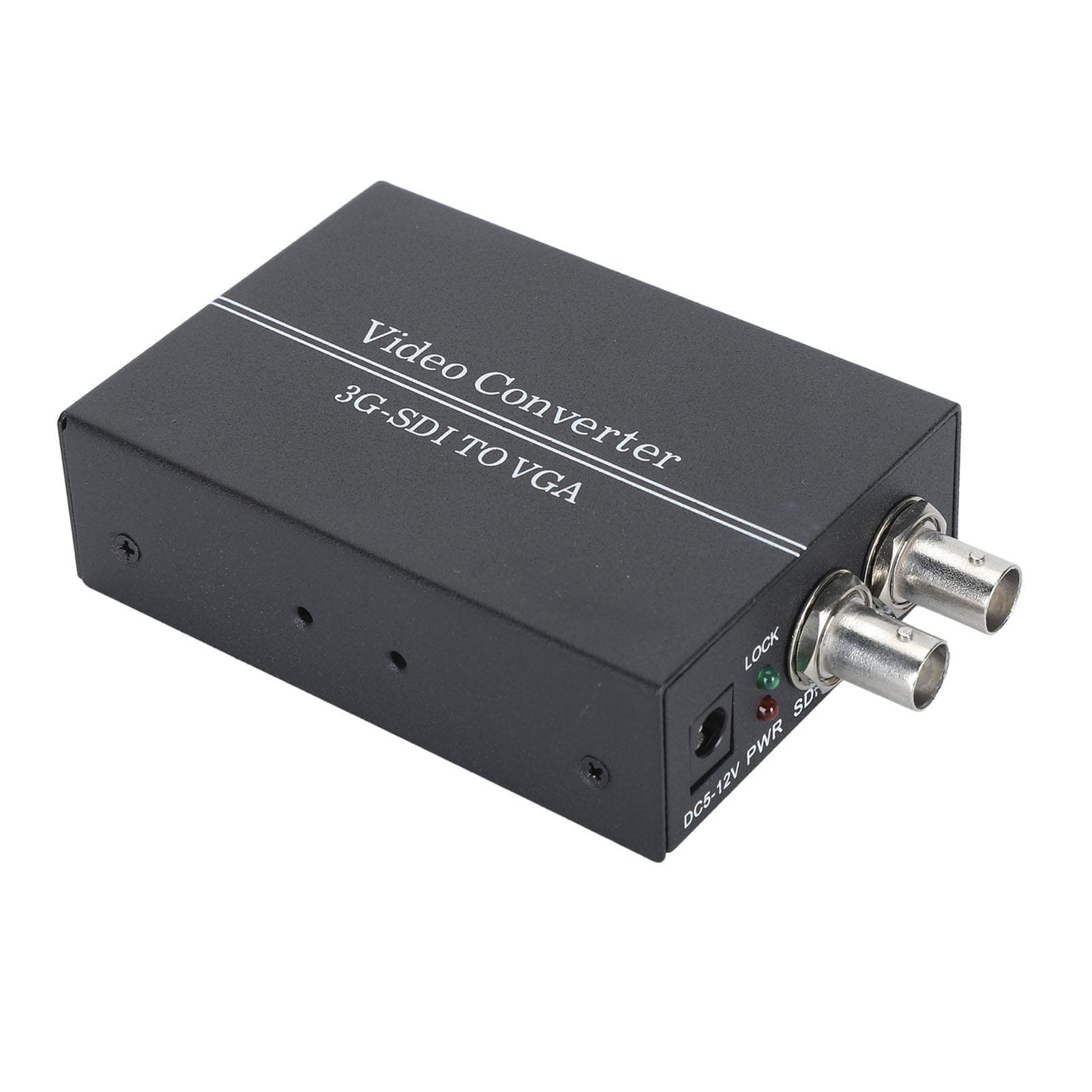

SDI to VGA Sound Converter Support 1080P SD HD 3G SDI to VGA Adapter with 3.5mm Output for VGA SDI US Plug

About this item

• Feature: 1. SDI Signal Conversion: Converts SDI (SD SDI, HD SDI, 3G SDI) signals to VGA signals, also includes SDI (HD SDI, SD SDI, 3G SDI) output ports, supports input and output of HD SDI signals, easy to use, high stability and reliability. 2. Input And Output Ports: Convert 3G, HD, SD SDI to VGA and sound with SDI signal loop out interface. Input port: 1 x SDI Port (BNC); Output Port: 1 x SDI port (BNC); 1 x VGA port; 1 x 3.5mm headphone jack. 3. Transmission Distance: SD SDI signals support up to 300m signal transmission distance, HD SDI signals support 200m, 3G SDI signals support up to 100m, can be widely used in SDI broadcasting room, CCTV security system and training exhibition hall, etc. 4. Resolution: SDI input, output resolution: 480i, 576i, 720p5060, 1080i50i60, 1080p 23.98242529.97305060; VGA output resolution: 800x600p60,1024x768p60,1280x720p60, 1280x1024p60, 1360x768p60,1680x1050p60, 1920x1080P60. 5. Durable And Practical: The SDI to VGA sound converter is made of aluminum alloy case, durable, long life and better heat dissipation. Allows you to view the SDI source on VGA port, SDI port display devices with sound output, picture and sound synchronization. Specification: Item Type: SDI to VGA Sound Converter Material: Aluminum Alloy Input Port: 1 x SDI Port (BNC) Output Ports: 1 x SDI Port (BNC), 1 x VGA Port, 1 x 3.5mm Headphone Jack SDI Formats: 3G SDI: SMPTE 424M, HD SDI: SMPTE 292M, SD SDI: SMPTE 259M SDI Transmission Rates: 2.970Gbits, 1.485Gbits, 270Mbits SDI Input, Output Resolutions: 480i, 576i, 720p5060, 1080i50i60, 1080p 23.98242529.97305060 SDI Transmission Distance and Resistance: SD SDI: Approx. 250-300m 820.21-984.25ft, 1694A Coaxial Cables, 75 Ohm HD SDI: Approx. 150-200m 492.13-656.17ft, 1694A Coaxial Cables, 75 Ohm 3G SDI: Approx. 80-100m 262.47-328.08ft, 1694A Coaxial Cables, 75 Ohm VGA Output Resolutions: 800x600p60, 1024x768p60, 1280x720p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1920x1080P60 Guard: Contact Discharge: +-4KV, Air Discharge: +-8KV. Package List: 1 x SDI to VGA Sound Converter1 x Power Adapter 1 x User Manual Note: Manual measurement, please allow some errors.
