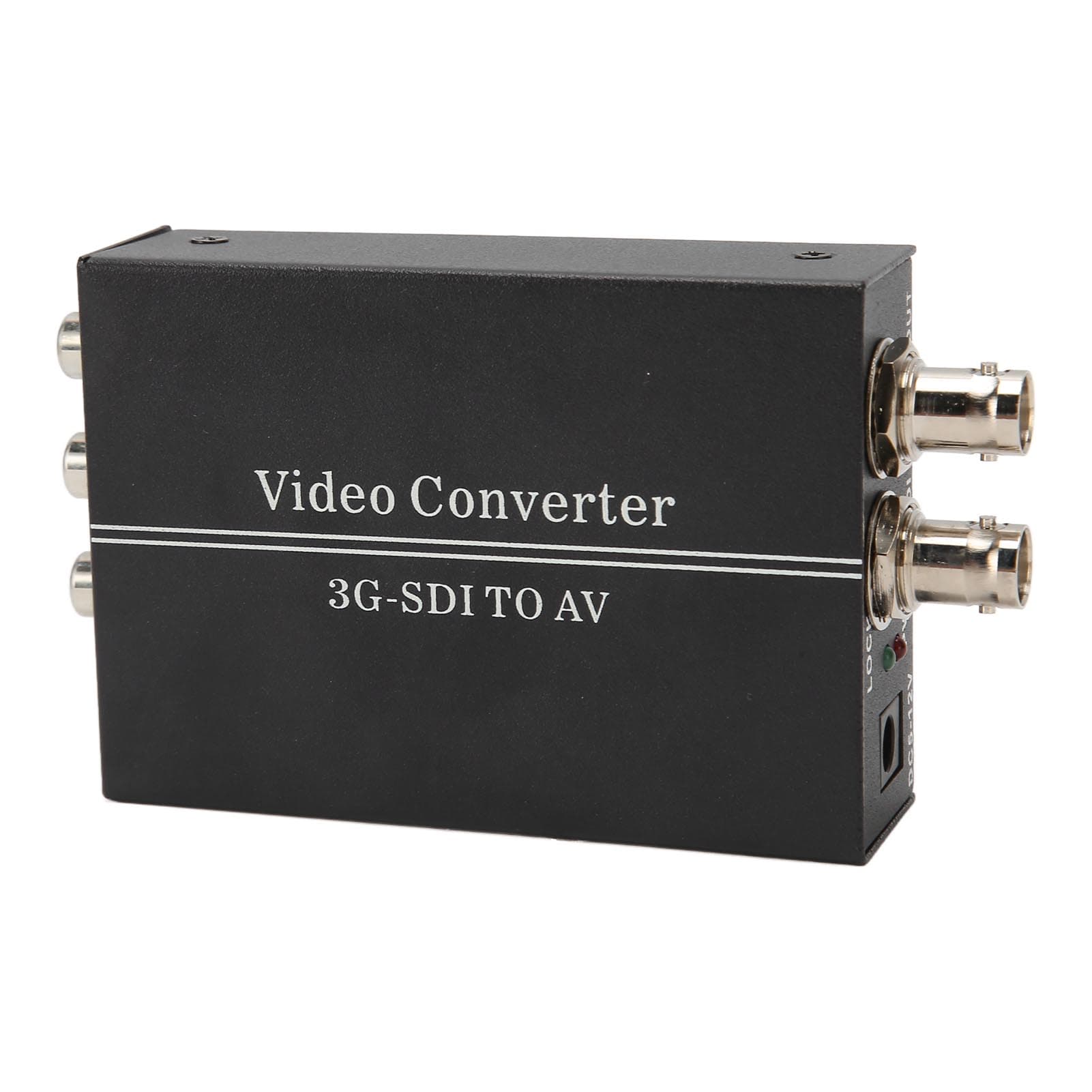

3G SDI to AV Converter Lossless SD HD 3G SDI to RCA Adapter with SDI Signal Loopout for TV Monitor EU Plug
Honor Electronics|SKU 2610230253912vdfdswv
About this item
- Feature: 1. [Input And Output] Convert 3G HD SD SDI to composite RCA video and L, R with SDI signal loop out interface. 1 SDI (SD, HD, 3G SDI) input port, 1 BNC (SD, HD, 3G SDI), 3 RCA (CVBS, L, R) output port. 2. [Long Distance] SD SDI signal supports up to 300m984ft signal transmission distance, HD SDI signal supports 200m656ft, 3G SDI signal supports up to 100m328ft. supports automatic video mode detection (3G, HD, SD). 3. [Resolution] 3G SDI to AV converter, CVBS output resolution is PAL.NTSC M (optional). SDI input resolution is 3G: 1080p24, 25, 30, 50, 60, HD: 720p50, 60, 1080i 50, 60, SD: 480i60, 576i50. 4. [Transmission Rate] Supports operation at 2.970Gbits, 2.970, 1.001Gbits, 1.485Gbits and 1.485, 1.001Gbit. High speed transmission without lag. Converts from SMPTE 425MВ to class A 1080p 50, 60 4: 2: 2, 10 bit. 5. [Excellent Sound Quality] 3G SDI to AV adapter, supports 2CH analog sound output, it also supports L, R analog sound output and can be connected to a sound system for perfect music. 6. [Lossless] The SDI to AV (CVBS) converter allows SD HD 3G SDI signals to be displayed on regular TVs while ensuring a high bit rate of 2.970Gbits, allowing you to transfer signals quickly without any loss. Specification: Item Type: 3G SDI To AV Converter Material: Aluminum Alloy Output Port: 1 x SDI (SD, HD, 3G SDI), 3 x RCA (CVBS, L, R) SMPTE Standard: 425M Level A and B, 424M, 292M, 259M C SDI Transmission Rate: 2.970Gbits, 2.970, 1.001Gbits, 1.485Gbits, 1.485, 1.001Gbits SD: 480i60, 576i50; HD: 720p5060, 1080i 5060; 3G: 1080p24, 25, 30, 50, 60 Power Supply: DC 5-12V ESD Protection Body Model: +- 8KV (Air Gap Discharge), +- 4KV (Contact Discharge) Power Consumption (Maximum): 2W. Package List: 1 x 3G SDI to AV Converter1 x Power Adapter 1 x Instruction Manual Note: 1. Use the for Belden 1694A test cable. Operating distances may vary if used with other types of cables.2. Manual measurement, please allow some errors.
