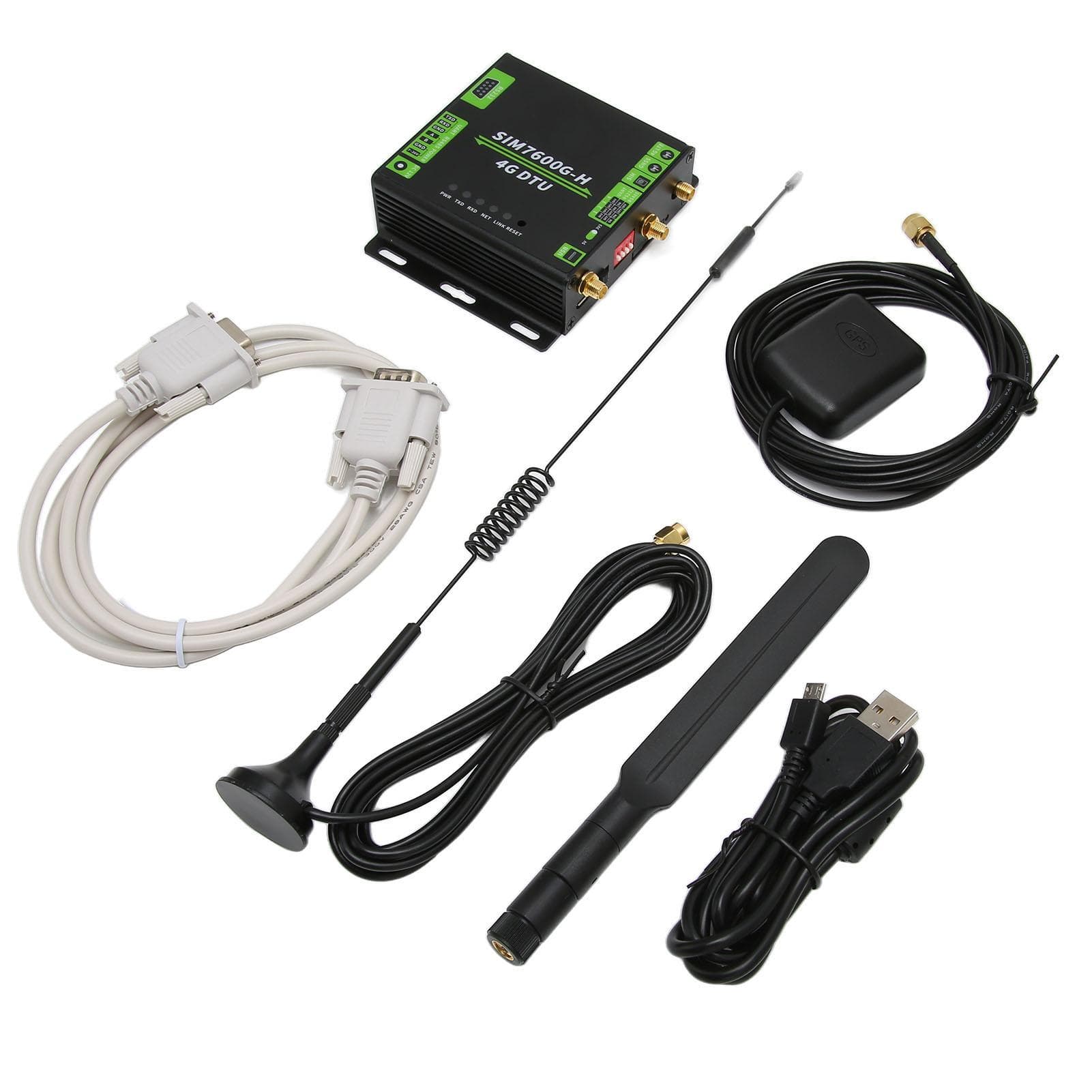

SIM7600G H 4G DTU Module LTE Global Universal Industrial Grade 4G DTU Module Board for USB UART US Plug

About this item

• Feature: 1. PROFESSIONAL DESIGN: SIM7600G H 4G DTU module is designed for industrial applications and can be directly embedded or developed for secondary use. Based on SM7600G H communication module, it supports 4G 3G 2G networks in global frequency bands. 2. INTERFACE SUPPORT: SIM7600G H 4G DTU supports USB UART interface communication and TCP UDP FTP FTPS HTTP HTTPS communication protocols. Support USB to 4G and UART RS232 RS485 to 4G networking communication. 3. HIGH PERFORMANCE: Industrial grade SIM7600G H 4G DTU supports GPS, BeiDou, Glonass, GAL LEO, QZSS, LBS base station positioning. On board STM8 microcontroller, which can be used as hardware watchdog and automatic power off and restart when DTU works abnormally. 4. CONVENIENT POWER SUPPLY: 4G DTU module board supports 7‑36V wide voltage range power supply, which is convenient for power supply in industrial applications, and various protection circuits on board, such as anti static, anti surge, etc., for stable and safe communication. 5. SUPPORT AT COMMAND CONTROL: SIM7600G H 4G communication module supports baud rate range: 300bps 4Mbps (default is 115200bps), supports AT command control (based on 3 GPP TS27.007, 27.005 and V25TER command set). Specification: Item Type: SIM7600G H 4G DTU Module Material: Aluminum Alloy Voltage: 100-240V Operating Frequency Band: 4G: LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 LTE TDD: B34, B38, B39, B40, B41 3G: UMTS HSDPA HSPA+: B1, B2, B4, B5, B6, B8, B19 2G: GSM GPRS EDGE: 850, 900, 1800, 1900 MHZ GNSS: GPS, Beidou, GLONASS, GALILEO, QZSS Applicable Area: Global Data Transmission: 4G (LTECat 4): 150mbps (DL) 50mbps (UL) 3G (HSPA+): 42mbps (DL) 5.76mbps(UL) 2G (GPRS): 85.6mbps (DL) 85.6mbps(UL) Software Features: Communication Protocols: TCP, IP, IPV4, IPV6, Multi PDP, FTP, FTPS, HTTP, HTTPS, DNS (Send Receive Control Via AT Command, Module Open for Linux SDK Available For Secondary Development) Support System: For Windows for Linux, Etc. Hardware Description: RS232: Interface Form: DB9 Female, Interface Protection: TVS Tube Protection, Surge And Static Protection RS485: Interface Form: Terminal Block (A, B), Interface Protection: 600W Thunder Protection, Surge And 15KV Static Protection (120R Balanced Resistance Pads Are Reserved) TTL (UART): Working Level: 3.3V Or 5V, Interface Form: Terminal Block (TXD, RXD, GND) Serial Communication Baud Rate: Support 300bps-921600bps,Default Is 115200bps USB Interface: Operating Level: 5V Interface Form: Micro USB Interface Protection: Provide ESD Protection Diode, Electrostatic Discharge Protection Interface Use: Parameter Configuration, Dial Up Internet, Firmware Upgrade Power Supply Interface: Interface Form: 7-36V Terminal Or DC12V Interface Interface Protection: Schottky Diode Protection, Anti Reverse Connection Protection Hardware Protection: Built In MCU, Hardware Watchdog Function, To Ensure That No Downtime, Industrial Grade Aluminum Alloy Shell Indicator Lights: PWR (Power), RXD TXD (Serial Transceiver), NET (Network), LNK (Customizable) Push Button: Reset Button Antenna Interface: MAIN LTE, AUX LTE, GNSS. Package List: 1 x SIM7600G H 4G DTU Module1 x Power Cord1 x VGA Cable3 x Antenna Line1 x USB Cable
