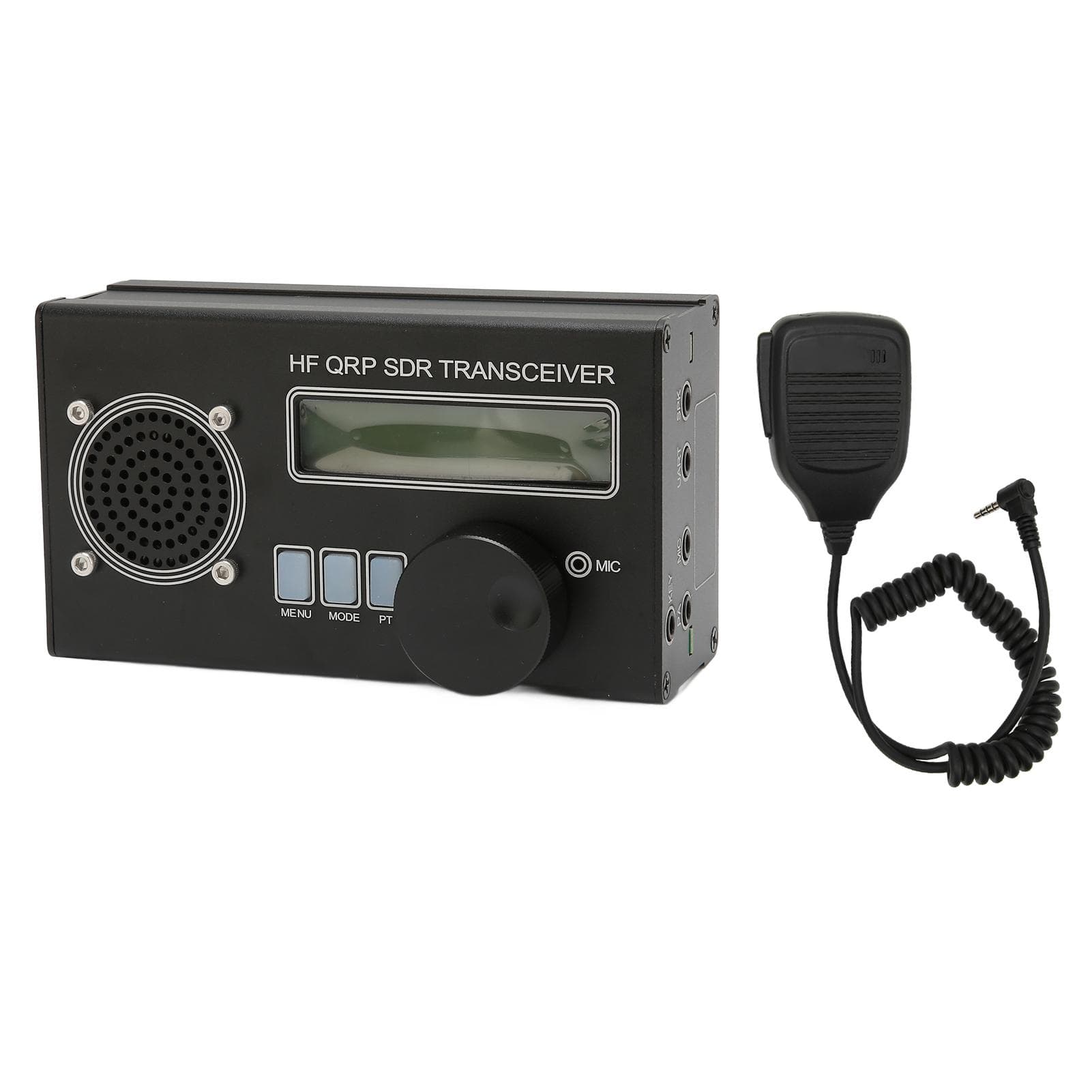

8 Band Transceiver Support USB LSB CW AM FM 5W Mobile Transceiver with Microphone US Plug

About this item

• Feature: 1. Durable: Mobile Transceiver adopts osmo series launch tube, which is durable; can be used by connecting antenna (seat m). 3 independent switchable analog pre receiver faders (0dB, ‑13dB, ‑20dB, ‑33dB, ‑53dB, ‑60dB, ‑73dB). 2. Practical: Open source firmware, integrated for ide; allows experimentation, new functions can be added, and contributions can be shared through for github, software complexity: 2000 lines of code. 3. Easy to Operate: Software based for vox can be used as a fast complete hack (qsk and semi qsk operation), or assist running in digital mode (no cat or ptt interface) for rx tx switching, external with delayed tx ptt output pa control. 4. Lightweight Transceiver: Thanks to the eer level and transmitter, it is energy efficient (no bulky heatsink required) and simple design (no complex balanced linear power amplifier is required). 5. Entirely Digital and Software Based: Sampling the microphone input and reconstructing the ssb signal by controlling the phase of the for pll si5351 (via small i2c frequency changes over 800kbits) and the amplitude of the pa (pwm by pwm). Key shaping circuit pa) 6. Universal: This is probably the most economical and easiest to build standalone sdr ssb transceiver. Greater simplification simplifies the original qcx circuit (ie, 50percent fewer mounting components, 50percent fewer mounting components, no complicated transformer windings, no wiring procedures), and is more versatile. Specification: Item Type: 8 Band Transceiver Material: Aluminum Alloy Full Mode Support: USB, LSB, CW, AM, FM Frequency Range: 1000-30000MHz dsp Filter: Password 4000, 2500, 1700, 500, 200, 100, 50Hz dsp Functions: Automatic Gain Control (AGC), Noise Reduction (NR), Voice Trigger, Voice Trigger Xmit (for VOX), Attenuator RX Attenuator (ATT), Tx Noise Gate, TX Driver Control, Volume Control, dbms Meter Sideband Reverse Carrier Suppression Ssb: Better Than -45dbc, Imd3 (Dual Tone) -33dbc, Receive: Better Than -50dbc Multi Band Support, Continuously Adjustable in 160m-10m Band (and 20KHz.. 99MHz Performance Loss) Mds Receiver Noise Level: -135 dbm (200Hz bw) to 28MHz Pre Receiver Selectivity: Steep Tuning Frequency -45dB10 Roll-off-2KHz Dynamic Blocking Range: 20KHz Offset 123dB, 2khz Offset 78dB Cw Decoder: Direct Keyboardiambic-ab Vfo ab Script and Split: Switch the Corresponding Relay Band Filter Through I2c Support: Cat (subset of ts480), Can Stream Sound, Keystrokes and Display Text Through Cat Charging: Built in Lithium Battery Charging Port, Only Use the Supplied Charger! Other Chargers Are Prohibited! Switch: off to Turn Off. Bat: Built in Battery Powered. 13.8: External Power Supply DC13.8v3a: External Power Interface Key: Automatically Connect the Key Body (a, B, Single Key) Pa: External Power Amplifier, ptt Signal Microphone: External Microphone Interface Uart: Serial Communication Port (Compatible with Osm) Spk: External Speaker Voltage: 100-240V Plug: US Plug Built in Polymer Lithium Battery: 6000mAh. Package List: 1 x 8 Band Transceiver1 x Microphone1 x Power Cord1 x Manual
