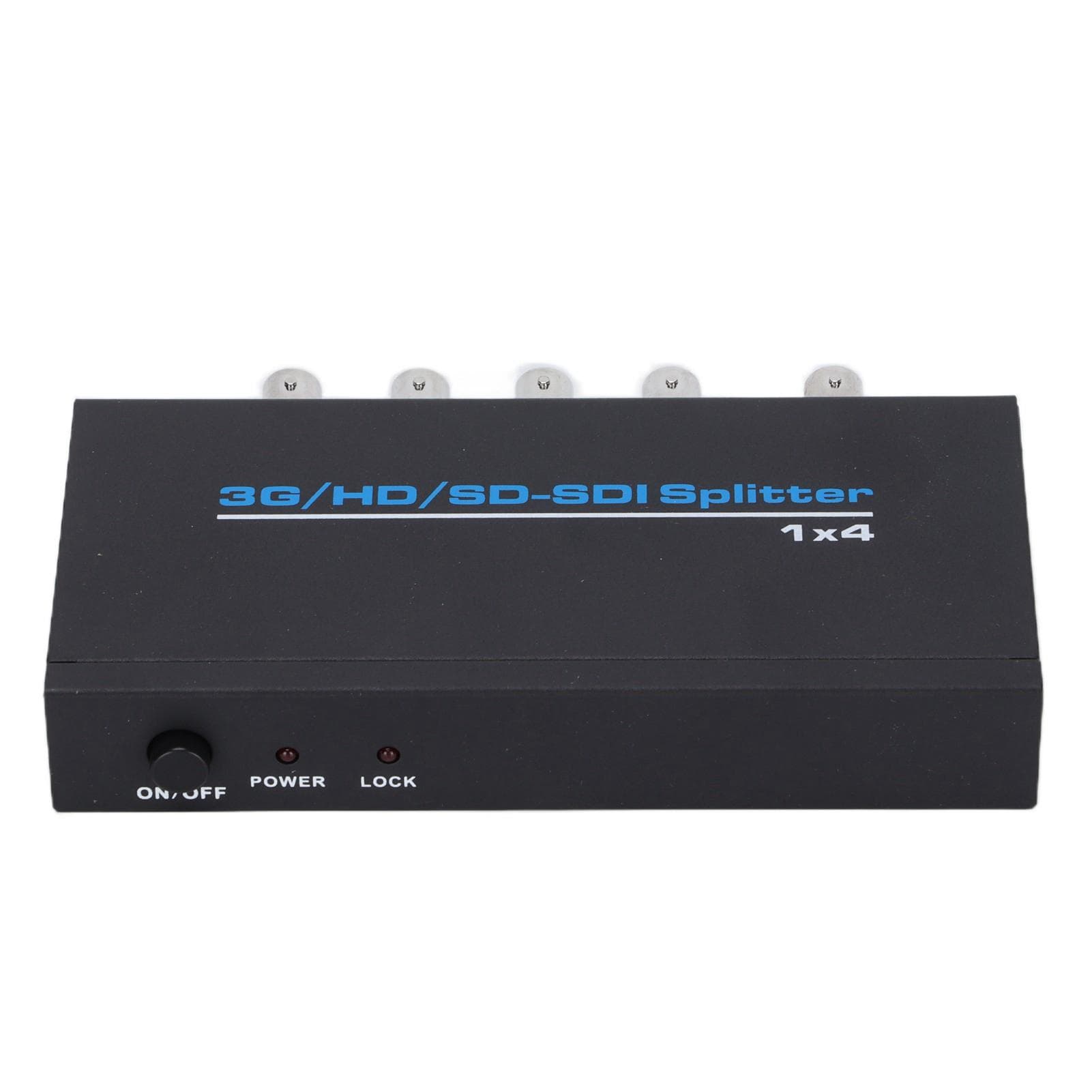

SDI 1 Input 4 Outputs Splitter Professional Signal Split High Resolution SDI Distribution Amplifier UK Plug

About this item

• Feature: 1. The SDI distribution amplifier supports splitting 1SDI input signal into 4 SDI output. 2. Support storage card‑SDI (270MBs), HD‑SDI (1.485Gbs), 3G‑SDI (2.97Gbs) video format. 3. Built in cable equalization, clock recovery and driver, support resolution up to 1920*1080 at 60 Hz. 4. Supports signal input and output distances of up to 300m for storage card signals, 200m for HD signals and 100m for 3G signals. 5. The chip adopts for GENNUM brand, the most professional SDI receiving chip, suitable for engineering grade SDI distributor. Specification: Item Type: SDI 1x4 Splitter Material: Iron Shell Frequency Bandwidth: 3Gbps SDI Distributor Output Port: BNC Female Output Port x 4 ESD Protection Human Body Model: +-8KV (Air Gap Discharge) +-4KV (Contact Discharge) Working Temperature: 0 degrees C~40 degrees C 32 degrees F~104 degrees F Storage Temperature: -20 degrees C~60 degrees C -4 degrees F~140 degrees F Humidity: 20~90percent RH (Non-Condensing). Package List: 1 x Distributor 1 x Manual 1 x Power Adapter
