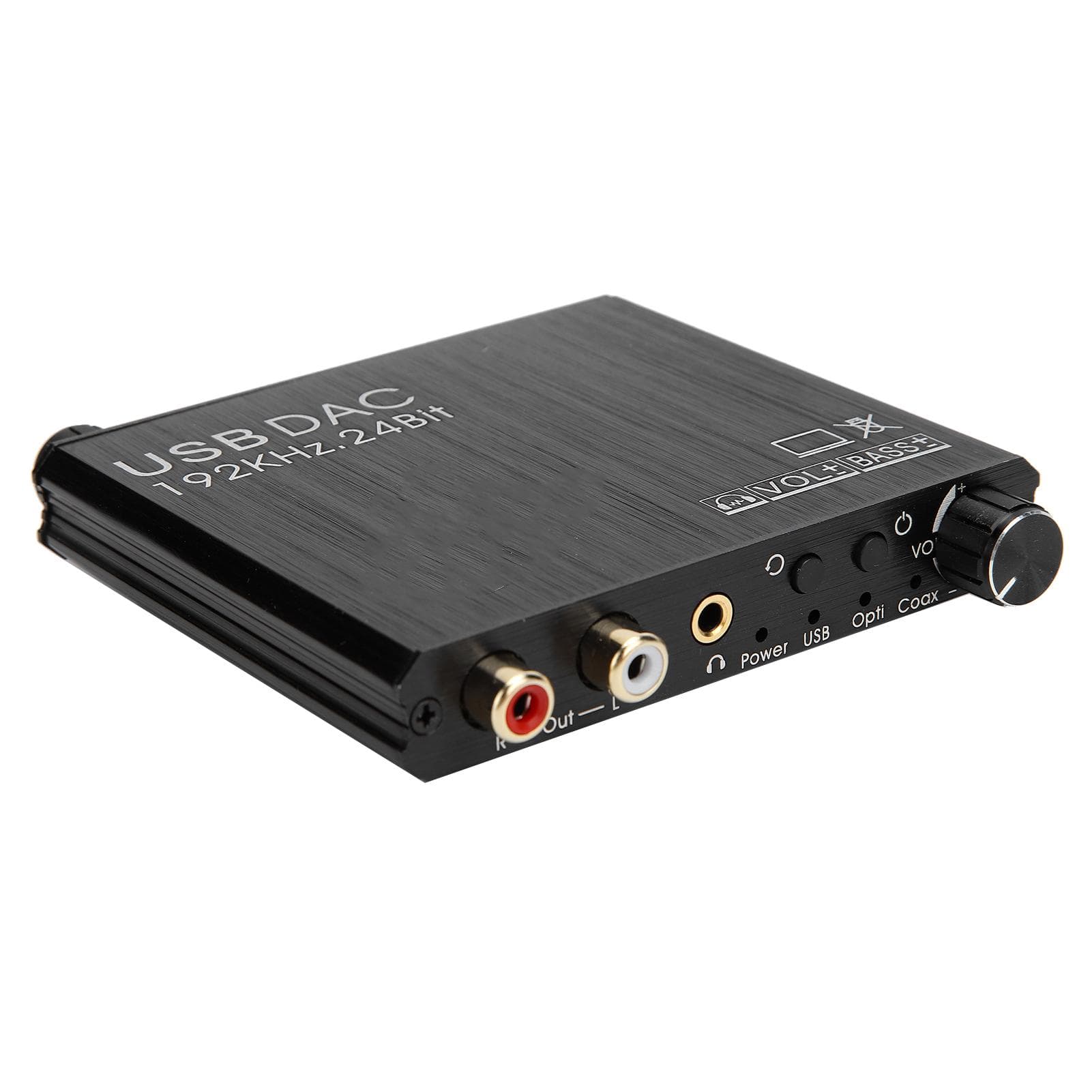

AY107 DAC Converter DigitaltoAnalog o Converter RCA 3.5mm Coaxial Optical o Converter

About this item

• Feature: 1. You can easily convert the digital o signal input from the coaxial or optical interface into an analog stereo o signal with an RCA interface and a 3.5 mm headphone jack. 2. The built‑in professional o amplifier chip and volume adjustment knob can directly drive the headphones and adjust the volume. 3. The bass adjustment function can provide powerful stereo, heavy bass effects, and create a perfect environment different from the sound field. 4. Eliminate noise when there is no input signal, and automatically mute it when a non‑o signal is input. Support 192kHz 24bit sampling rate. 5. RCA output interface is connected to the power amplifier system. A channel 3.5mm o output interface, connected to headphones. Specification: Item Type: DAC Converter Material: Metal Support o Format: PCM Resolution (1KHZ): 94DB Response Frequency: 20Hz-20KHz-0.2db Signal-to-Noise Ratio (SNR): -100DB Total Harmonic Distortion (THD + N): 10Hz-20KHz 0.25-0.065percent Blocked Time: 0.577Fs Sampling Rate: 32-192 KHz Bit Rate: 16-24 bits Headphone Output Level (Adjust the Bass to the Maximum): 3V RCA Output Level (Adjust the Bass to the Maximum): 9V Headphone Output Power (Adjust the Bass to the Maximum): (32 Ohm ) 30mW Headphone Output Impedance: 0.8 Ohm RCA Output Impedance: 450 Ohm Working Voltage: + 5V Maximum Voltage: + 6V Maximum Power Consumption: 75mA Working Temperature Range: -10-70 celsius Storage Temperature Range: -60-150 celsius Working Humidity Range: 10-80percent RH (non-condensing) Storage Humidity Range: 5-90percent RH (non-condensing) How to Use: 1. Use optical cable or coaxial cable to connect CDDVD and other playback devices to optical interface or coaxial interface. Use a USB cable to connect the laptop to the USB port. Note: Do not connect a USB flash drive to this USB port. 2. Use RCA cable or 3.5mm o cable to connect the decoder to the o amplifier or headphones. 3. Use a USB cable to connect the DC 5V power connector of the decoder to the power source. 4. Use the knob to adjust the volume appropriately. 5. According to your preference, adjust the bass component appropriately through the knob.. Package List: 1 x DAC Converter1 x User Manual1 x Power Cable1 x For Toslink Cable1 x USB Data Cable Note: 1. This DAC supports digital PCM o format. Before using PLS, please set your digital o equipment (such as HD TV, TV BOX or game console) to PCM or LPCM o. It doesn t support for DTS Dolby AC3.2. PCM setting path: device homepage‑system setting‑image and sound‑voice setting‑digital o output‑PCM3. It is suitable for Samsung or for LG TV. If you want to connect them, please follow the steps belowSettings:A. For Samsung TV setting path:PCM format: Settings‑Sound‑Expert Settings‑o Format‑PCM.External speakers: Settings‑sound‑select speakers‑optical.B. For LG TV setting path:PCM setting path: menu‑all settings‑sound output‑optical‑digital sound output‑PCM.If you need to synchronize the output of the TV speakers and the optical fiber: menu‑all settings‑sound output‑optical fiber‑internal TV speaker + optical fiber.4. Power charging: USB power cord‑separate 5V 1A standard plug‑wall socket.5. Do not use the power adapter by plugging the USB cable directly into the TV (an unstable power source can cause humming).6. If the volume (from the output of the DAC) is not loud enough, please connect the output of the DAC to a low‑impedance mobile phone headset, headphone amplifier or power amplifier.7. It is not suitable for Netflix and for YouTube video sites.8. Before turning on, you must turn the adjustment knob counterclockwise to reduce the volume, so as not to damage your hearing!9. USB flash drives are not supported!
