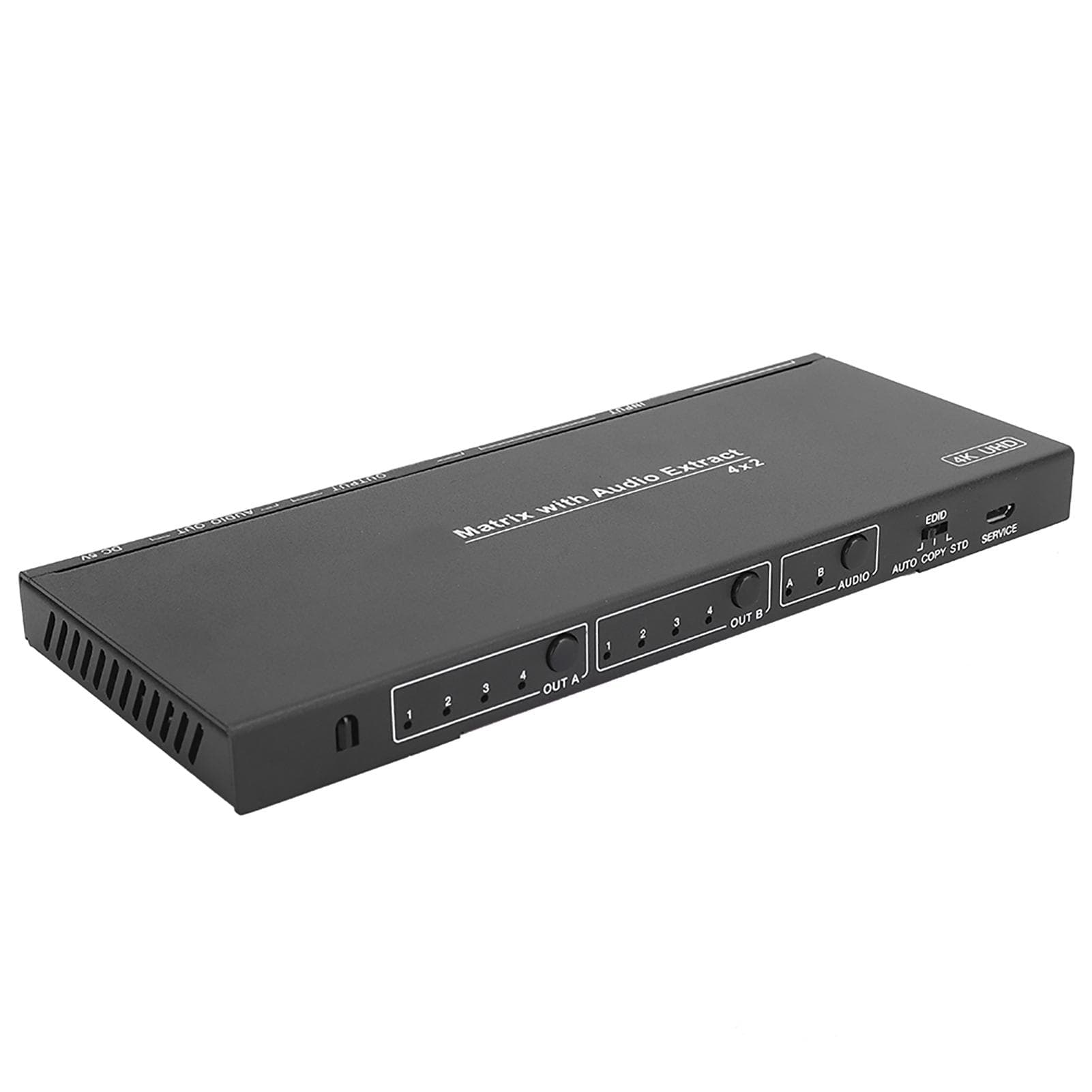

Black Aluminium Alloy 4x2 HDMI Matrix with o Extract Optical Analog Output EU Plug

About this item

• Feature: 1. 4X2 HDMI matrix simultaneously routes four HDMI sources to two HDMI displays, support resolutions up to 4K2K@5060Hz YCbCr 4:2:0 and HDCP 2.2. 2. Supports output from port A or Port B to optical and analog output, with options for automatic, copy and STD mode EDID control, through buttons on the panel, infrared remote control for flexible control. 3. Compatible with HDMI 1.4b,HDCP2.2 HDCP1.4 and DVI 1.0. Supports HDMI resolution up to 4k2K@5060Hz (4:2:0). 4. Supports digital and analog o extraction of output A or B. EDID automatic, copy, and STD modes can selected by selectors on the panel. 5. Support analog o PCM 2.0. Controlled by buttons on the panel and infrared remote control. 6. Supports optical o pass-through formats including for LPCM 2.02.1 CHDolby 5.1Dolby True HDDolby DD +DTS 5.1DTS-ES 6DTS-HDMA 5.1DTS HD-HRA 5.1. Specification: Condition: 100percent Brand New Item Type: HDMI Matrix Material: Aluminium Alloy Color: Black HDMI Compliance: HDMI 1.4b Conform HDCP: HDCP 2.2 and HDCP 1.4 Video Bandwidth: 297Mbps Video Resolution: 480P at 60Hz,720P at 60Hz,1080P at 60Hz,1080P 3D at 60Hz,4K24 30Hz,4K2K at 50 60Hz(4:2:0) Color Depth: 8 Bits,10 Bits, 12 Bits Color Space: RGB YCbCr 4:2:0,YCbCr 4:4:4,YCbCr 4:2:2 HDMI o Format: for PCM2.05.17.1CH,for Dolby 5.1DTS5.1Dolby-TrueHDDTS-HD L R o Format: Simulation Stereo 2CH Optical o Format: For LPCM [2.0 2.1] CHDolby 5.1Dolby True HDDolby DD +DTS 5.1,DTS-ES 6DTS-HDMA 5.1DTS HD-HRA 5.1 Electrostatic Protection: Mannequin -+-8kV(Air-Gap Discharge)and +-4kV(Contact Discharge) Input: 4 x HDMI Type A [19 Pin Concave Type], 1 x IR Receiver Window Output: 2 x HDMI Type A[19 Pin Concave Port] 1 x L R o Output[3.5mm Stereo Mini Plug Hole] 1 x Light Output[S PDIF] Power Supply: Input:AC100〜240V 50 60Hz,Output:DC5V 1A Energy Consumption: 2W(Maximum) Working Temperature: 0 degrees C~40 degrees C 32 degrees F~104 degrees F Storage Temperature: -20 degrees C~60 degrees C -4 degrees F~140 degrees F Relative Humidity: 20~90percent (No Condensation) Battery Type: Button Battery CR2025 Weight: Approx. 604g . Package List: 1 x HDMI Matrix1 x Plug1 x Remote Control1 x User Manual
