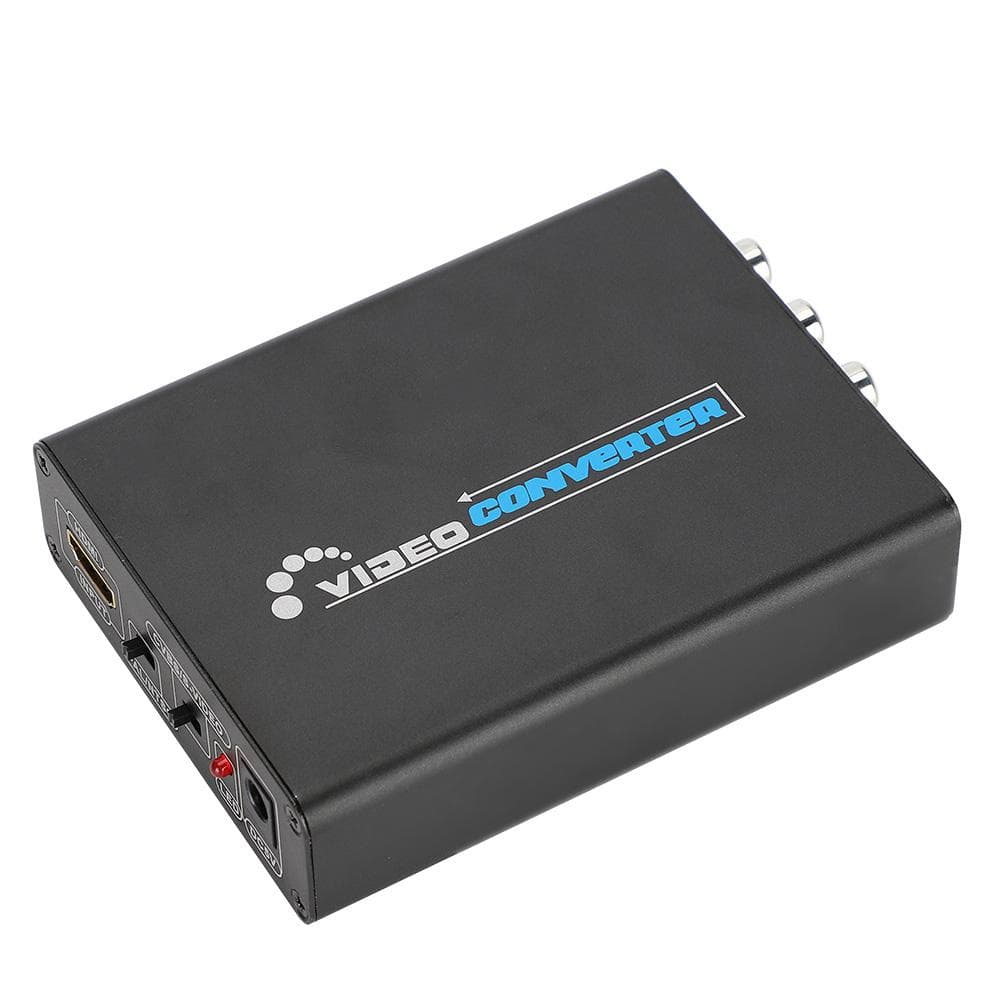

HDMI to Av s Terminal Full HD Video CVBS S-video Output Adapter Converter AU PLUG

About this item

• Feature: 1. Adopt high quality metal shell, fast heat dissipation, and durable to use. 2. Convert full HD HDMI signal to ordinary composite video signal output, which can connect device with HD interface to ordinary CRT TV, making it easy to watch HD movies or play games on a regular TV. 3. CVBS and Video cannot be output at the same time. Select the output by switching the start. 4. High performance signal output, bringing you great using experience. 5. Long service life, not easy to damage, you can use for a long time. Specification: Item Type: Converter Input HDMI Signal Format: 480P (600Hz), 576P (50Hz), 720P (50Hz60Hz), 1080i(50Hz60Hz), 1080P (50Hz60Hz), 1080P (50Hz60Hz);Output Signal: CVBS (1.0Vpp), S-Video (Y: 10.Vpp, C:0.3Vpp);Video Output SYS: PAL, NTSC;Output Video Signal Impedance Matching: 75 Ohm ;Power Supply: DC5V Working Environment Temperature: -25 celsius ~75 celsius .Working Environment Temperature: 10percent -60percent Interfaces: 1. HDMI signal input port; 2. PALNTSC switch start; 3. Select the start of CVBS or s-video output;4. Working indicator light;5. DC5V power input port;6. S-video signal output port;7. CVBS signal output port; @font-face{ font-family: Times New Roman ; } @font-face{ font-family: 宋体 ; } @font-face{ font-family: Calibri ; } @font-face{ font-family: Arial ; } @list l0:level1{ mso-level-number-format:decimal; mso-level-suffix:space; mso-level-text: percent 1. ; mso-level-tab-stop:none; mso-level-number-position:left; margin-left:0.0000pt; text-indent:0.0000pt; font-family: Times New Roman ;} p.MsoNormal{ mso-style-name:正文; mso-style-parent: ; margin:0pt; margin-bottom:.0001pt; mso-pagination:none; text-align:justify; text-justify:inter-ideograph; font-family:Calibri; mso-fareast-font-family:宋体; mso-bidi-font-family: Times New Roman ; font-size:10.5000pt; mso-font-kerning:1.0000pt; } span.msoIns{ mso-style-name: ; text-decoration:underline; text-underline:single; color:blue; } span.msoDel{ mso-style-name: ; text-decoration:line-through; color:red; } @page{mso-page-border-surround-header:no; mso-page-border-surround-footer:no;}@page Section0{ } div.Section0{page:Section0;}8. Stereo output port. @font-face{ font-family: Times New Roman ; } @font-face{ font-family: 宋体 ; } @font-face{ font-family: Calibri ; } @font-face{ font-family: Arial ; } p.MsoNormal{ mso-style-name:正文; mso-style-parent: ; margin:0pt; margin-bottom:.0001pt; mso-pagination:none; text-align:justify; text-justify:inter-ideograph; font-family:Calibri; mso-fareast-font-family:宋体; mso-bidi-font-family: Times New Roman ; font-size:10.5000pt; mso-font-kerning:1.0000pt; } span.msoIns{ mso-style-name: ; text-decoration:underline; text-underline:single; color:blue; } span.msoDel{ mso-style-name: ; text-decoration:line-through; color:red; } @page{mso-page-border-surround-header:no; mso-page-border-surround-footer:no;}@page Section0{ } div.Section0{page:Section0;} Package List: 1 x Converter 1 x User Manual 1 x Power Adapter 1 x AV Cable 1 x S-video Cable Note: CVBS and Video cannot be output at the same time. Select the output by switching the start.
