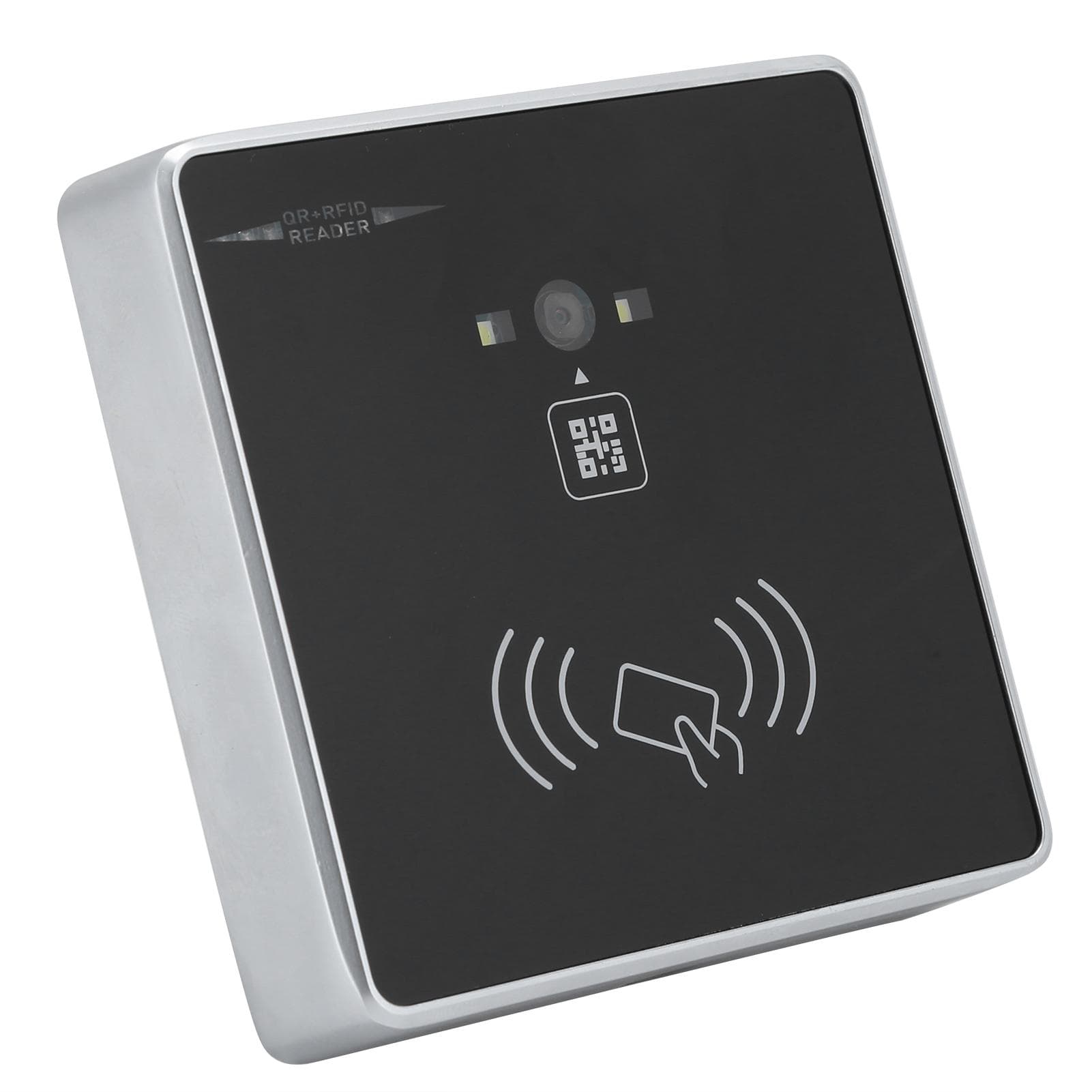

Card Reader RFID Barcode 2D QR Access Control Card Rader for Wiegand TTL RS232 RS485ID Card

About this item

• Feature: 1. Adopt standard 86 box industry standard, fast scanning speed and high recognition rate. 2. Strong compatibility, can be connected to any controller that supports for Wiegand input. 3. Widely used in business office building visitor entry management, scenic tourist staff management, community visitor entry and exit management, smart home, etc. 4. Achieve perfect upgrades for traditional credit card systems in various industries. 5. Small size, easy to carry and store, convenient to use and with good performance. Specification: Item Type: Card Reader Optional Style: ID Card, IC CardMaterial: Zinc Alloy + Acrylic Card Reader Type: for EM card Barcode Type: QR, barcode Communication Method: For Wiegand 2634RS232RS485TTL Working Frequency: 125 (Khz) Decoding Mode: Image decoding Reading Direction (barcode): 45 degrees inclined plane with the lens as the center point Scan Coding Features: Automatic induction, buzzer prompt Working Voltage: 8-12V Working Current: 800mA Card Reading Distance (card): Approx. 3 ~ 6cm 1.2 ~ 2.4in Reading Distance (QR): Approx. 0 ~ 20cm 0 ~ 7.9in Reading Speed: <200ms Operating System: For WindowsXP7810)Linux Light: Standby state (blue light is on normally), card readingscanning state (green light is on for about 0.5s) Built-in Horn: BuzzerLine Sequence Definition: for Wiegand 2634 RS485 RS232 Red wire: 12V Red wire: 12V Red wire: 12V Black wire: GND Black wire: GND Black wire: GND Green Wire: D0 Brown wire: 485A Blue wire: RX White Wire: D1 Orange wire: 485B Yellow wire: TX Note: 1. The access control card reader cannot store user data and information, and cannot add card users, password users, and fingerprint users. It is only an expanded card or password unlocking tool, which can only be used with access control integrated machines, card time attendance machines and other equipment. 2. When installingremoving, please turn off the power first and do not operate with power. 3. The maximum reading distance is in a non-interference environment, the card reader is installed in the correct way, and the card is measured parallel to the surface of the card reader, any electromagnetic interference environment will affect the reading distance. 4. Do not install the card reader on the surface of magnetic or metal objects. Magnetic and metal materials will seriously affect the RF signal 5. Do not install the card reader near devices that produce interference electromagnetic fields, such as motors, ACDC converters, UPS, relays, monitors, etc. 6. The power supply should make sure sufficient power, try to use a linear power supply, and the door lock and controller should be powered separately. Install the power supply as close as possible to the electrical equipment to avoid interference and transmission loss. 7. It is recommended to pay attention to separate the strong and weak current when wiring, and the separation requirement is greater than 20cm. The power cord should be a multi-stranded wire with a sufficiently thick wire diameter.. Package List: 1 x Card Reader Note:
