Water Cooling Kit Mute Integrated DIY Desktop Computer CPU Cooler Controller Heat Sink Set

About this item

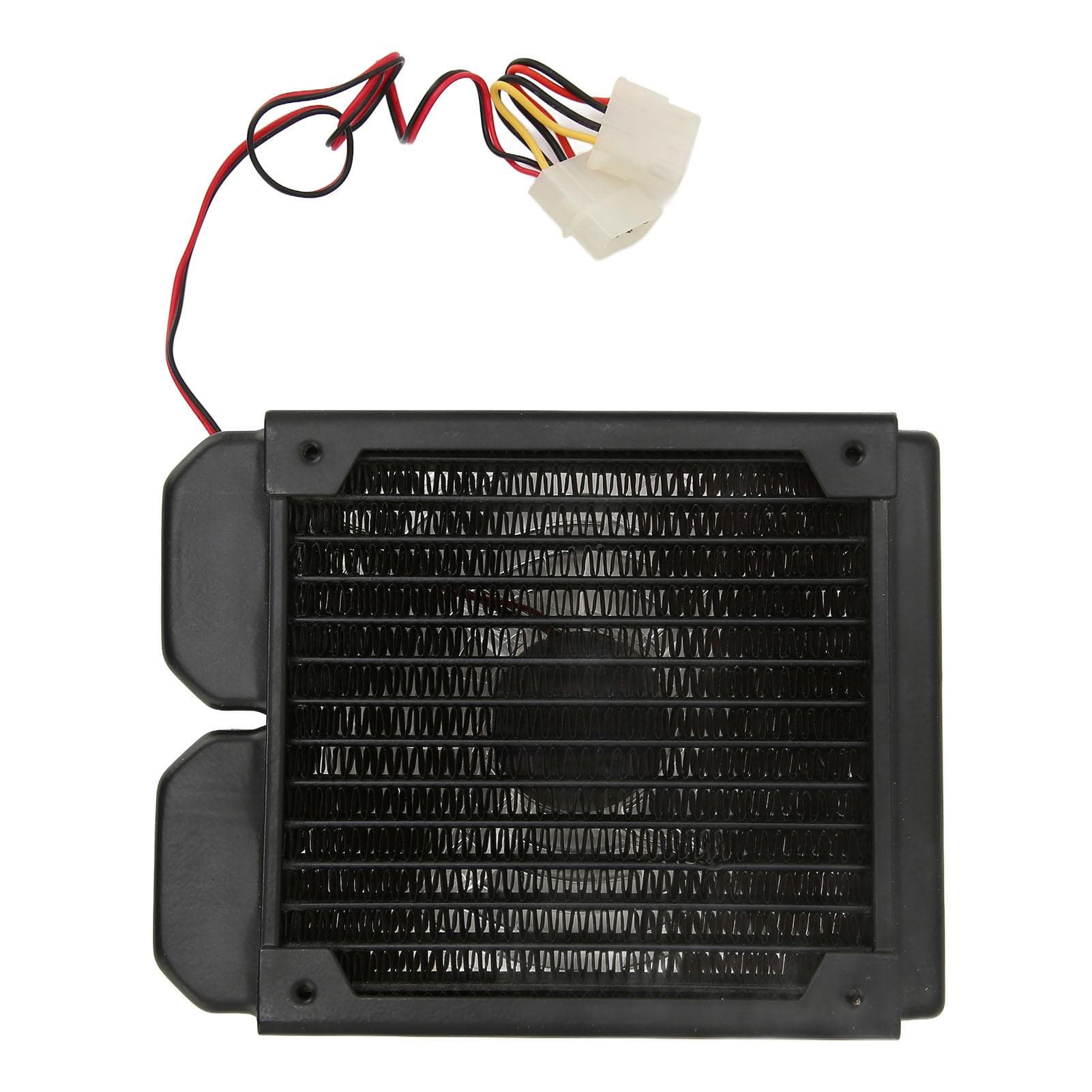

• Feature: 1. [Performance] GPU water block adopts copper based structure to provide excellent heat transfer performance and excellent cooling performance. 2. [Waterproof Stable] Using sophisticated production technology, the pump is waterproof, stable and has a long service life. 3. [Strong Heat Dissipation] Equipped with 10 brass pipes of 120mm water drain, which can provide strong heat dissipation. 4. [LED fan] The LED fan has high static air pressure, low noise, and cool lighting effects, and can be used as an excellent choice for computer heat dissipation. 5. [Use] This is a set suitable for desktop computer cooling, suitable for DIY players to assemble their own cooling equipment. Specification: Item Type: Water Cooling Kit Material: ABS, Brass, Aluminum Alloy, Acrylic Main Accessories: 1. 10 Tube Integrated Water Cooled Copper Bar with LED Fan Interface: Straight Interface Fan Size: Approx. 12cm 4.7in, Approx. 12cm 4.7in Fan Interface: Big 4pin Water Drain Specification: Approx. 120mm 4.7in Water Drain Size: Approx. 152mm 6.0in, Approx. 55mm 2.2in, Approx. 120mm 4.7in 2. GPU Water Block Contact Copper Surface Size: Approx. 50mm 2.0in, Approx. 50mm 2.0in Material: Brass, Aluminum Alloy Equipped With: 1 Pack of Mounting Screws 3. SC600 Water Pump Components and Pagoda Screws: Voltage: 12V DC, 3 Pin Plug on the Motherboard Power: 10W Head: Approx. 3meters 3.3yd Stream Rate: 500 LitersHour 4. 140mm Cylindrical Water Tank Water Tank Diameter: Approx. 50mm 2.0in Water Tank Height: Approx. 140mm 5.5in Water Tank Material: Acrylic, ABS Equipped With: 1 Pair of Black Water Tank Brackets, 1 Pair of Silver Brackets, 1 Pack of Mounting Screws 5. Hoses (Transparent) Components Hose Length: Approx. 2meters 2.2yd Hose Size: Approx. 8mm 0.3in (Inner Diameter), Approx. 10mm 0.4in (Outer Diameter) Hose Material: TPE Equipped With: 1 Pack of Copper Mounting Screws 6. Water Cooled Liquid Filling DeviceHow to Use: 1. Remove the CPU cooler 2. Remove the CPU base and north bridge 3. The effect picture of removing the CPU base and the north bridge 4. Prepare 4 screws to fix the CPU, and put on spacers for each 5. Put the prepared screws into the four holes of the CPU 6. Turn the motherboard to the front, put a washer on each screw Screw nuts on 7.4 screws 8. Use a screwdriver to tighten the 4 screws 9. Apply silicone grease evenly on the CPU 10. Align the CPU water block with the hole and place it 11.4 springs are placed on the fixing screws Tighten the nut with 12.4 screws. The progress of tightening the 4 nuts must be the same, otherwise it will cause imbalance and poor heat conduction. 13. Install 2 pagoda connectors 14. Prepare the two screws of the north bridge, and put washers on the screws 15. The north bridge screw penetrates the hole of the motherboard 16.Turn the motherboard over and put 2 screws on the front side with spacers 17. Apply thermal grease evenly on the North BridgeSouth Bridge chip 18. Screw the nut on the screw, go to the back and use a screwdriver to tighten 19. Put the corresponding screws into the North BridgeSouth Bridge 20. Put a spring on the screw 21. Screw on the nut, the progress of the two screws is the same, then install the pagoda connector, and tighten 22. The graphics card is removed from the motherboard 23. Remove the previous heat dissipation effect diagram 24. The graphics card head is the same as the previous steps 25. Show that the water block is installed 26. Install the graphics card back to the computer motherboard and fix the effect picture 27. Fix the cooling fan to the cooling water drain (note: the fan is sent to the radiator) 28. The effect diagram of fixing the heat sink on the chassis 29. The display diagram of the follow-up connection of the pump and the water tank. The follow-up method can be changed in the actual situation, and you can install it at will. 30. Fix the water tank rack in the proper position of the chassis, and then snap the water tank into the buckle 31. All accessories are fixed, measure the length of the pipe at each position of the pipeline, and then cut the pipe 32. Put the tube skull on both ends of the tube 33. Casing Skeleton Method 34. Connect the weft waterway like this, and then put the pipe skeleton on the joint with pliers 35. Then check whether each waterway is installed properly to avoid water leakage 36. Add water and coolant, fill the water tank for the first time, and then turn it on, it will become less during the cycle, fill it up again, make sure the air inside is drained, and then plug the plug 37. Connect the power supply of the water pump to the position of the previous CPU fan, and the big 4pin interface of the fan can be found on the power supply to insert it. Package List: 1 x 120 Pagoda Copper Row (with 1 x 12cm Fan)1 x GPU Water Cooling Head4 x Long Screws4 x Finger Screw Nuts4 x Springs4 x Small Nuts8 x Gaskets1 x Water Pump1 x 140mm Cylindrical Water Tank2 x Black Water Tank Brackets2 x Silver Brackets2 x Long Screws4 x Short Screws6 x Large Nuts1 x Transparent Hose6 x Pipe Buckles6 x Pagoda2 x Plugs1 x Docking1 x Funnel
