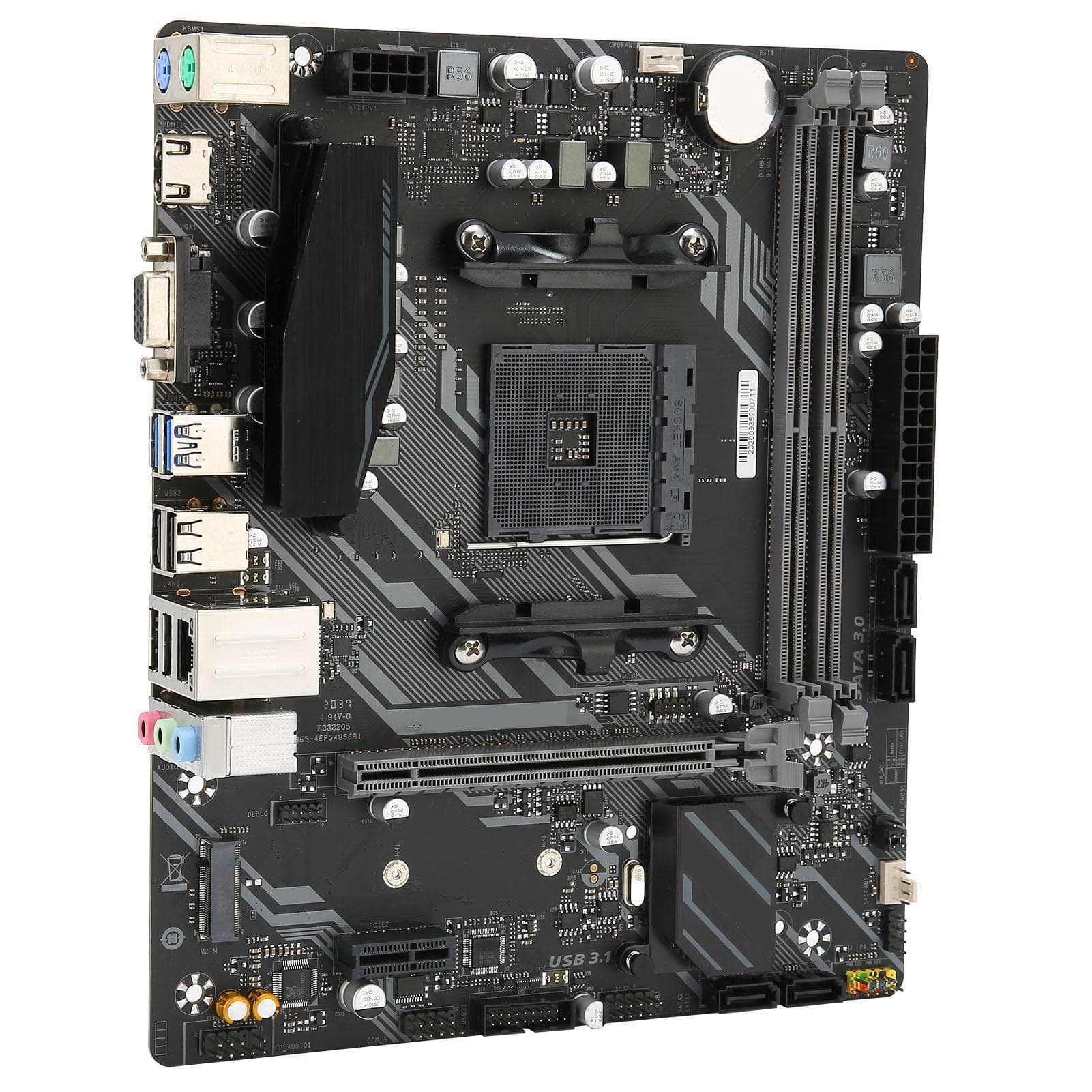

Motherboard A520M MicroATX Dual Channel DDR4 Memory USB2.03.0 M.2 VGA Laptop Accessories

About this item

• Feature: 1. Adopt optimized network card chip to further take advantage of high‑speed network and reduce game delay 2. Intelligent real-time monitoring of hardware frequency, temperature, speed, voltage, etc., players can know the status of the host at any time 3. Equipped with SATANvme M.2 slot, bringing faster data reading and writing, game loading experience for players 4. Multiple expansion interfaces, providing standardized PCIE3.0, USB3.0, SATA3.0 interfaces, and six USB interfaces at the rear 5. The motherboard is equipped with dual-channel DDR4 memory slots, PCIE X16 slots and PCIE 1X expansion slots Specification: Item Type: Motherboard Material: For PCB Board Model: SY-Crazy Dragon H410M Built-In Battery: CR2032 Button Battery (Built-In Battery) Battery Capacity: 240mAh Board Type: Micro-ATX Motherboard Chipset: For AMD A520 Chip CPU Support: Support for AMD AM4 Socket APU and for AMD Ryzen Processor Memory Support: Support Dual-Channel DDR4 Memory Network Card Chip: For Realtek RTL8111 Gigabit Network Card Integrated Graphics: CPU Built-In Display Chip (APU Only, Ryzen Has No Display Chip) Disk interface: 4 x SATAIII Interface; 1 x M.2 Interface (SATAPCI-E Standard) Graphics Slot: 1 PCI-E x 16 Graphics Slot Other Slots: 1 PCI-E X1 Slot; 1 M.2 Slot PS2Interface: 1, Keyboard and Mouse Universal USB Interface: 2 x USB3.0; 4 x USB2.0 Interface o Interface: 6-Channel o Video Interface: VGA, High-Definition Multimedia Interface Extension Pins: 4 USB2.0, 1 USB3.0 Power Interface: 24 Pin + 8 Pin Power Supply Mode: 6 Phases Features: High-Speed M.2 Interface, Graphics Card Slot, 2 DDR4 Memory Slots, Six-Phase Power Supply Does Not Boot When I Press the Power Button to Start the Computer, the Fan and Q-LED IndicatorQ-CODE Have No Response. Please Follow the Instructions Below to Troubleshoot 1. Follow the Above Troubleshooting Steps to Confirm the Motherboard Power Supply to Confirm Whether the Power Adapter is Correctly Plugged into the ATX Power Interface 2. Keep the CPU, CPU Radiator Fan and a Separate RAM Display on the Motherboard. Remove All USB Devices and External Cards from the Motherboard, Including Mice, Keyboards, Card Readers, Flash Drives, External Hard Drives, and External PCI-E Cards. Remove All Cables from the Motherboard, Including Network Cables, o Cables and Display Cables (High-Definition Multimedia Interface VGA DVI DP). then Try to Turn on the Computer. If It Can Be Turned on Normally, the Problem May Be the Removed External Device. Reconnect the External Devices One by One Until It is Determined Which External Device or Wire is Causing the Problem 3. Try to Clear CMOS. Package List: 1 x Motherboard1 x SATA Data Cable1 x Baffle1 x M.2 Fixing Screws (2 Pcs)
