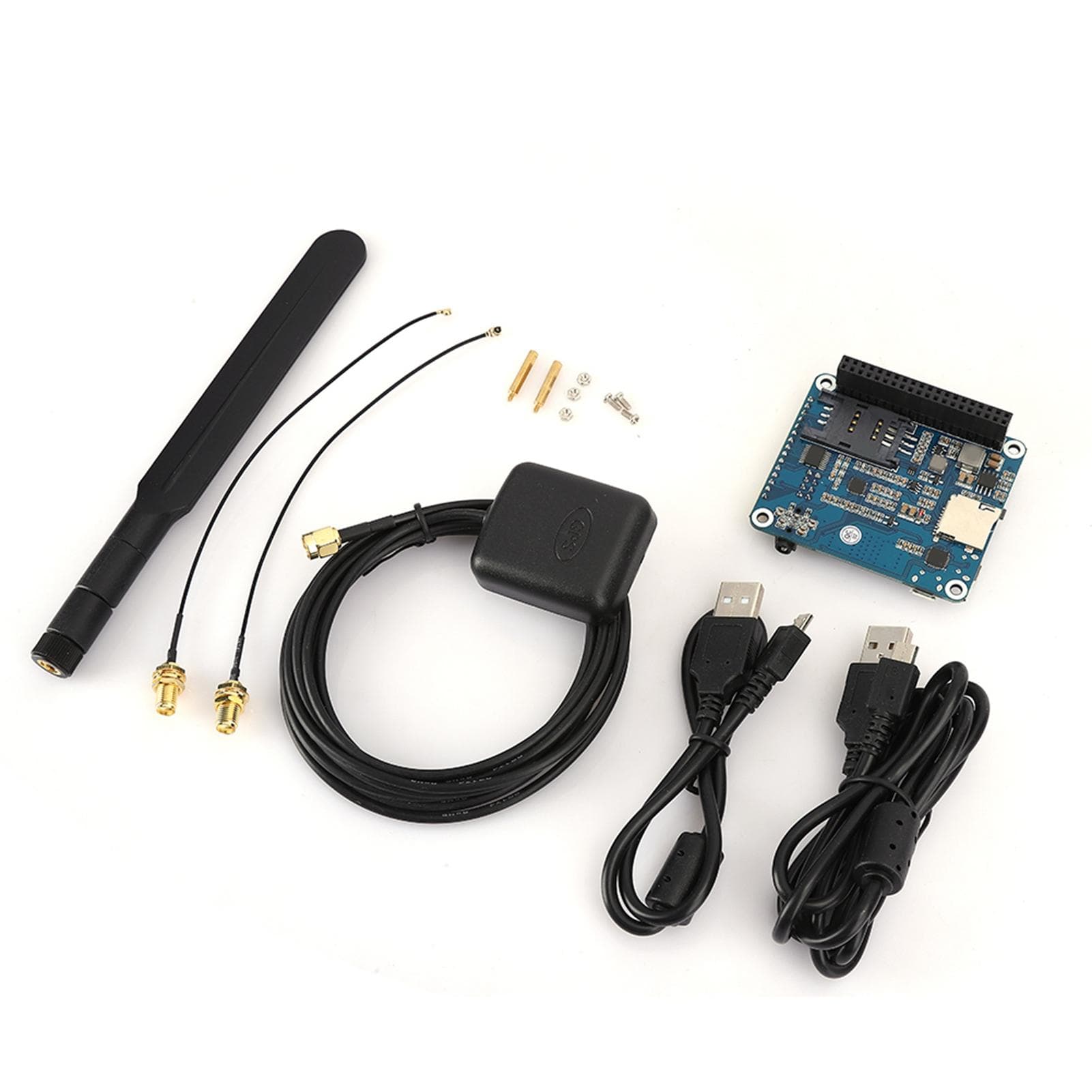

Positioning Expansion Module for RPI LTE Cat-13G2G CommunicationGNSS SIM7600E

About this item

• Feature: 1. The for RPI LTE Cat-1 expansion board supports LTE Cat-13G2G communication and GNSS positioning. Full Netcom multi-band, LTE Cat-13G2G, GNSS positioning, dial-up Internet access, call and SMS 2. The board supports dial-up Internet access, telephone, SMS, TCP, UDP, DTMF, HTTP, FTP and other functions. Support for GPSBeidouGlonass LBS base station positioning. 3. The onboard USB interface can be used to test AT commands and obtain GPS positioning information. Onboard USB to UART chip, convenient for serial debugging. 4. Onboard SIM card slot support 1.8V and 3V SIM cards. Onboard small memory card slot, can be used to store data such as files and SMS. 5. The onboard o interface and o decoding chip can be used for voice operations such as phone calls. 2 LED indicators on board, easy to check the running status of the module. 6. Onboard level conversion circuit can switch 3.3V5V working level through jumper hat. Support baud rate range is 300bps~4Mbps (default is 115200bps) 7. The product supports automatic recognition of baud rate (9600bps~115200bps) and support AT command control (based on 3GPP TS 27.007, 27.005 and V.25TER command set). Specification: Item Type: Expansion module.LTE Cat-13G2G Parameters LTE Cat-1: LTE-TDD: B38B40B41 LTE-FDD: B1B3B5B7B8B20 3G: UMTSHSPA+: B1B5B8 2G: GSMGPRSEDGE: 9001800MHz GNSS Parameters Receive: 16 channels CA Code Sensitivity: -159dBm (GPS)-158dBm (GLONASS)-159dBm (Beidou) Cold start: -148dBm First Positioning Time (Open Area): Cold start; <35s Hot Start: <1s SMS and o Parameters Short Message (SMS): Support Type: MT, MO, CB, Text, PDU SMS Storage Device: USM card and ME (default) Sound Characteristics: Support echoing sound cancellation functionSupport noise printing function Other Parameters Power Supply Voltage: 5V Working Voltage: 5V3.3V (can be switched by jumper hat) Working Temperature: -30 celsius -80 celsius Storage Temperature: -45 celsius -90 celsius Package List: 1 x SIM7600E LTE Cat-1HAT1 x LTE Antenna1 x GPS External Antenna (B) 2 x USB Cable TypeA Male Port to Male Port 1 x RPi Standoff Pack (2Pcsset) 2 x Wiring
