2.4-inch TFT Digital Oscilloscope Kit with Power Adapter and BNC-Clip Cable Probe (Assembled US Plug

About this item

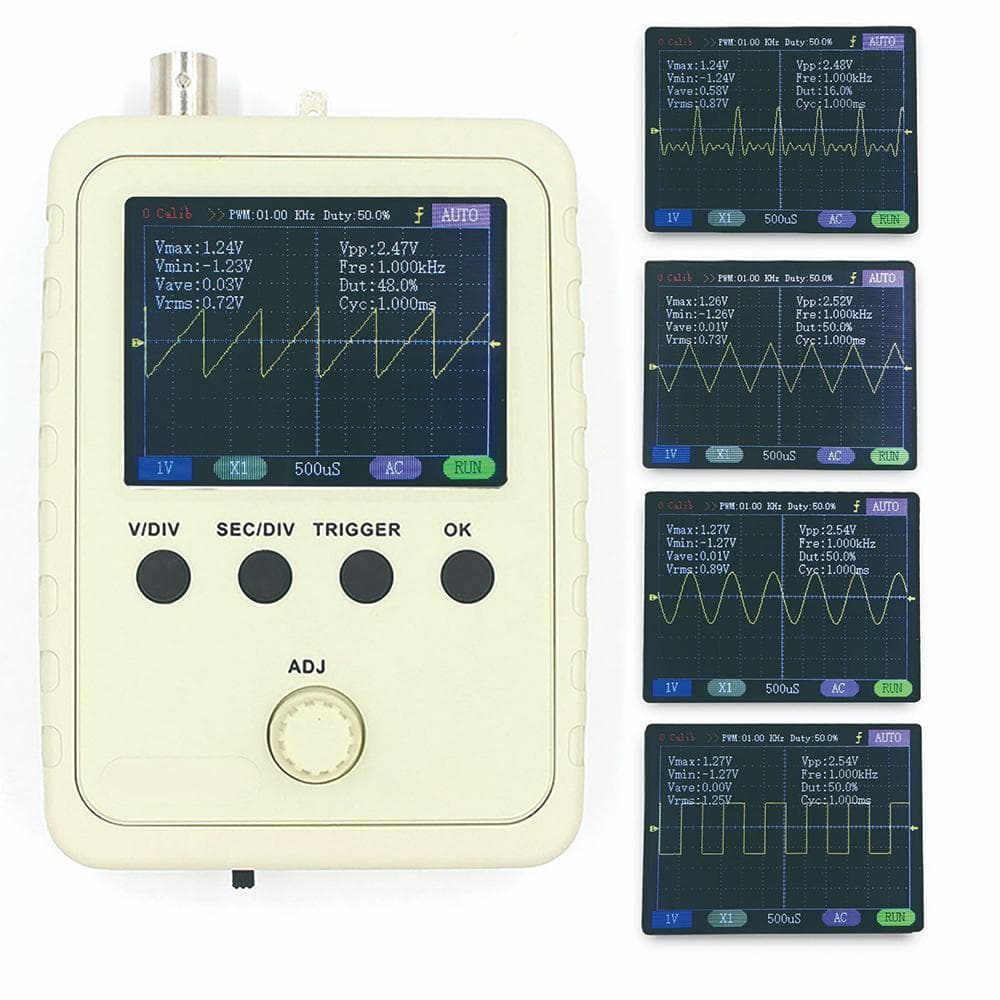

• Feature: Specification: This digital oscilloscope has similar bandwidth as DSO138 but contains significant improvements in structure, mechanism and operation. It features high sensibility, light and portable size, 2.4-inch TFT screen and protective case. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. Features: Adopts ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen Used for secondary development on the basis of this kit, for example, it can be changed to millivoltmeter, data loggers. Come with instructions, easy to install and operate. Auto/normal/single trigger modes, easy to capture the moment waveform. Available rising or falling edge trigger. Observable previous waveform before trigger (negative delay). Can freeze waveform display at any time (HOLD function). Waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. Waveform storage function: Will not lose the waveform after powering off. Short-circuit and open-circuit detection: Can help the user find out the soldering error. TFT controller recognition function. The SMD has been soldered, more suitable for electronic beginners. Specifications: Type: Finished Product Model: US/ EU (optional) Number of Channel: 1 Analog Bandwidth: 0-200KHz Sensitivity Range: 5mV/Div - 20V/Div Sensitivity error: < 5percent Maximum Input Voltage: 50Vpk (1X probe) Input Impedance: 1M ohms/20pF Resolution: 12 bits Record Length: 1024 points Coupling Modes: DC / AC / GND Maximum Real-time Sampling Rate: 1MSa/s Time Base Range: 10us/Div - 500s/Div Trigger Modes: Auto, Normal, and Single Trigger Types: Rising/falling edge Trigger Position: Center of Buffer Display: 2.4 Color TFT LCD with 320*240 Resolution Supply Voltage: DC 9V(8-10V Acceptable) Current Consumption: ~120mA @ 9V Product Size: 115 * 75 * 22mm / 4.53 * 2.95 * 0.87in Product Weight: 92g / 3.24oz Package Size: 202*110*38mm/7.95*4.33*1.50in Package Weight: 314g/11.07oz Note: Due to the light and screen difference, the item's color may be slightly different from the pictures. Please allow 1-3cm differences due to manual measurement. Package List: 1 * Oscilloscope 1 * BNC-clip cable 1 * Probe 1 * Power adapter 1 * Users Manual Package List: 1 * Oscilloscope 1 * BNC-clip cable 1 * Probe 1 * Power adapter 1 * Users Manual
