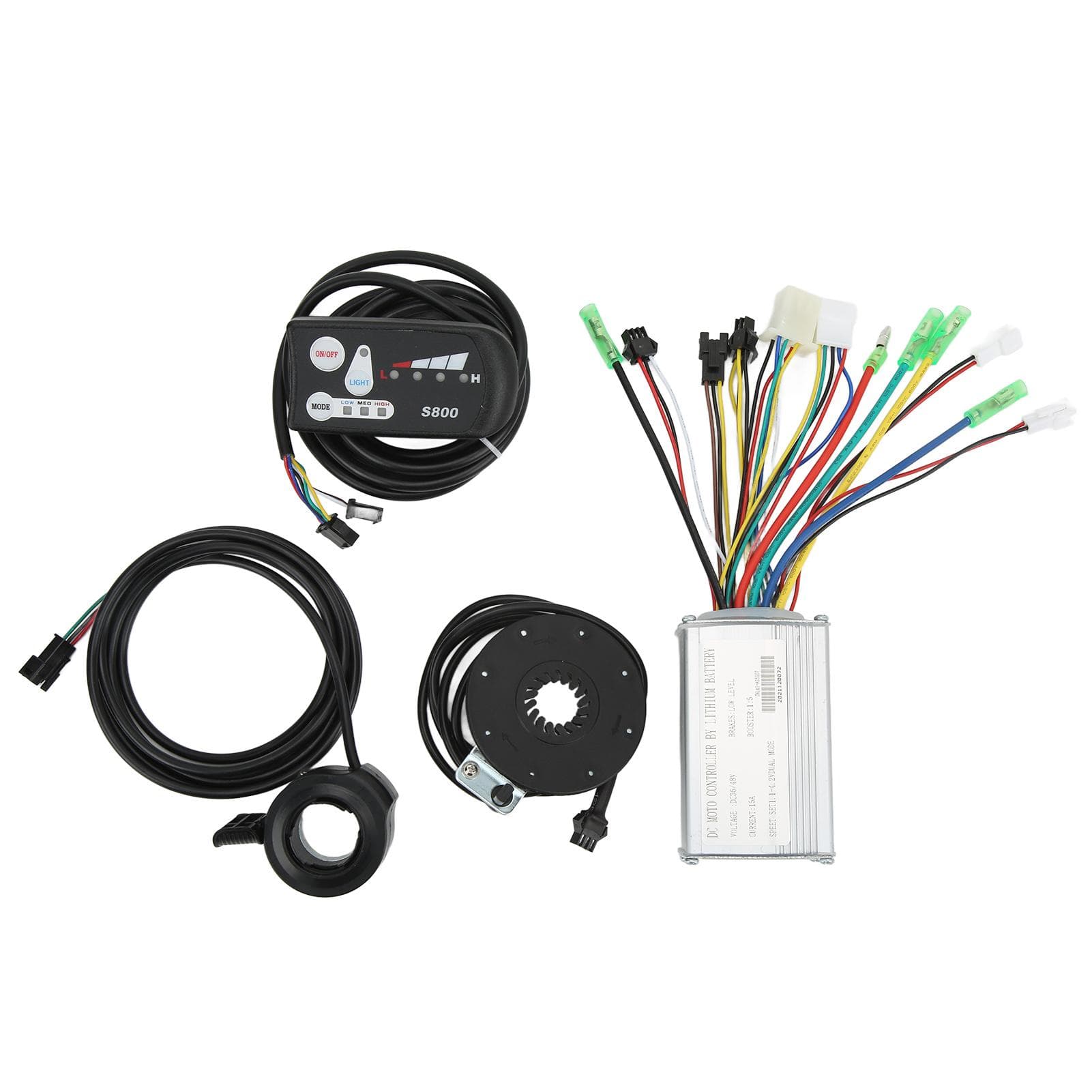

Electric Bike 15A Controller 36V 48V Common Speed Controller with LED S800 Display Panel for 250W

About this item

• Feature: 1. Packing List: Electric bike conversion kit include 15A controller, LED S800 instrument, 130X thumb throttle, 8C speed assist sensor. 2. Controller Housing: Made of high quality metal with groove design, it can protect the internal circuit due to good heat dissipation, thus avoiding thermal overload. 3. Durable Material: Using ABS material, it is light, strong and durable, with good toughness and waterproof performance, providing better protection for the internal circuit. 4. Widely Used: Suitable for 250W,350W motor, DIY electric bicycle, electric vehicle, electric scooter, folding bike, etc. Easy to maintain, electric bicycle greatly improves riding fun, for cyclists who like challenge. 5. LED S800 Meter: Compatible with 36V and 48V voltage, intelligent power display, true reflection of battery power, real time recording of power consumption, to ensure riding mileage. High, medium and low analog torque thrust comes from switch gear and gear indication display. It adopts five wire digital communication and has multifunction self tuning function parameters. Users can customize settings according to different models, such as motor parameters and speed parameters. Specification: Item Type: Electric Bicycle Controller S800 Instrument Kit Color: As Pictures Shown Material: Aluminum Alloy + ABS Plastic Weight: Approx.471g16.6oz Controller Box Size: Approx. 82x50x30mm3.2x2.0x1.2in, Meter Size: Approx. 80x40mm3.2x1.6in Controller Rated Voltage: DC 36V48V Controller Maximum Current: 15A Controller Speed Setting: 14.2V Controller Brake Input: Low Level Booster: 1:5 Applicable Motor Power: 250W, 350W Controller Wire Color Definition: 1. Yellow, Green, Blue Single Big Head Line: Motor Phase Line 2. Redwhiteblackbluegreenyellow Double Row Sixwire Port: Motor Hall Wire 3. Red and Black Single Big Head Line: Power Line 4. Red, Blue, Black, Green and Yellow Singlerow Fivewire Port: Instrument Line (5pin) 5. Black and Yellow Lines (two): Power off Brake Handle Line 6. Red and Black White Lines: Throttle Dial Line (3pin) 7. Brown, Black and Yellow Wire: Pas Power Sensor Wire (3pin) 8. Black and Red Lines (two): Headlight Lines Description of Led S800 Instrument Line End: 1. Line Color Definition (5pin): Red: Meter Power Cord Blue: Power Control Wire of the Controller Black: Instrument Ground Wire Green: the Data Receiving Line of the Meter Yellow: the Data Transmission Line of the Meter 2. Expand Headlight Function: Brown Wire (headlight Positive), White Wire (headlight Negative). Package List: 1 x Controller 1 x Display Panel1 x Thumb Throttle 1 x Speed Assist Sensor1 x Controller Wiring Manual Note: Note that the size of the motor matches the controller kit.Packing List: Electric bike conversion kit include 15A controller, LED S800 instrument, 130X thumb throttle, 8C speed assist sensor. Controller Housing: Made of high quality metal with groove design, it can protect the internal circuit due to good heat dissipation, thus avoiding thermal overload. Durable Material: Using ABS material, it is light, strong and durable, with good toughness and waterproof performance, providing better protection for the internal circuit. Widely Used: Suitable for 250W,350W motor, DIY electric bicycle, electric vehicle, electric scooter, folding bike, etc. Easy to maintain, electric bicycle greatly improves riding fun, for cyclists who like challenge. LED S800 Meter: Compatible with 36V and 48V voltage, intelligent power display, true reflection of battery power, real time recording of power consumption, to ensure riding mileage. High, medium and low analog torque thrust comes from switch gear and gea
