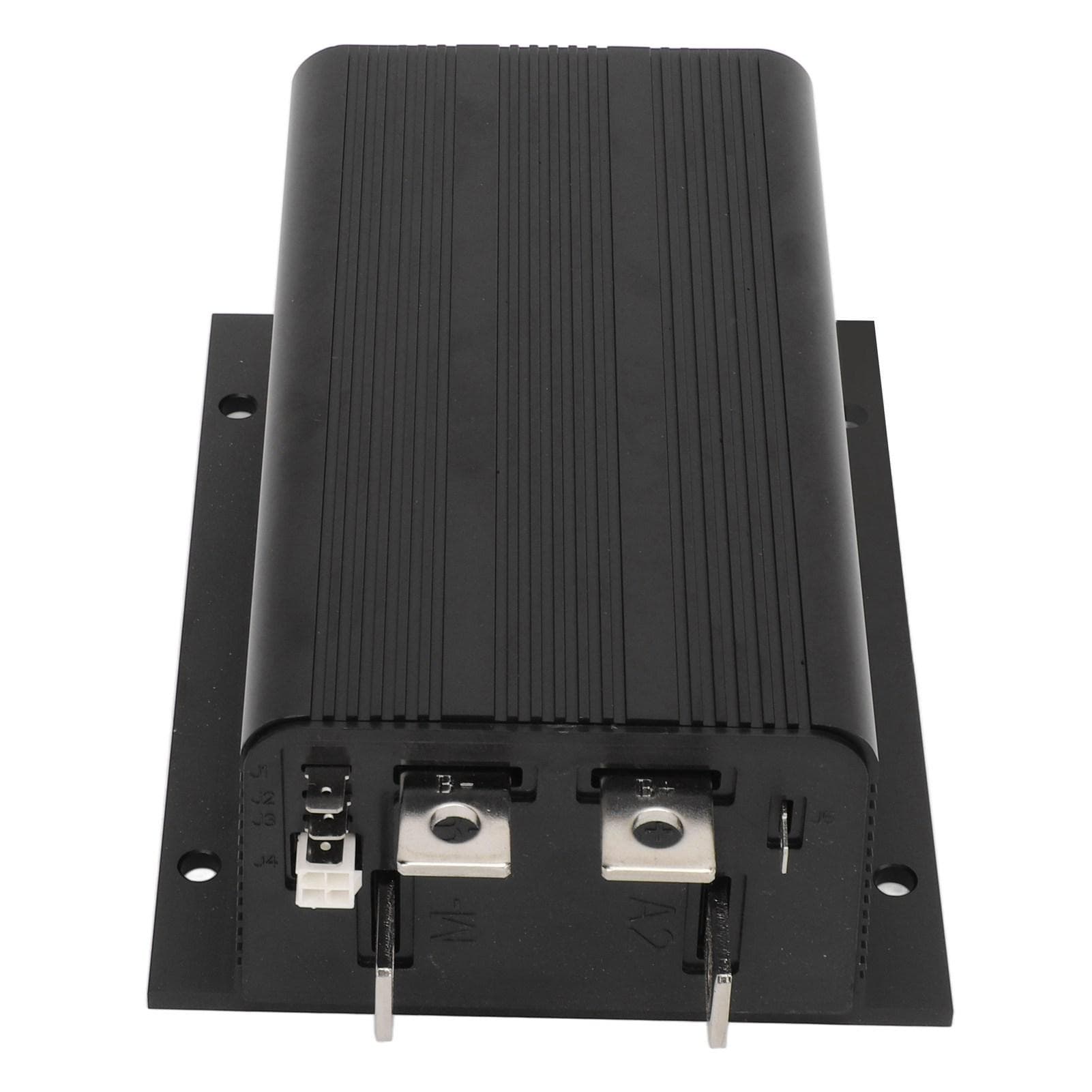

Golf Cart DC Motor Controller 24V 500A Speed Motor Control Unit Replacement for Curtis Golf Cart

About this item

• Feature: 1. Vehicle Fitment: Motor controller is a series excited motor controller, replacement for Curtis Golf Cart Forklift Truck, which is made according to the prototype model. 2. Main Function: Controller can control the vehicle s starting, traveling, speed of entering and exiting, and strength of climbing according to the commands of gear, throttle, and brake. 3. High Performance: Speed sensor inputs enable excellent closed loop control to regulate vehicle speed. Unique braking parameters allow for simple, intuitive deceleration adjustment. 4. Strong Reliability: High frequency switches and ultra low voltage drops enable efficient and quiet operation. If the valve line is open, the throttle fault protection circuit will disable the controller. 5. Stable Operation: Thermal protection and compensation circuits provide constant current limitation over the operating range and during under and over temperature curtailment. Specification: Item Type: Golf Cart DC Motor ControllerMaterial: MetalProduct Model: 1205M4601, 17721706Voltage: 24V Current: 500A Battery System Voltage And Throttle Type: 05k Ohm , 5k0 Ohm , or 05V (configurable), our default is 05k Ohm Features Include:1. Simple installation and wiring using push in connectors for control signals and plated solid copper bus for power connections. 2. Compatible with two wire potentiometers or voltage throttles. 3. If the key is turned on while the throttle is in use, the high pedal disable feature prevents the controller from operating. 4. Insert the brake diode inside the controller. 5. The undervoltage cut function protects against low battery voltage, including low voltage caused by external loads.. Ten Throttle Types Are Available: Type 0: 2 wire Potentiometer, 05 k Ohm Type 1: 2 wire Potentiometer, 5k Ohm 0 Type 2: Single Ended 05V input Type 3: 2 Wire Potentiometer, 4.6k Ohm 0 Type 4: 2 Wire Potentiometer, 5.5k Ohm 0 Type 5: 2 Wire Potentiometer, 1k Ohm 0 Type 6: ITS Input Type 7: Single Ended 6.310.6 V Inputs Type 8: Single Ended 612 V Input Type 9: Single Ended 3 wire potentiometer, 05k Ohm Application: Replacement for Curtis Golf Cart Forklift Truck Package List: 1 x Controller Note: 1. Before purchasing, check whether the model and parameters match.2. Professional installation is highly recommended, if you have any questions please contact us, we will answer for you.3. We have instructions for installing electronic files, please contact us if necessary.Vehicle Fitment: Motor controller is a series excited motor controller, replacement for Curtis Golf Cart Forklift Truck, which is made according to the prototype model. Main Function: Controller can control the vehicle s starting, traveling, speed of entering and exiting, and strength of climbing according to the commands of gear, throttle, and brake. High Performance: Speed sensor inputs enable excellent closed loop control to regulate vehicle speed. Unique braking parameters allow for simple, intuitive deceleration adjustment. Strong Reliability: High frequency switches and ultra low voltage drops enable efficient and quiet operation. If the valve line is open, the throttle fault protection circuit will disable the controller. Stable Operation: Thermal protection and compensation circuits provide constant current limitation over the operating range and during under and over temperature curtailment.
