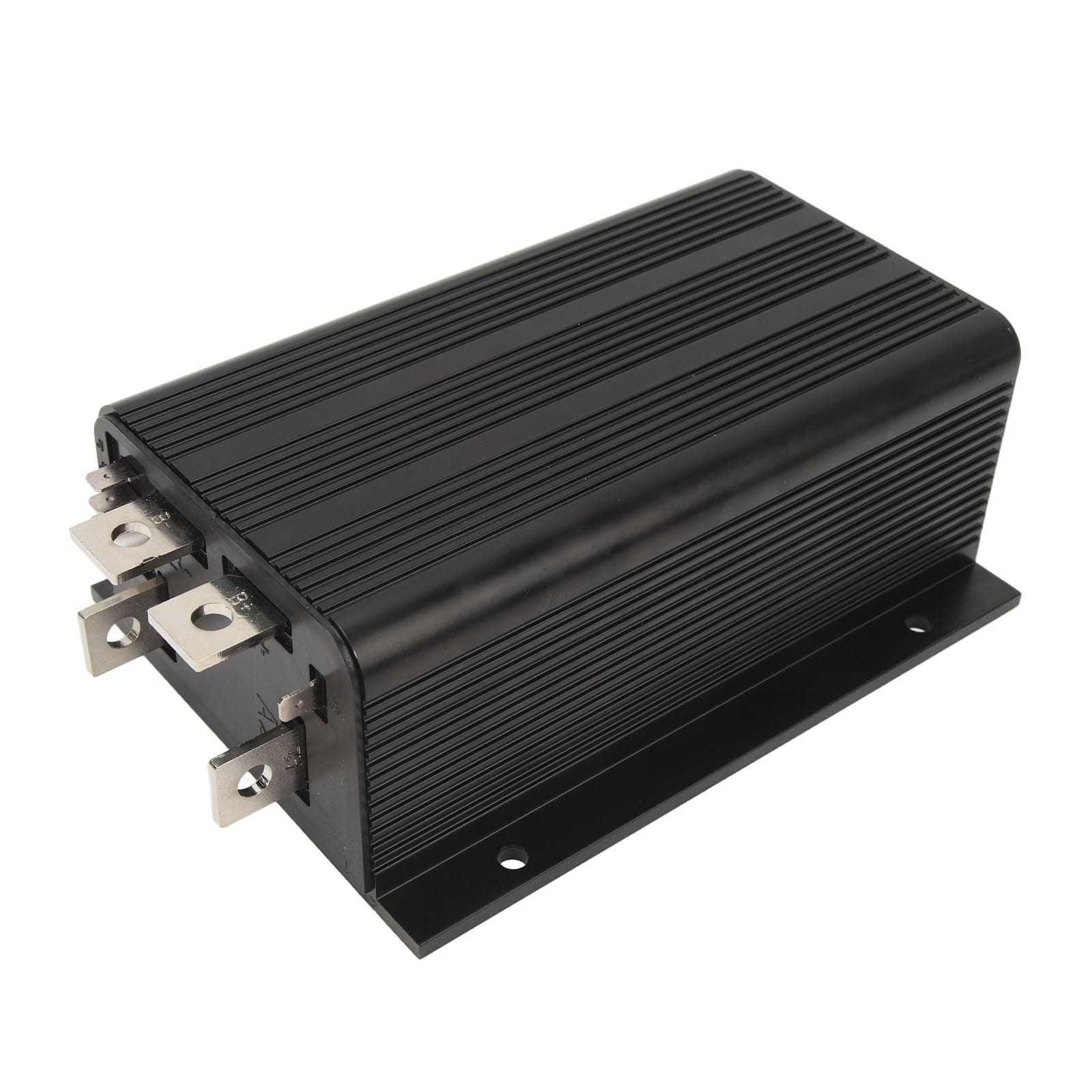

48V DC Motor Controller 500A Programmable Anodized Aluminum Efficient Performance 1205M 5601 for

About this item

• Feature: 1. Programmable Controller: Motor controller is designed to provide smooth, quiet, and efficient motor speed and torsion control. The addition of the ability to be programmed via the 1313?4331 handheld programmer or the 1314 PC programming station. In addition to configuration flexibility, the use of the programmer provides diagnostic and testing capabilities. 2. Rugged Construction: The controller uses rugged anodized aluminum extruded shell that meets IP65 environmental sealing standards for use in harsh environments. Ideal solution for a variety of electric vehicle applications including industrial trucks, personnel carriers, material handling vehicles, golf carts and more. 3. High Efficiency: High frequency switching and ultra low voltage drop enable high efficiency and quiet operation. Simple installation and wiring is achieved using push in connectors for control signals and plated solid copper buses for power connections. 4. Wide Compatibility: Compatible with two wire potentiometers or voltage throttles. Throttle failsafe circuitry disables the controller if the throttle cable is open. If the key is turned on while the throttle is in use, the high pedal disable feature prevents the controller from operating. 5. Safe to Use: Insert the brake diode inside the controller. Thermal protection and compensation circuits provide constant current limiting during the operating range as well as during under temperature, and over temperature cuts; there is no sudden power loss under any thermal conditions. Undervoltage cutout protects against low battery voltage, including low voltage caused by external loads. Specification: Item Type: DC Motor Controller Material: Aluminum OE: 1205M 5601, 1205M 5603 Operating Voltage: 48V Current: 500A Throttle Type: 05V Applicable: For Curtis, can also be applied to forklifts, transport trucks and so on (such as the use of other vehicles need to be programmed) Nominal Battery Voltage (Volt): 48V 1 minute current rating (amps): 500amps 5 minute current rating (amps): 350amps 1 hour rated current (amps): 200amps Plug Brake (A2 Bus): Yes PWM Operating Frequency: 15.6kHz Electrical Isolation From Heat Sink (Minimum): 500 VAC KSI Input Current (Without Contactor Engaged): 70 mA without programmer 130 mA with programmer Logic input current: <2 mA Status LED output current (maximum): < 2 mA Ten throttle types are available for these controllers: Type 0: 2wire potentiometer, 05 k Ohm Type 1: 2wire potentiometer, 5k Ohm 0 Type 2: Singleended 05V input Type 3: 2Wire Potentiometer, 4.6k Ohm 0 Type 4: 2Wire Potentiometer, 5.5k Ohm 0 Type 5: 2Wire Potentiometer, 1k Ohm 0 Type 6: ITS Input Type 7: Single ended 6.310.6 V Inputs Type 8: Single ended 612 V input Type 9: Single ended 3 wire potentiometer, 05k Ohm Operating ambient temperature range: 40 celsius to 50 celsius Storage ambient temperature range: 40 celsius to 85 celsius . Package List: 1 x DC Motor Controller Note: 1. By default, we deliver our controllers with default settings of 48V 500A 0?5k Ohm (throttle type = 0). In order to better apply the controller to your system, the buyer should confirm with the battery system voltage and throttle type (0?5k Ohm , 5k?0 Ohm or 0?5V)2. The J5 terminal on the newer 1205M controllers is not activated by default. Controller wiring is the same as older 1204M controllers without J5 terminals3. Professional installation is recommended, for buyers with no experience in controller applications, please consult your car or motor dealer and read the for CURTIS 1204M 05M 09M 21M manual carefully before purchase.4. Please double check the part number of your item, matching information is for reference only.Programmable Controller: Motor controller is designed to provide smooth, quiet, and efficient motor speed and torsion control. The addition of the ability to be programmed via the 1313?4331 handheld programmer or the 1314 PC programming station. In addit Rugged Construction: The controller uses rugged anodized aluminum extruded shell that meets IP65 environmental sealing standards for use in harsh environments. Ideal solution for a variety of electric vehicle applications including industrial trucks, per High Efficiency: High frequency switching and ultra low voltage drop enable high efficiency and quiet operation. Simple installation and wiring is achieved using push in connectors for control signals and plated solid copper buses for power connections. Wide Compatibility: Compatible with two wire potentiometers or voltage throttles. Throttle failsafe circuitry disables the controller if the throttle cable is open. If the key is turned on while the throttle is in use, the high pedal disable feature prev Safe to Use: Insert the brake diode inside the controller. Thermal protection and compensation circuits provide constant current limiting during the operating range as well as during under temperature, and over temperature cuts; there is no sudden power
