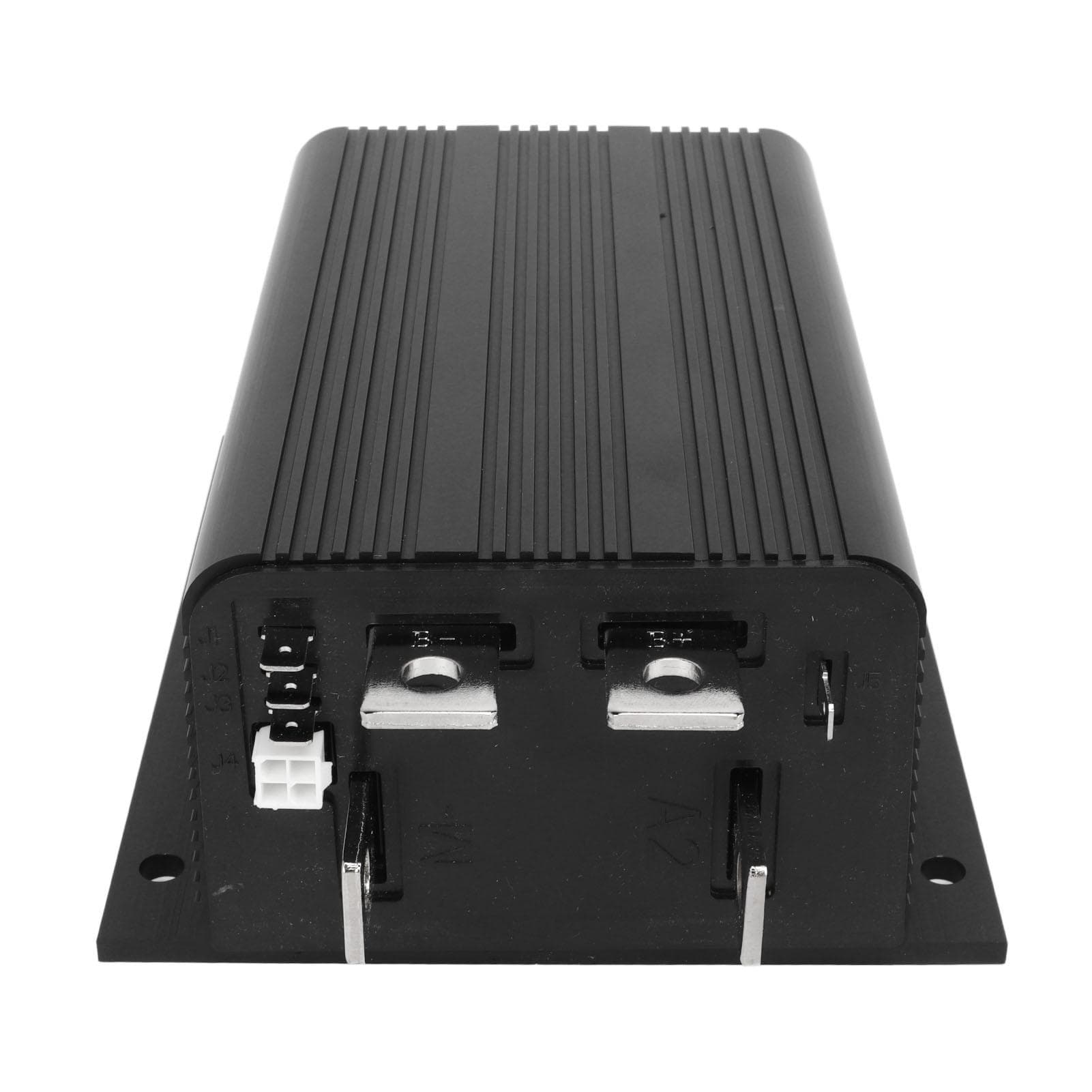

Programmable DC Motor Controller 275A 24V?36V Smooth Silent Control for Curtis 1204?004 Or 1204

About this item

• Feature: 1. Applicable Model: This 24V?36V motor controller fits for Curtis 1204M 4201, ideal for replacing an ancient for CURTIS 1204 controller (1204?004 or other 1204 controllers). 2. Programmable Controller: With the added functionality of being programmable via the for Curtis Model 1313?4401 Handhold Programmer or the 1314 PC programming station. 3. Silent Operation: This programmable series motor controllers are designed to provide smooth, silent control of motor speed and torsion, with superior performance. 4. Wide Application: Motor controller is the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf carts, etc. 5. Aluminum Housing: Motor controller replace adopts rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments. Specification: Item Type: Motor Controller Material: Metal AlloyModel: P1204M 4201 OE: 17720703This controller is to replace for Curtis 1204M 4201, it will work as replacement for Curtis 1204M 4201 P1204M 4201 is the only controller with 24V Working Voltage option in the 1204M1205M Series of for CURTIS replacement. The P1204M 4201 controller is ideal for replacing an ancient for CURTIS 1204 controller (1204004 or other 1204 controllers). With the original controller model number provided by the buyer, the seller could identify more detailed information like voltage, current and throttle type. Then the controller will be programmed to the same setting as the original one of the buyer. KEY FEATURES Norminal Battery Voltage (Volts): 24V36V 2 Minute Current Rating (amps): 275A 5 Minute Current Rating (amps): 200A 1 Hour Current Rating (amps): 125A Plug Braking (A2 Busbar): Yes OVERVIEW P1204M programmable series motor controllers are designed to provide smooth, silent control of motor speed and torsion. 1204M controllers are updated versions of the popular 1204 controllers, with the added functionality of being programmable via the for Curtis Model 13134401 Handhold Programmer or the 1314 PC programming station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability. P1204M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc. Features Include: High frequency switching and ultra low voltage drops provide high efficiency and silent operation. Simple mounting and wiring with push on connectors for control signals and plated solid copper buses for power connections. Compatible with either a two wire potentiometer or a voltage throttle. Throttle fault protection circuitry disables controller if throttle wires become open. High pedal disable feature prevents controller operation if key is turned on while throttle is applied. Plug braking diode internal to controller. Thermal protection and compensation circuit provides constant current limit over operating range and during under over temperature cutback; no sudden loss of power under any thermal conditions. Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads. Easily programmable through the for Curtis Model 13134401 Handhold Programmer or 1314 PC Programming Station. Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments. Nominal Input Voltage: 2436 V PWM Operating Frequency: 15.6 kHz Electrical Isolation to Heatsink (min.): 500 V KSI Input Current (no contactors engaged): <70 mA without programmer; <130 mA with programmer Logic Input Current: <2 mA Status LED Output Current (maximum.): <2 mA Throttle Type: 2wire 0 5k Ohm , 2wire 5k Ohm 0, or 0 5V Storage Ambient Temperature Range: 40 celsius to 85 celsius (40 Fahrenheit to 185 Fahrenheit ) Operating Ambient Temperature Range: 40 celsius to 50 celsius (40 Fahrenheit to 122 Fahrenheit ) Package Environmental Rating: ISTA 2A; electronics sealed to IP65. Package List: 1 x Motor Controller Note: 1. For buyers without controller application experience, please consult your cart or motor dealer and carefully read the instructions before purchasing2. Please double check the part number of your item, matching information is for reference only.3. If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!Applicable Model: This 24V?36V motor controller fits for Curtis 1204M 4201, ideal for replacing an ancient for CURTIS 1204 controller (1204?004 or other 1204 controllers). Programmable Controller: With the added functionality of being programmable via the for Curtis Model 1313?4401 Handhold Programmer or the 1314 PC programming station. Silent Operation: This programmable series motor controllers are designed to provide smooth, silent control of motor speed and torsion, with superior performance. Wide Application: Motor controller is the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf carts, etc. Aluminum Housing: Motor controller replace adopts rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.
