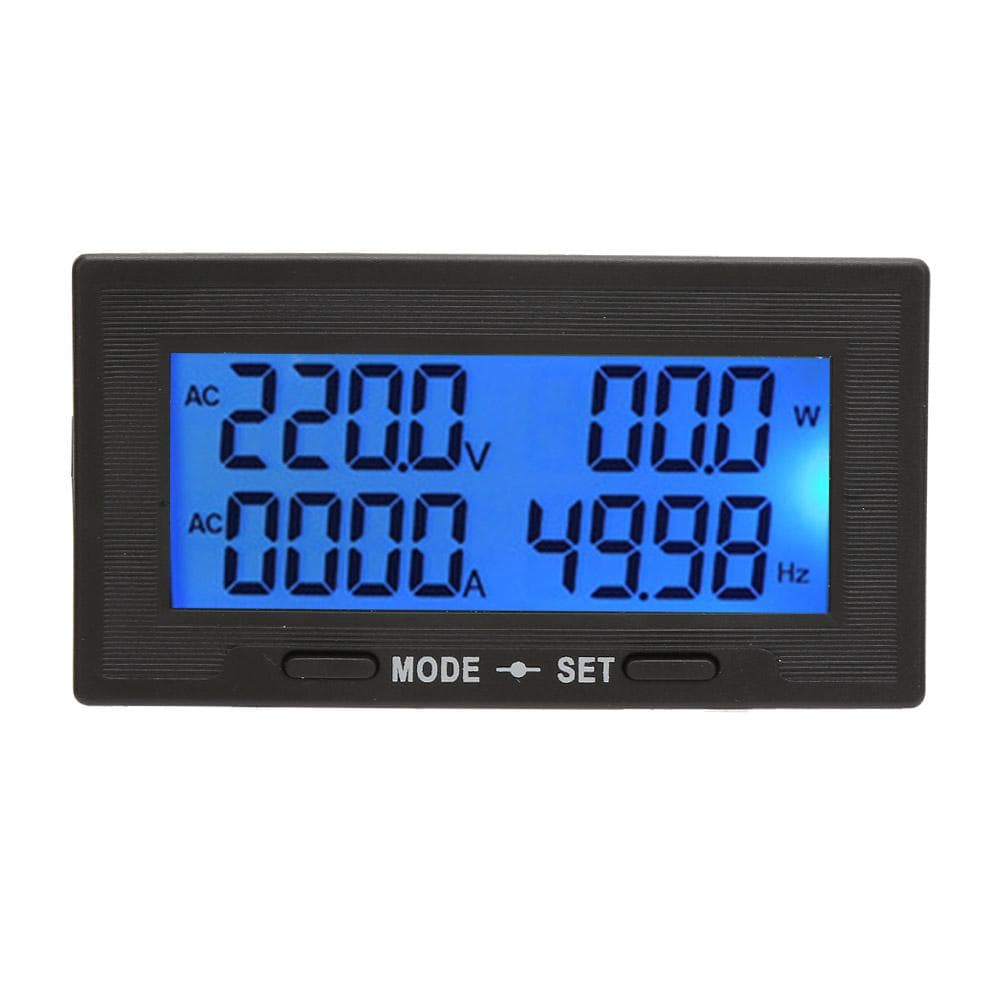

YB5140DMZ AC 0~100A 130~500V 6 in 1 Multi Function Digital Display Meter

About this item

• Features: Measurement of electrical parameters: AC voltage current active power frequency power factor energy,6 in 1. Power zeroclearing mode: key zeroclearing, automatic zeroclearing. Display Type: LCD display, blue backlight;Multiscreen display, 7 kinds of display modes optional. Blue backlight brightness adjustable: highlight, low light, not bright. The voltage, current error and other options can be calibrated by the button itself. Displays updated values for different working environments. display accuracy can be set:3bit,4bit; applicable to different requirements power down data saving function. The AC voltage, current, power and electric energy are all designed by automatic shift of decimal point has the functions of voltage, current, power upper and lower limit alarm and timeout alarm, besides the buzzer alarm, there is the optical coupling alarm output control function. Specification : Measurement range ACV130500V; ACA0100A Resolution When the voltage is less than 100V, the resolution is 0.01 V; when the voltage is greater than 100V, the resolution is 0.1V The resolution of current less than 10A is 0.001 A;Over 10A, the resolution is 0.01 A Measurement accuracy 0.5percent + 2 digit s Measurement speed about 2 times per second Active power 09999 KW Frequency 45.0065.00 Hz Power Factor 0.0001.000 Power 0.0009999 KWh Operating temperature 10 ~ + 50 celsius Working humidity 10 ~ 80percent (without condensation) Working pressure 80 ~ 106 kPa Package List: 1 * Multifunction intelligent watch head 1 * Mutual inductance coil Note: As different computers display colors differently, the color of the actual item may vary slightly from the above images. Operation Setting Manual: Code Nmae Description 1CU Calibrate Voltage Calibration voltage error 2CA Calivrate Current Calibration current error 3SP Display Speed S: Standard speed update display value L: Slow update display value F: Fast update display value 4En Power Option REA: Resumption After the power, if there is no electricity generation, will always show the power before the power supply accumulated;When the power generation, the display screen flash two times, before the power cut down the accumulated energy value will be automatically zero, and from the beginning of the accumulation; CLE: Accumulated electric power manual zero clearing ACC: After the power on, the accumulated electric energy value will not automatically clear the zero, has been accumulated 5ty Alarm Type S: Semiautomatic, as long as the alarm start, regardless of the value after the start of no change, will always alarm, unless someone for any key to remove the alarm will stop A: Full automatic, when the alarm startup value back within the scope, will automatically remove the alarm 6oU Over Voltage Value Set voltage alarm upper limit 7LU Voltage Floor Set Voltage Alarm Lower Limit 8oA Over Current Value Set current alarm upper limit 9LA Current Floor Set Current Alarm Lower Limit AoP Over Power Value Set power alarm upper limit bLP Power Floor Set Power Alarm Lower Limit Cot Over Time Alarm Countdown alarm function,00:0099 hours 59 minutes;Timeout alarm and upper and lower limits alarm can only be doublechecked don Default Optical coupling state H: No start alarm time coupling output for highlevel, that is, opencircuit state, poststart output lowlevel L: No start alarm time coupling output for low level, that is, short circuit state, post start output high level ESt Starting Delay 09999 seconds, instrument never alarm state to alarm state switch output delay time;This startup alarm will be ignored when the alarm duration is <ESt nEt End Delay 09999 seconds, the instrument from the alarm state to the unalarm state to switch the output delay time;When the release alarm duration is <nEt, the release alarm will be ignored FdS Setting Display Digits 4: Voltage, current, frequency, power factor display 4 digit 3: Voltage, current, frequency, power factor display 3 digit HrS Factory Data Reset N: Do not restore factory value Y: All settings restore factory value Measurement of electrical parameters: AC voltage current active power frequency power factor energy,6 in 1. Power zeroclearing mode: key zeroclearing, automatic zeroclearing. Display Type: LCD display, blue backlight;Multiscreen display, Blue backlight brightness adjustable: highlight, low light, not bright. The voltage, current error and other options can be calibrated by the button itself.
