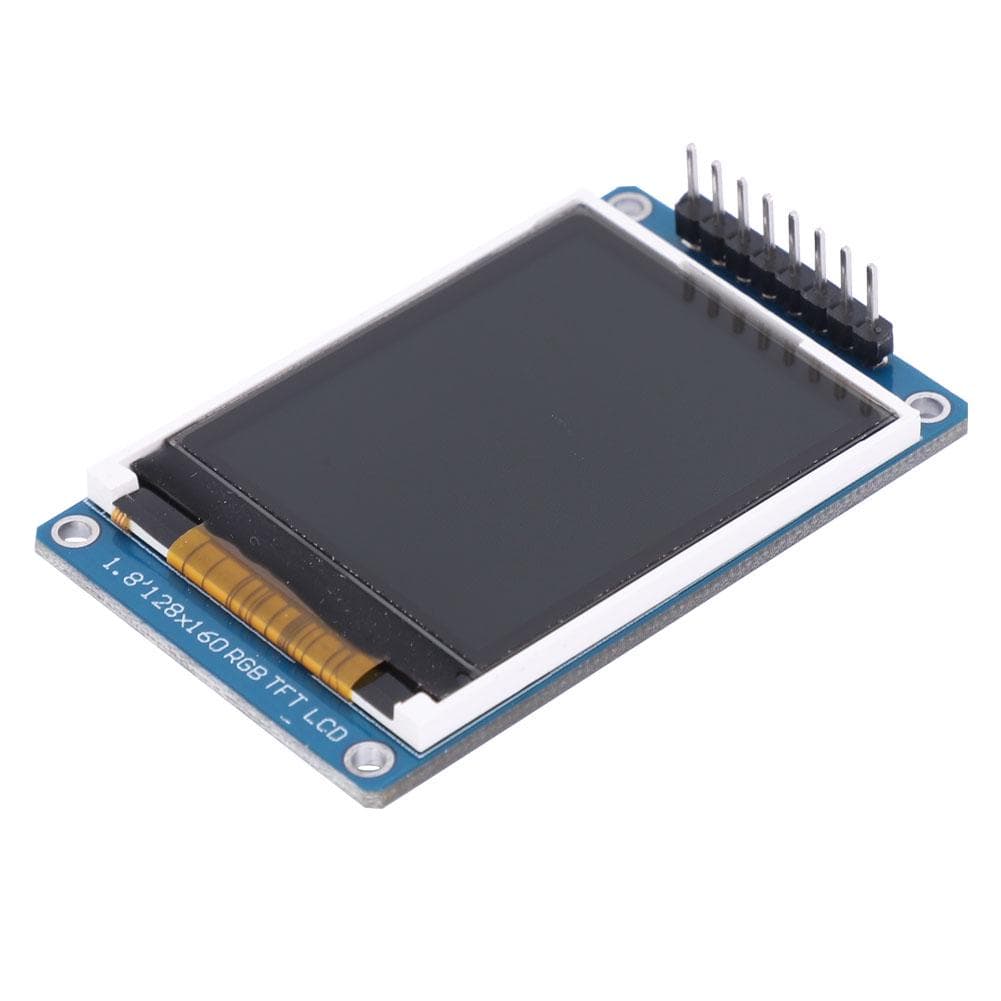

1.8Inch TFT LCD Display Screen 128RGB x 160 Resolution Serial Peripheral Interface for Arduino

About this item

• Features: The screen is connected via serial peripheral interface,very convenient. The display model is aTFT while the display format is 128RGBx160 lattice. We adopts high quality ST7735S driving IC chip. Wide range of working temperature from 20~70 celsius . The LCD effective area is 28.03x35.04 and the size of each pixel is 0.219x0.219. Specification: Item Type:LCD Display Module Size: 1.8 Inches Display Mode: ATFT Display Format: Graphics 128RGB * 160 Dot Matrix Input Data: Serial Peripheral Interface Driver IC: ST7735S Dimensional : 35(W)* 56(H)* 3.45 + 0.1(T)mm Resolution: 128RGB * 160 Dots LCD Effective Area: 28.03mm (W) * 35.04mm (H) Pixel Size: 0.219 (Width) * 0.219 (Height) Working Temperature: 20~70 degrees C Package List: 1 x Module 1 x 8Pin Pin Header The screen is connected via serial peripheral interface,very convenient. The display model is aTFT while the display format is 128RGBx160 lattice. We adopts high quality ST7735S driving IC chip. Wide range of working temperature from 20~70 celsius . The LCD effective area is 28.03x35.04 and the size of each pixel is 0.219x0.219.
