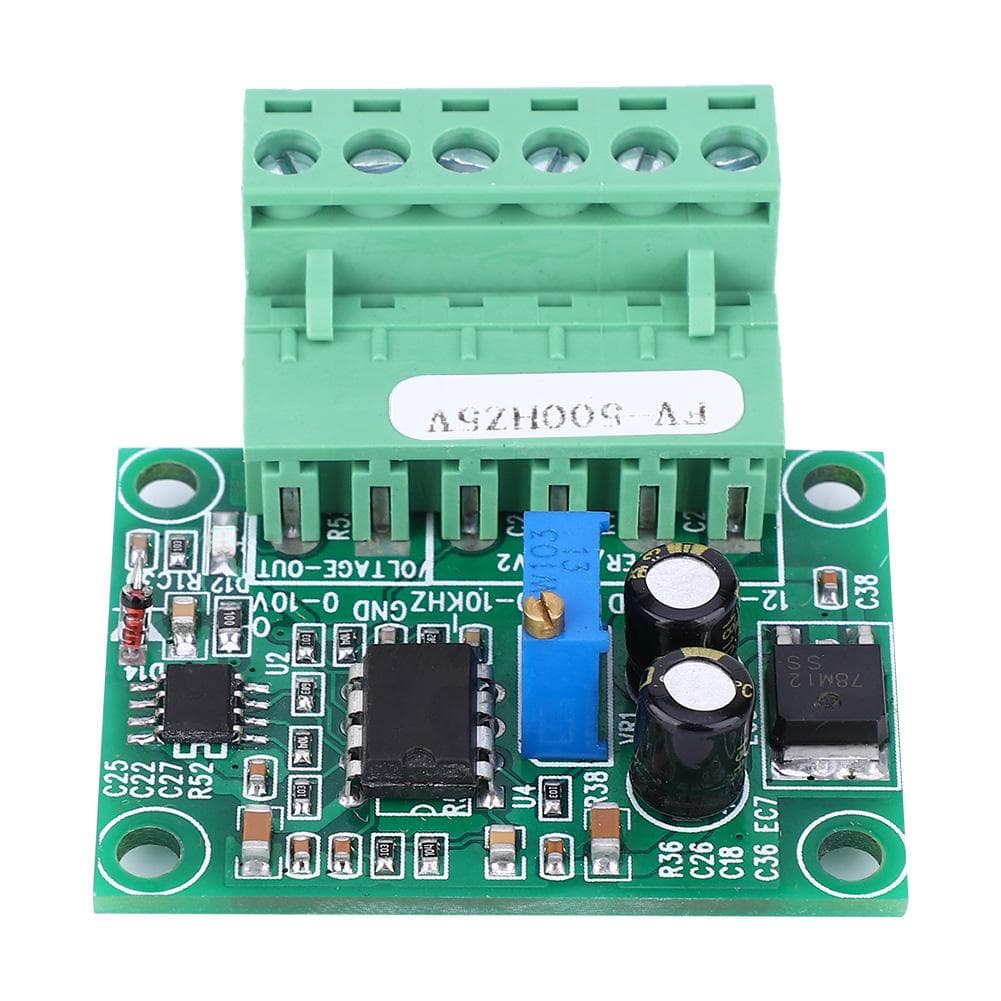

FV500Hz5V Frequency to Voltage Converter Module 05V Voltage Digital to Analog Inverter Module

About this item

• Features: 1. Convert the 0500Hz frequency pulse signal into an analog voltage signal of 05V. 2. Can be used to Convert interface between PLC and frequency, Or movement control card and converter interface matching control occasions. 3. Input pulse level is 5V 12V 24V can be directly input, no string resistor. However, the input signal frequency should be maintained for more than 0.5 seconds. 4. The output current is 5MA. 5. Frequency and voltage conversion module, response time is about 0.30.5 seconds. Specification: Condition: 100percent Brand New Item Type: Frequency To Voltage Conversion Module Model: FV500Hz5V Function: Input 0500Hz frequency is converted to 05V Output Current: 5MA Response Time: 0.30.5 seconds Size: Approx. 4.5 x 4.7 x 1.7cm 1.8 x 1.9 x 0.7in Package List: 1 x Frequency To Voltage Conversion Module Precautions for use: 1. The multiturn potentiometer on the board is used to calibrate the corresponding relationship between frequency and voltage. 2. The input power supply voltage range is 1230VDC. It is recommended that the power supply voltage be 1524VDC. When the 12V level is used, the power supply cannot be powered by 12VDC. At least 15VDC power supply is required. If you need to use 12V power supply, you can also order 12VDC. Powered converter. At 24 levels, the power supply needs to be powered by 24VDC 3. The signal input is isolated by diaphragm. Guaranteed antiinterference ability. 4. For use with PLC, support NPN type. Must have a ground wire. 5. If you need to use an encoder, the encoder should be rotated at a constant speed for more than 0.5 seconds. 6. Frequency and voltage conversion module, response time is about 0.30.5 seconds. 7. If the signal input is turbine flow, etc., due to signal matching, an 817 diaphragm and a resistor must be added to match the flowmeter to normal function. 8. When using the correspondence, if there is a deviation, you can adjust the blue potentiometer on the board to adjust. At the time of shipment, we have adjusted the FV potentiometer to a certain correspondence. It is generally not recommended to adjust it by itself. Identification and wiring: 1. 1230VPower input positive 2. GNDPower input negative (common ground wire) 3. GNDPulse frequency input negative (common ground wire) 4. 010KHZPulse frequency input positive 5. GNDPulse frequency input negative (common ground wire) 6. 010V Analog 010V level output Correspondence & Linear Relationship: 50Hz is converted to 0.5V 250Hz is converted to 2.5V 500Hz is converted to 5V Convert the 0500Hz frequency pulse signal into an analog voltage signal of 05V. Can be used to Convert interface between PLC and frequency, Or movement control card and converter interface matching control occasions. Input pulse level is 5V 12V 24V can be directly input, no string resistor. However, the input signal frequency should be maintained for more than 0.5 seconds. The output current is 5MA. Frequency and voltage conversion module, response time is about 0.30.5 seconds.
