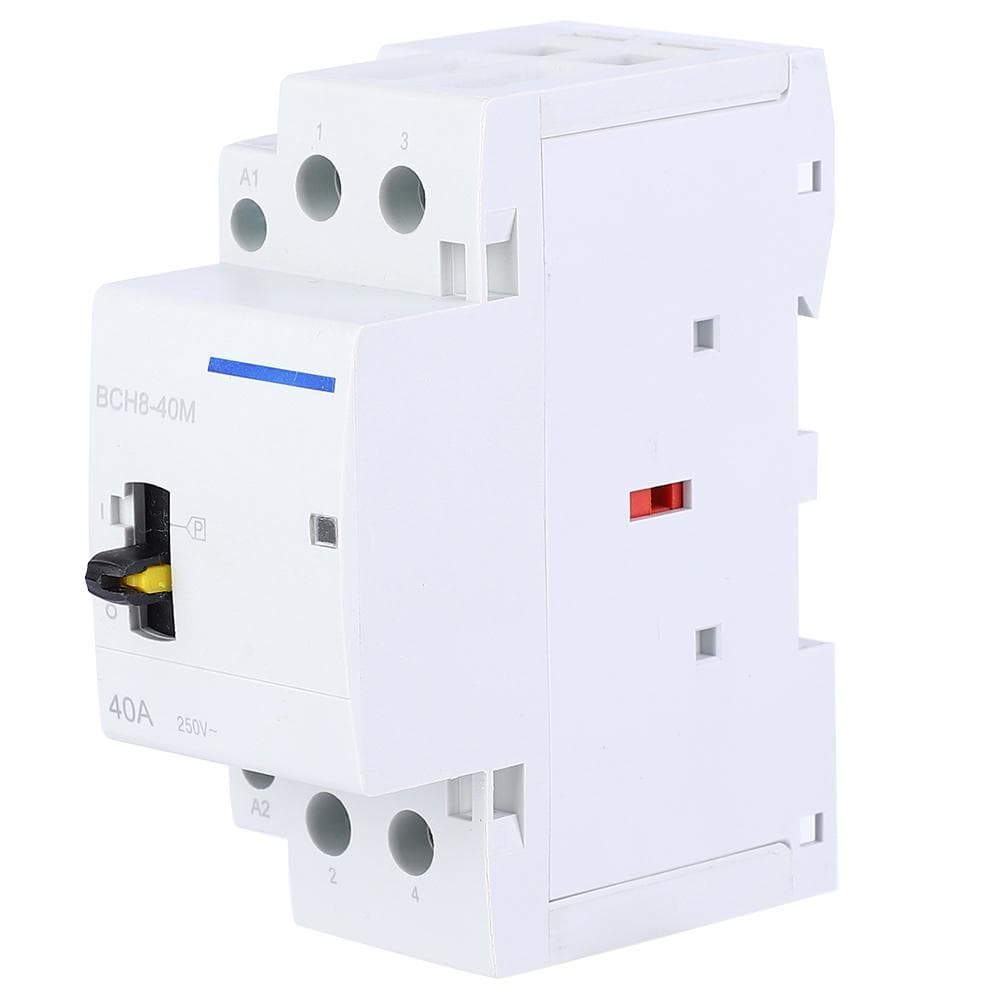

BCH840M 2P 40A 230V Household AC Contactor DIN Rail Mount with Manual Control Switch (2NO)

About this item

• Features: Super long life, the contactor can withstands 100,000 fullload on and off under the AC7a load category. Super silent, it eliminates the obvious impact sound of the traditional contactor at the moment of pullin and the lowfrequency hum during the operation of the contactor. Super energysaving, in the working state, the contactor needs to maintain a long time of energization to keep the coil closed, and a large amount of electric energy is consumed in this process. This contactor greatly reducing the keeping power of the contactor with the optimized electromagnetic system. Adopt superior insulation material to enhance the operation security to a great extent. Compact modularization design, DIN rail mount. Specification: Rated Control Supply Voltage (Us): AC230V Rated Current: 40A(AC7a), 18A(AC7b) Conventional Thermal Current (lth): 63A Rated Insulation Voltage (Ui): 500VAC Rated Working Voltage (Ue): 250VAC Number of Contact: 2NO, 2NC, 1NO+1NC (Optional) Maximum Switching Operation Times: 30timeshour Electrical Life: 100,000 times Mechanical Life: 1 million times Rated Duty: 1) 8hour duty This is the basic duty, and conventional heating current Ith of the contactor is determined by this working system. 2) Intermittent periodic duty The rated operating frequency of the contactor under this duty is 30 timesh, and the load factor is 40percent . Action(Operation) Condition: When the ambient temperature is in the range of 5 degrees C to +60 degrees C, apply the rated control power supply voltage Us to the contactor sucking coil to make it heat up to a steady state, and the contactor should be reliably closed under any voltage of (85percent ~ 110percent ) Us. Its release voltage is (20percent ~75percent ) Us. Package List: 1 x AC Contactor Super long life, the contactor can withstands 100,000 fullload on and off under the AC7a load category. Super silent, it eliminates the obvious impact sound of the traditional contactor at the moment of pullin and the lowfrequency hum during the operation of the contactor. Super energysaving, in the working state, the contactor needs to maintain a long time of energization to keep the coil closed, and a large amount of electric energy is consumed in this process. This contactor greatly reducing the keeping power of the co Adopt superior insulation material to enhance the operation security to a great extent. Compact modularization design, DIN rail mount.
