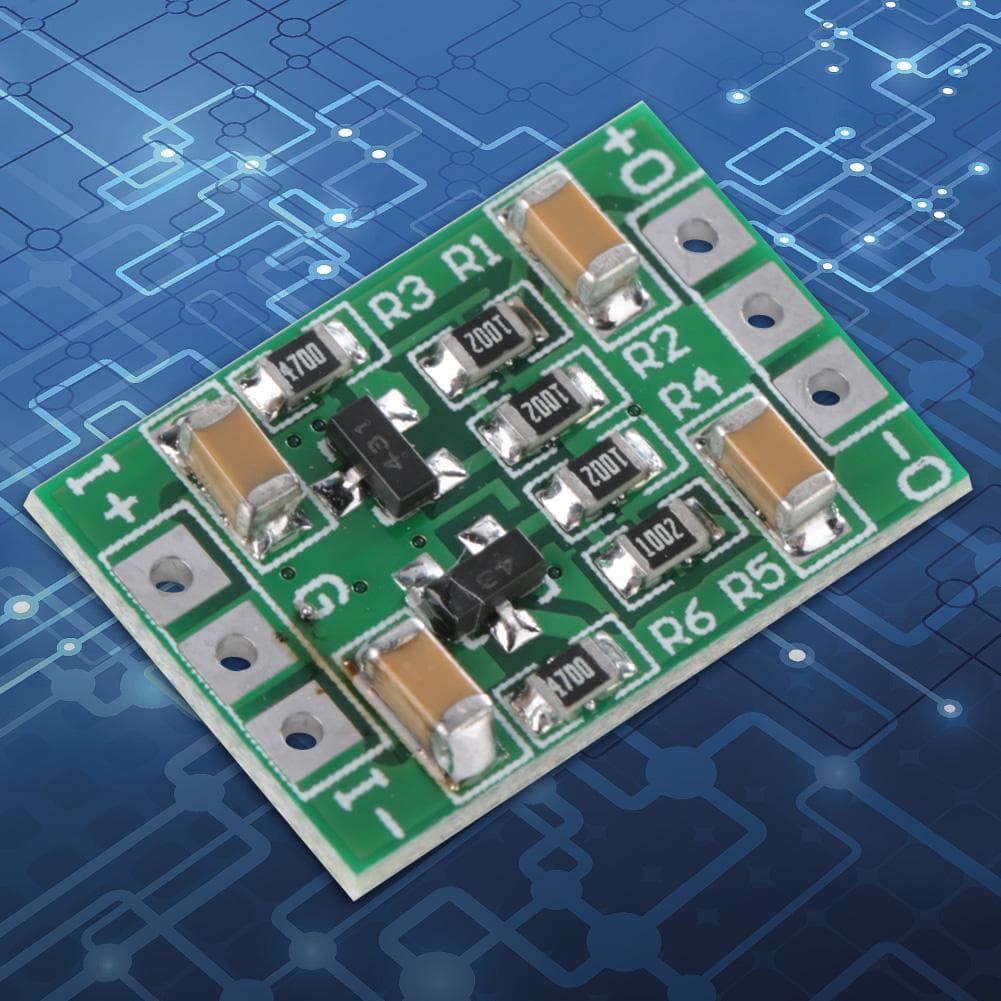

Input Wide Voltage Output +7.5V Precision Voltage Reference Source Board ( Output +7.5VDC)

About this item

• Features: TL431 Positive & Negative Dual Output +1percent Precision voltage reference source Module Applications:Operational Amplifier : LM324 LM358 AD101 AD201 Etc.ADC : ADC0809 MAX160 AD7705 Etc.DAC :DAC0832 PCF8591 TL5615 MPC4822 TL5610.Replace AD584 LM399 LM4040 MC1403 LM326 AD637AD584;Audio equipment;RS232 RS485 RS422 Bus;LCD voltage reference;Instrumentation equipment; WifiRouterEthernet devices The terminal has good contact performance, ensuring stable working Adopted of high quality electronic components, and precision process,itensures for the durability 2.54mm pin pitch,for MCU Development Board Breadboard friendly. Specification: Output voltage:+2.5V,+3.3V, + 5V, +7.5V , +10V, +12V (Optional) +2.5V : Input Voltage+3.510.1V,Output Voltage+2.5V Input Current 2.516MA,MAX Output Current 0.614MA +3.3V : Input Voltage+4.310.9V,Output Voltage+3.3V Input Current 2.515MA,MAX Output Current 0.613MA + 5V : Input Voltage+612.6V,Output Voltage+5V Input Current 2.116MA,MAX Output Current 0.113MA +7.5V : Input Voltage+8.515.1V,Output Voltage+7.5V Input Current 316MA,MAX Output Current 114MA +10V : Input Voltage+1117.6V,Output Voltage+10V Input Current 315MA,MAX Output Current 113MA +12V : Input Voltage+1319.6V,Output Voltage+12V Input Current 314MA,MAX Output Current 112MA Accuracy :+1percent Operating temperature range : 40~+125 Degrees Celsius Storage temperature range : 65~+150 Degrees Celsius Size : 19 * 13 * 2.8mm 0.7 * 0.5 * 0.1in Weight: 2.5 g 0.1 oz(approx.) Package list: 1 x Voltage Reference source Board 100percent brand new and high quality TL431 Positive & Negative Dual Output +1percent Precision voltage reference source Module Applications:Operational Amplifier : LM324 LM358 AD101 AD201 Etc.ADC : ADC0809 MAX160 AD7705 Etc.DAC :DAC0832 PCF8591 TL5615 MPC4822 TL5610.Replace AD584 LM399 LM4040 MC1403 LM326 AD637AD584;Audio equipment;RS232 RS485 RS422 Bus;LCD voltage reference;In The terminal has good contact performance, ensuring stable working Adopted of high quality electronic components, and precision process,itensures for the durability
