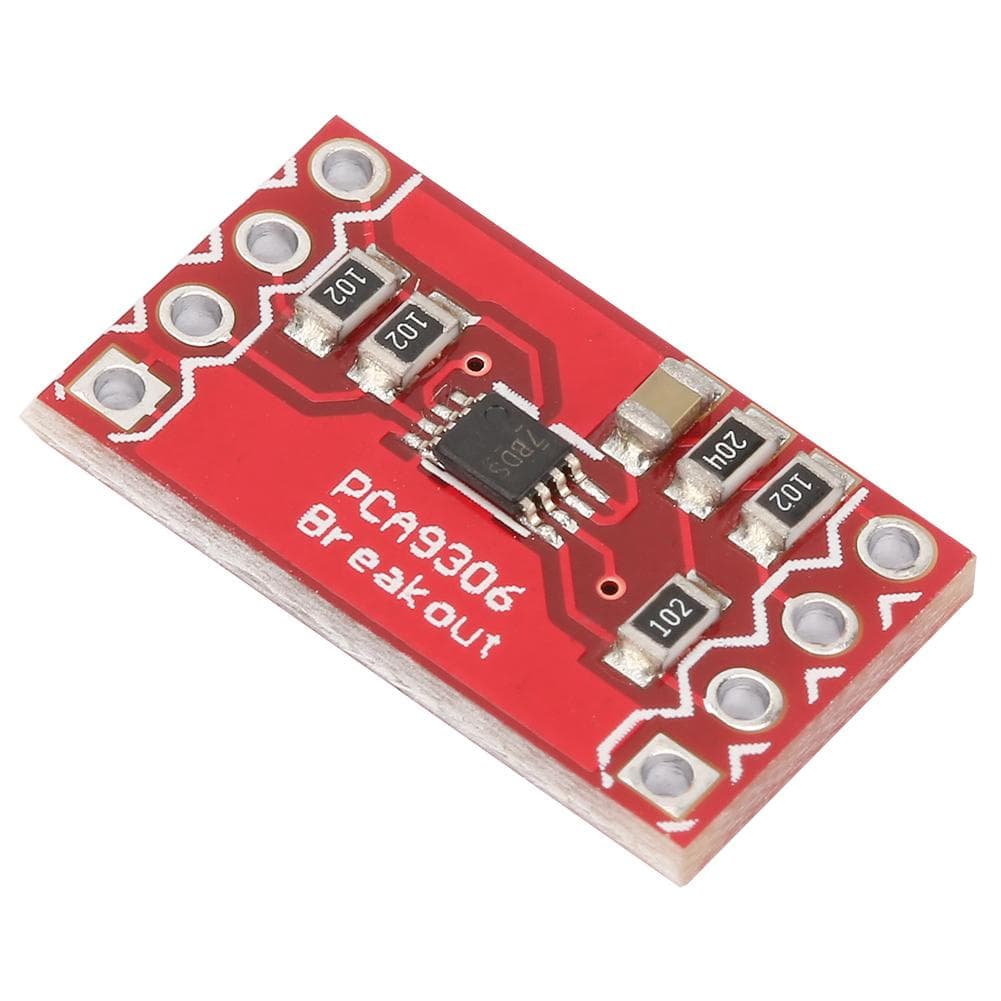

PCA9306 Dual Bidirectional VoltagE Level Translator Breakout Board Module

About this item

• This is a breakout board for the PCA9306 dual bidirectional voltagelevel translator. Because different parts sometimes use different voltage levels to communicate, voltage level translators can be the key to making different parts play nice.The PCA9306 is a dual bidirectional I2Cbus and SMBus voltagelevel translator that s operational on the low side from 1.0 V to 3.6 V and on the high side from 1.8 V to 5.5 V. Simply apply your low and highside reference voltages to the VREF1 and VREF2 respectively, connect your IO and drive the Enable pin high to open bidirectional voltage translation without the use of a direction pin! Features: 2bit bidirectional translator for SDA and SCL lines in mixedmode I2Cbus applications Standardmode, Fastmode, and Fastmode Plus I2Cbus and SMBus compatible Less than 1.5 ns maximum propagation delay to accommodate Standardmode and Fastmode I2Cbus devices and multiple masters Allows voltage level translation between: 1.0 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias; 1.2 V Vref(1)and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias;1.8 V Vref(1)and 3.3 V or 5 V Vbias; 2.5 V Vref(1) and 5 V Vbias; 3.3 V Vref(1) and 5 V Vbias Provides bidirectional voltage translation with no direction pin Low 3.5 Ohm ONstate connection between input and output port provides less signal distortion Specification: Model:PCA9306 Type:Level Translator Breakout Color:red Package list: 1 x PCA9306 breakout board 2bit bidirectional translator for SDA and SCL lines in mixedmode I2Cbus applications Standardmode, Fastmode, and Fastmode Plus I2Cbus and SMBus compatible Less than 1.5 ns maximum propagation delay to accommodate Standardmode and Fastmode I2Cbus devices and multiple masters Allows voltage level translation between: 1.0 V Vref(1) and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias; 1.2 V Vref(1)and 1.8 V, 2.5 V, 3.3 V or 5 V Vbias;1.8 V Vref(1)and 3.3 V or 5 V Vbias; 2.5 V Vref(1) and 5 V Vbias; 3.3 V Vref(1) and 5 V Vbias Provides bidirectional voltage translation with no direction pin
