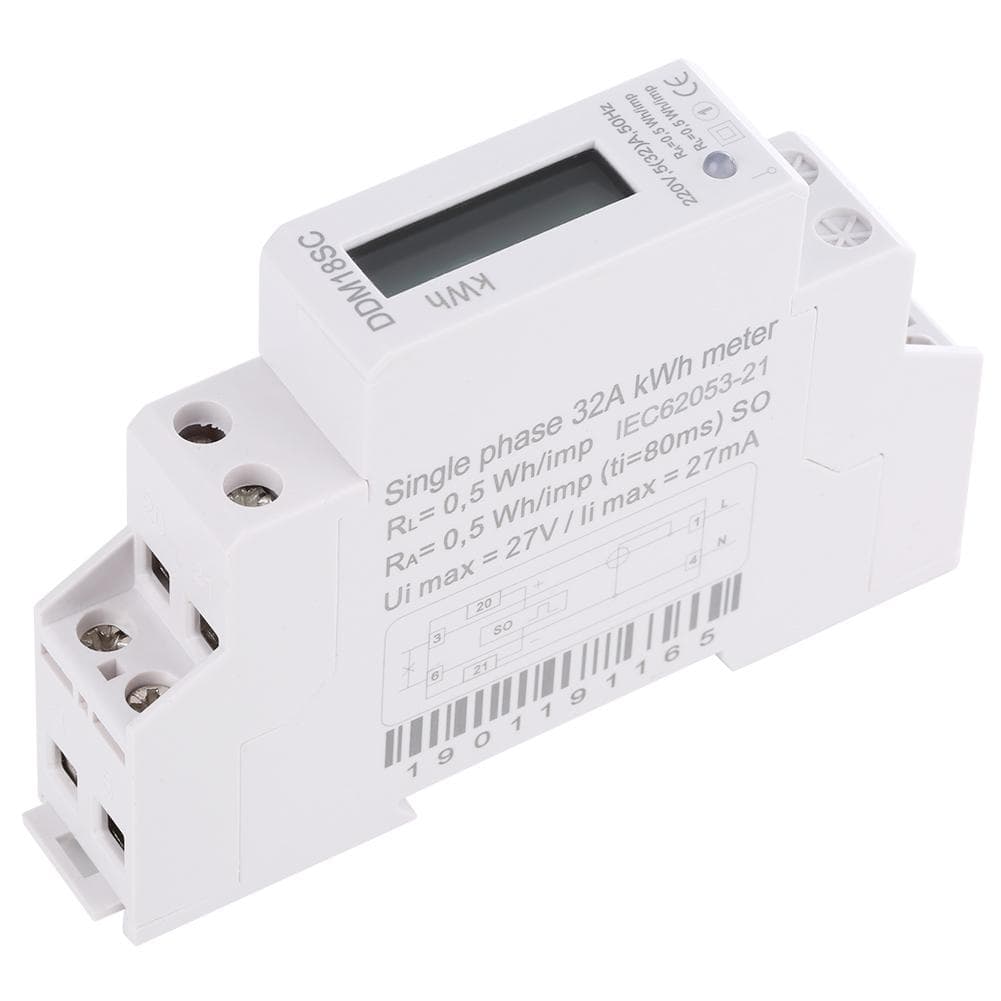

1P LCD Digital Display Single Phase Din Rail Electricity Power Consumption Energy Meter

About this item

• Features: 1. Small size, light weight and beautiful appearance 2. Good reliability and easy installation 3. 35mm standard DIN rail mounting, in accordance with standard DIN EN50022. 4. Single pole width (modulus 18mm) in accordance with DIN43880. 5. The standard configuration 5+1 LCD display (99999.1KWh) 6. Standard configuration pulse output passive (polarity), select remote pulse output passive (nonpolar). It is easy to contact with various AMR systems and conforms to the standards IEC 6205331 and DIN43864. 7. Double color LED indicates the power status (green) and the energy pulse signal (red). 8. Automatically detect the flow direction and command of the load current 9. Oneway measurement of singlephase twowire active power. 10. Direct S type connection 11. Extend the terminal cover to protect the use. Specification: Condition: 100percent Brand New Model: DDM18SC Accuracy: Level 1 Reference Voltage: 220V230V, 5060Hz Current Specifications: 5(20)A, 5(25)A, 5(30)A, 5(32)A Starting Current: 0.02A Insulation Performance: AC Voltage 4KV, 1 minute, 1.250us waveform impulse voltage 6KV Display mode: LCD (5+1) Display Installation Method: Rail Installation Weight: Approx. 94g 3.3oz Package List: 1 * DDM18SC Energy Meter 2 * Shell Accessories Small size, light weight and beautiful appearance Good reliability and easy installation 35mm standard DIN rail mounting, in accordance with standard DIN EN50022 Single pole width (modulus 18mm) in accordance with DIN43880. The standard configuration 5+1 LCD display (99999.1KWh)
