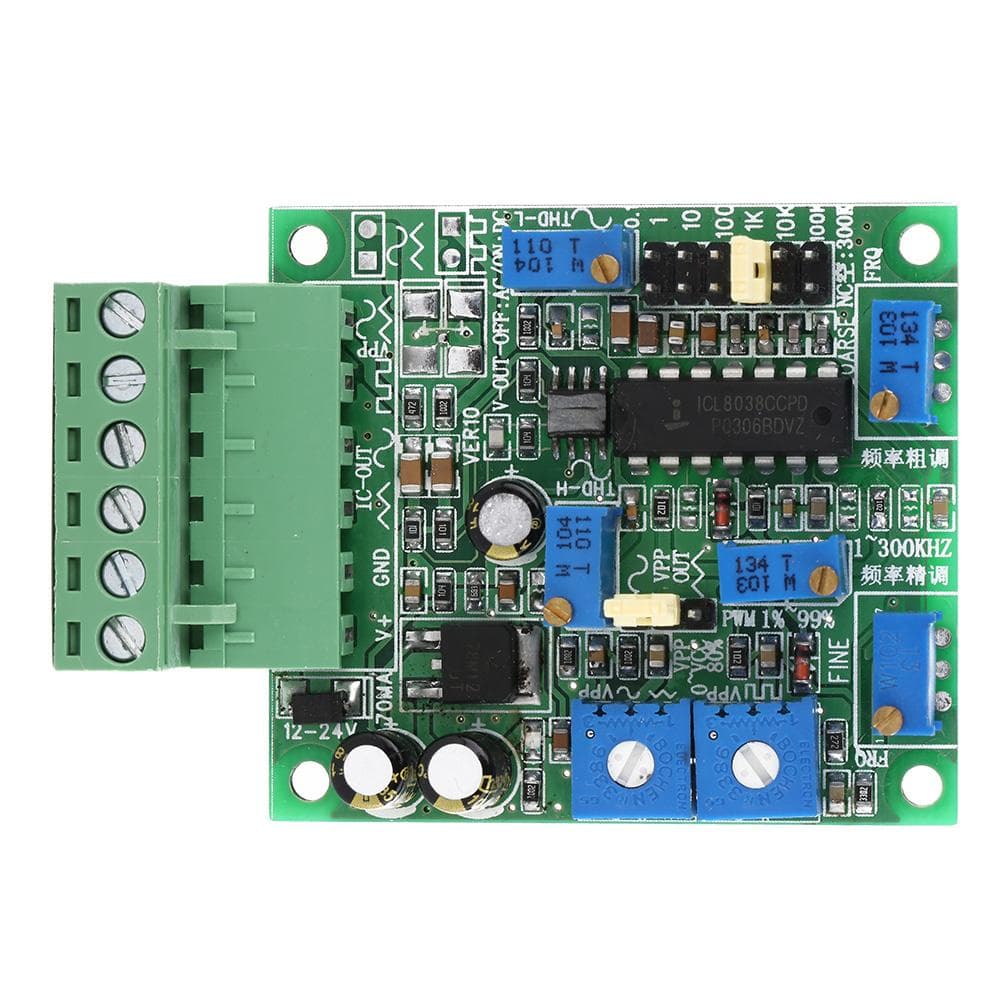

SG8038 DDS Signal Generator Sine Triangle Square Wave Board Module

About this item

• Overview: The main components of the product are ICL8038 signal generation chip, overbandwidth highvoltage amplifier, voltage regulator power supply, signal parameter setting circuit, input and output interface, etc. It can output sine wave, square wave (rectangular wave PWM), triangle wave (positive triangle wave, antisawtooth wave, positive sawtooth wave) signal. Output signal amplitude VPP adjustable, distortion THD adjustable, output PWM adjustable, frequency FRQ adjustable. Strong output drive capability. Can be used for a variety of related occasions as a signal generator. Features: A Signal generator capable of producing sine, triangular, and square wave outputs. The output signal frequency and duty ratio remain unchanged when the power supply signal changes by adding a stabilized power supply. The output signal is more stable. Add anti connect anti reverse protection for power input. Frequency shift setting the shift pin to 7 range. Frequency regulation is divided into fine adjustment and fine adjustment 2 multi turn precision potentiometer, high precision of frequency control. Specification: Condition: 100percent brand new Weight: 32g1.1oz Model: SG8038 A. Function and use 2.11. Cooling mode: natural cooling (the normal operating temperature is not more than 40 degrees). 2.12. Use: can not be placed in other heating equipment, to avoid dust, oil mist, corrosive gas, humidity and strong vibration places. Flammable gases, conductive dust or liquids are prohibited. 2.13. Operating temperature: 15~+45 c. 2.14. Working humidity: 40percent ~90percent . 2.15. Permissible vibration: less than 1055hz 0.15mm 2.16. Storage temperature: 20 to +65 celsius 2.17. Space interference waves: no requirement B.Performance index parameters: 1. Mechanical structure and electronic circuit parameters of the main machine 3.1.1. Input voltage: DC1224v 3.1.2. Input current and power consumption: Minimum standby current: 35MA24V Maximum allowable operating current: 75MA24V Allowable starting surge peak maximum current: 1A 3.1.3 allowable input power ripple: 200MV 3.1.4. Frequency adjustment range: 1hz350khz, 7gear dualprecision multiturn potentiometer adjustment, high precision of frequency control. 3.1.6.PWM duty cycle is adjustable from 5percent to 100percent 3.1.7 square wave, PWM amplifier output VPP amplitude adjustable range: 0~VCC(power supply input voltage 2V). 3.1.8. Adjustable range of output VPP amplitude of triangular wave sine wave amplifier: 0~23VCC(about 70percent of the input voltage of power supply, the output amplitude can be increased if the requirement of distortion degree is not high). . 3.1.9. Amplifier output signal current capacity 20MA circuit 3.1.10. Triangular wave and sine wave signals straight out of the chip have the smallest distortion but weak driving ability. In addition, the low end of the wave type of this signal is not to the ground (that is, floating ground, there is bottom noise, raise a certain amplitude on the ground wire and then waveform. All ICL8038 chips are like this. If you want to use these two interfaces, you should pay attention to whether they match the external circuit of the user. 3.1.11. Module startup time. The time between the module being powered on and the normal signal output. The output time of the amplifier is relatively long, ranging from 2 to 3 seconds. During this time, the waveform amplitude increases from slow full to set value. This amplifier can play the role of power buffering. Reduce the impact of terminal. Operating instructions and others: A. Sine wave debugging: 1. Adjust PWM to 50percent . 2. The frequency FRQ jumping pin and potentiometer are set to OK. 3. THD distortion LH2 potentiometer has small symmetrical distortion in wave mode. 4. VPP potentiometer output amplitude up and down without cutting the top. B. Square wave and PWM debugging: 1. Setting of frequency FRQ jumper needle and potentiometer is OK. 2. VPP potentiometer output amplitude upper and lower top edge not hypotenuse. Try to be a right Angle. 3. Duty cycle required for setting square wave in PWM potentiometer. C. Triangular wave debugging: 1. Adjust PWM to 50percent (positive triangular wave) 2. Set PWM to <50percent (positive sawtooth wave) 3. Set PWM to >50percent (antialiasing wave) 4. The frequency FRQ jumping pin and potentiometer are set to OK. 5. VPP potentiometer output range does not cut the top D. Some basic concepts about signals. AC signal: signal wave energy alternates between GND ground wire and GND ground wire. DC signal: signal wave energy changes alternately above GND ground wire. FRQ: F = 1 T PWM DUTY = HT + LT (HT) * 100percent Different wave types, the various value calculation formula is different. To consult the table calculation, or with the instrument measurement. There are many types of V values, commonly used as follows: PEAK value, PEAK value VPP, average value VAVG, true effective value TVRMS, effective valueRMS VRMS Package List: 1 x Signal Generator Module Note: 1. Ensure the power supply is between 1232V. If the battery is powered, the full voltage and low voltage of the battery must also meet this requirement. 2. Straight triangular wave and sine wave signals from the chip have the smallest distortion but weak driving ability. In addition, the low end of the wave type of this signal is not to the ground (that is, floating ground, there is bottom noise, raise a certain amplitude on the ground wire and then waveform. All ICL8038 chips are like this. If you want to use these two interfaces, you should pay attention to whether they match the external circuit of the user. 3. Module startup time. The time between the module being powered on and the normal signal output. The output time of the amplifier is relatively long, ranging from 2 to 3 seconds. During this time, the waveform amplitude increases from slow full to set value. This amplifier can play the role of power buffering. Reduce the impact of terminal. Must be evaluated before use. This power on delay, slow start function can meet the customer s requirements, whether there is a conflict. 4. It is suggested to use a lower frequency under the premise of meeting the use requirements. This will improve job stability. 5. When the PWM is adjusted to 100percent , the output has no waveform and is always in a high level state. Therefore, when setting the potentiometer adjustment in PWM, do not overdo it (do not overdo it clockwise). If you overdo it, you will not see the waveform output. If it is found that there is no waveform output, the multiturn PWM regulating potentiometer can be rotated counterclockwise until there is waveform output (when the counterclockwise is turned to the end, there is also 5percent 10percent PWM with waveform output, and the minimum PWM duty cycle ratio will be different with different frequencies). The multi turn precision potentiometer used in this product is 24 turn. 6. If the square wave or rectangular waveform with very precise frequency and duty ratio is required, please note that PWM setting will affect the slight change of frequency, and the PWM and frequency shall be adjusted back and forth to achieve the desired accuracy. In addition, if the PWM output amplitude modulation is too low, it will affect the duty cycle measurement accuracy and waveform distortion degree of PWM. 7. For very precise sinusoidal waveforms, note that when adjusting the peak and trough of two THD potentiometers, they will interact with each other, but only slightly. If the requirements are very high, this will be back and forth to adjust thdl, H these two potentiometers to meet the requirements. In addition, in order to output the sine wave, there is a premise: PWM amplitude potentiometer must be adjusted to the maximum output, determined to be 50percent of the duty cycle, and then to correct the thdl H two potentiometers, in order to achieve high precision sine wave output. A Signal generator capable of producing sine, triangular, and square wave outputs. The output signal frequency and duty ratio remain unchanged when the power supply signal changes by adding a stabilized power supply. The output signal is more stable. Add anti connect anti reverse protection for power input. Frequency shift setting the shift pin to 7 range. Frequency regulation is divided into fine adjustment and fine adjustment 2 multi turn precision potentiometer, high precision of frequency control.
