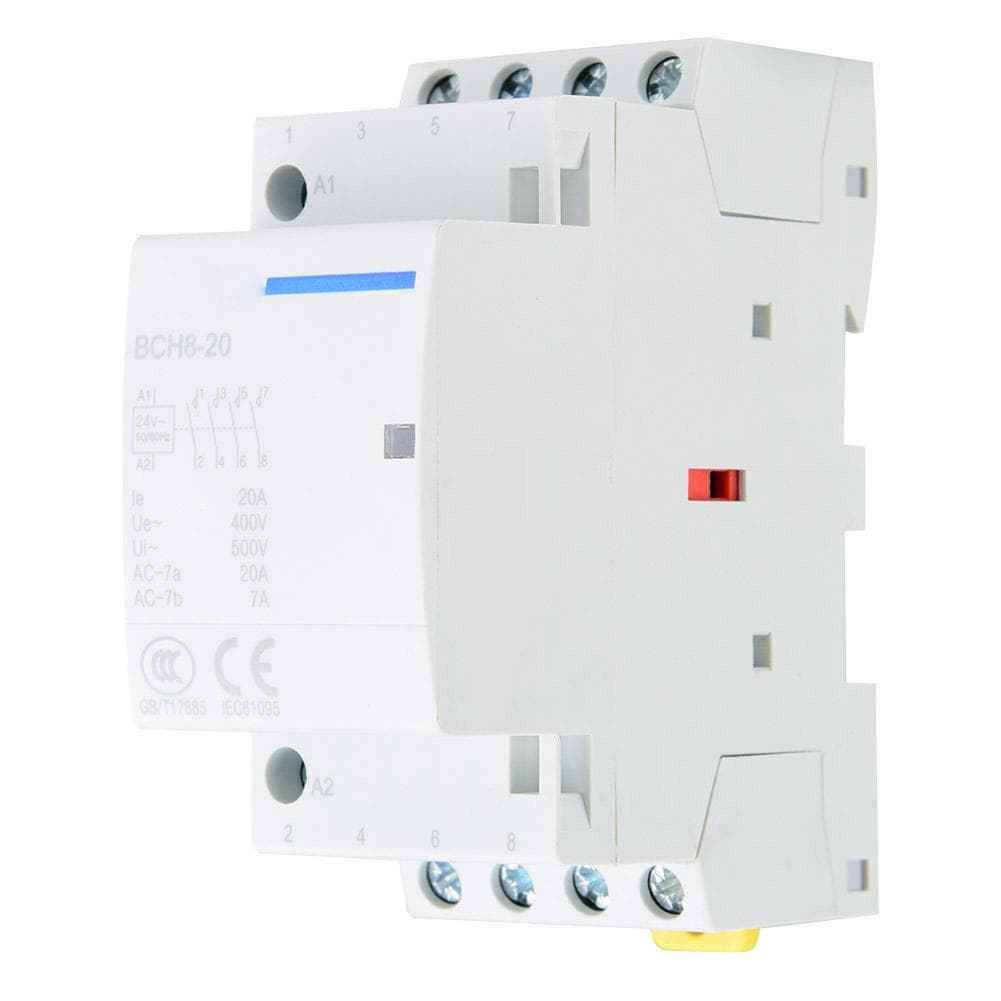

4P 4NO 20A Household AC Contactor DIN Rail Mount (24V)

About this item

• Features: Designed for household applications, 35mm DIN rail mount. Adopt superior insulation material to enhance the operation security to a great extent. Compact modularization design, easy to mount. A wiring diagram is printed on the surface of the contactor. No noise and electric spark during operation. Specification: Rated Current: 20A(AC7a), 7A(AC7b) Conventional Thermal Current (lth): 25A Number of Poles: 4P(4NO) Maximum Number of Switching Operations: 30timeshour Electrical Life: 100,000 times Mechanical Life: 1,000,000 times Package Weight: Approx. 219g Rated Duty: 1) 8hour duty This is the basic duty, and conventional heating current Ith of the contactor is determined by this working system. 2) Intermittent periodic duty The rated operating frequency of the contactor under this duty is 30 timesh, and the load factor is 40percent . Action(Operation) Condition: Package list: 1 * AC Contactor Designed for household applications, 35mm DIN rail mount. Adopt superior insulation material to enhance the operation security to a great extent. Compact modularization design, easy to mount. A wiring diagram is printed on the surface of the contactor. No noise and electric spark during operation.
