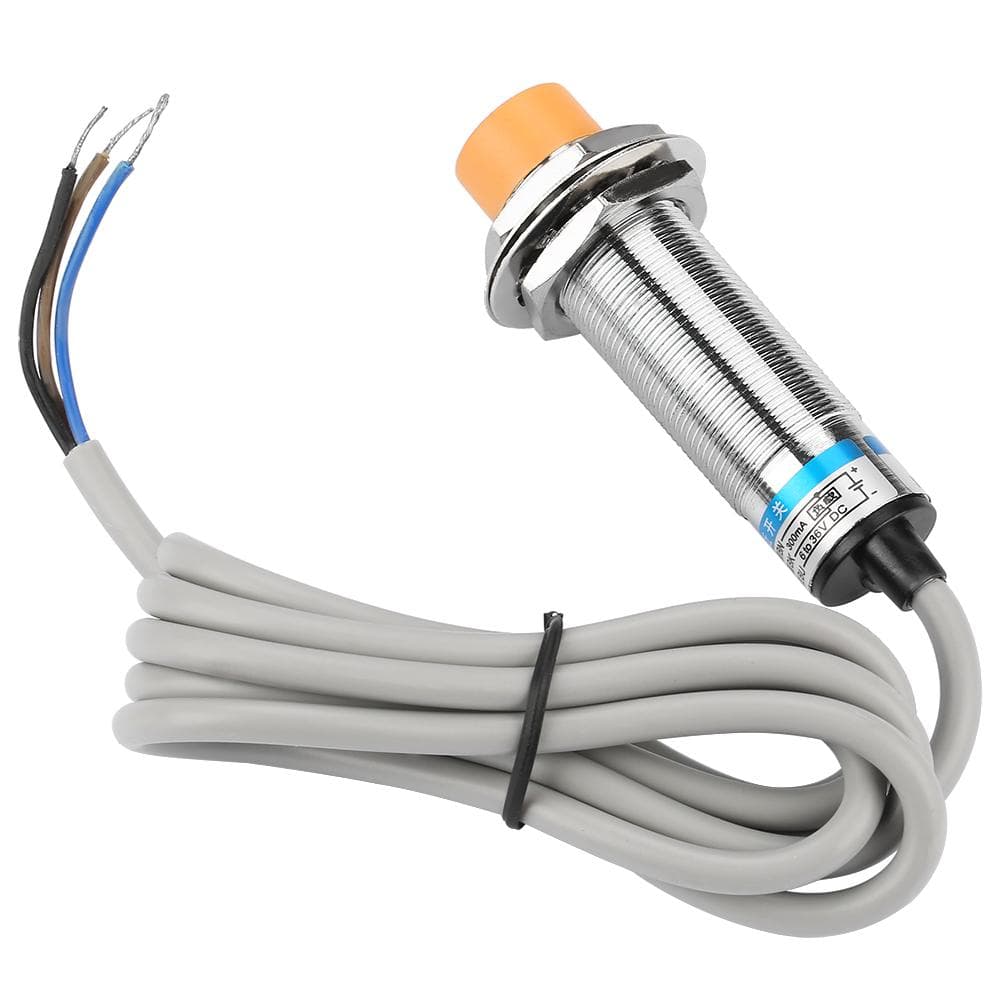

8mm Inductive Proximity Sensor Switch DC NPN 3Wire Normally Open LJ18A38ZBX

About this item

• Features: This is a normally open proximity switch sensor with 8mm detection distance. When proximity switch is close to some target object, it will send out control signal. It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching. High sensitivity, quick response, stable performance. Noncontact detection avoids the sensor and the target object from damages. Specification: Model: LJ18A38ZBX Detection distance: 8mm + 10percent Setting distance: 07mm Delay distance: <10percent of detection distance Detection object: Magnetic metal(The detection distance decreases when it is nonmagnetic metal) Standard detection object: Iron 30*30*1mm Response frequency: 0.5kHz Supply voltage: DC1224V (636V) impulse (PP) below 10percent Withstand voltage: AC1000V 5060Hz 1min Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA Control output: N.P type: <300mA, D type: <200mA, A type: <400mA Loop protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection, type A: surge absorption Ambient temperature and humidity: 30~65 celsius , 3595percent RH Temperature influence: Temperature range 30~65 celsius , at 23 celsius , + 15percent detection distance; Temperature range 25~60 celsius , at 23 celsius , + 10percent 0detection distance Insulation impedance: >50M Ohm Housing material: Nickel plated brass Detection surface: ABS Weight: Approx. 80g2.8oz Package list: 1 * Inductive Proximity Switch This is a normally open proximity switch sensor with 8mm detection distance. When proximity switch is close to some target object, it will send out control signal.? It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching.? High sensitivity, quick response, stable performance. Noncontact detection avoids the sensor and the target object from damages.
