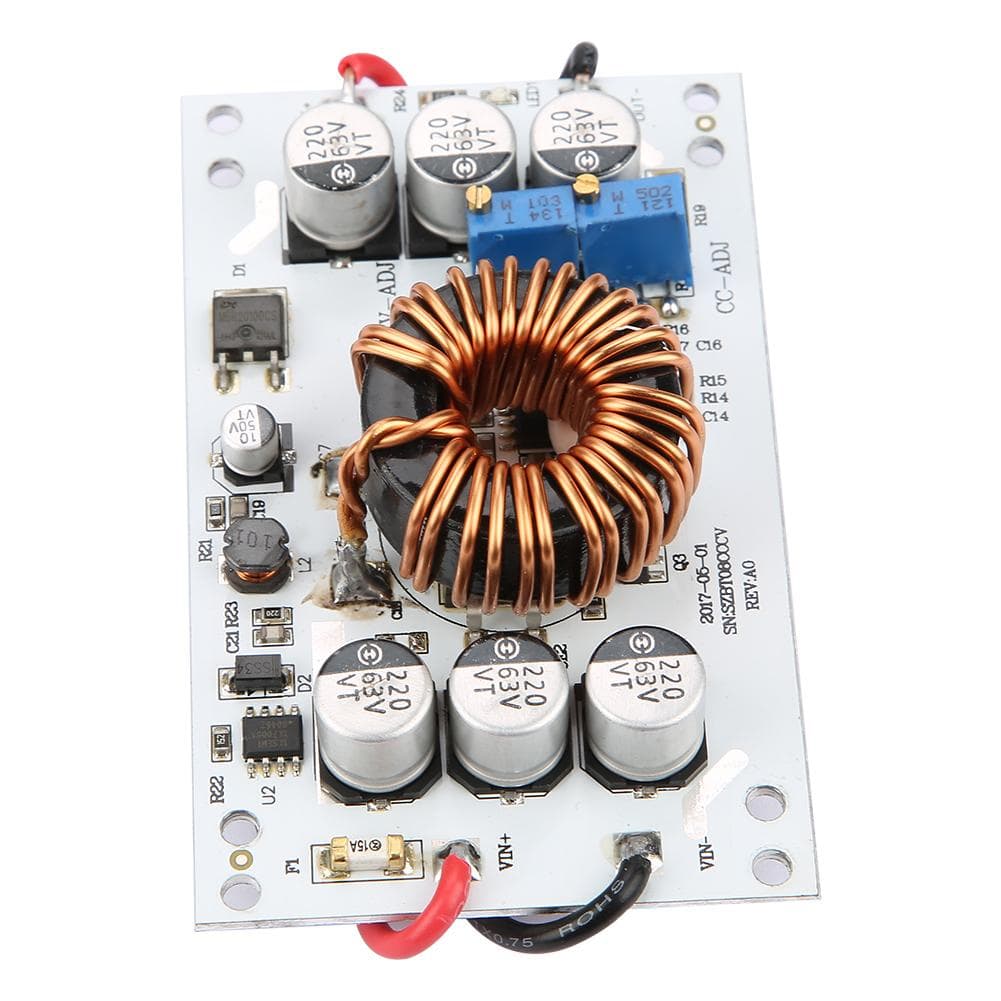

600W DCDC Constant Voltage Current Adjustable Step Up Power Supply Module LED Driver

About this item

• Features: 1. Constant output voltagecurrent, continuously adjustable. 2. High conversion efficiency up to 96percent . 3. High power electronic components, stable and reliable. 4. Adopt aluminum substrate PCB with good thermal conductivity. 5. Mainly used for LED drive, DIY power supply, car power supply, solar charging power supply, battery charging, etc. Specification: Input Voltage: DC 1060V Input Current: 10A Max Static Working Current: 10mA Output Voltage: DC 1260V continuously adjustable Output Current: 10A Max (decreases as the voltage difference between input and output increases, please enhance heat dissipation when over 10A) Constant Voltage Range: DC 1260V Constant Current Range: 0.210A Output Power: Input voltage x 10A Working Frequency: 150kHz Conversion Efficiency: 92percent 96percent Input Reverse Connection Protection: No Operating Temperature: 40~85 celsius Module Size: 85*52*21mm 3.3*2.0*0.8in Weight: Approx. 78g2.7oz Output Voltage Regulation: Adjust the CVADJ potentiometer and set the output voltage to your desired voltage according to your battery or LED. Clockwise decrease, counterclockwise increase. Output Current Regulation: Turn the CCADJ potentiometer clockwise for about 20 turns to set the output current to the minimum value and connect it to the LED, adjust CCADJ potentiometer to the required current. For charging the battery, connect the output after discharging the battery, then adjust the CCADJ to the current you need. Package L ist: 1 * StepUp Power Supply Note : 1. The input voltage should not be lower than 10V. If the input voltage is too low, the power supply will be damaged. 2. The inputoutput voltage and current must not exceed the maximum value during operation to avoid damage to the power supply. 3. Pay attention to ventilation and heat dissipation when working for a long time to extend the service life of the power supply. Constant output voltagecurrent, continuously adjustable. High conversion efficiency up to 96percent . High power electronic components, stable and reliable. Adopt aluminum substrate PCB with good thermal conductivity. Mainly used for LED drive, DIY power supply, car power supply, solar charging power supply, battery charging, etc.
