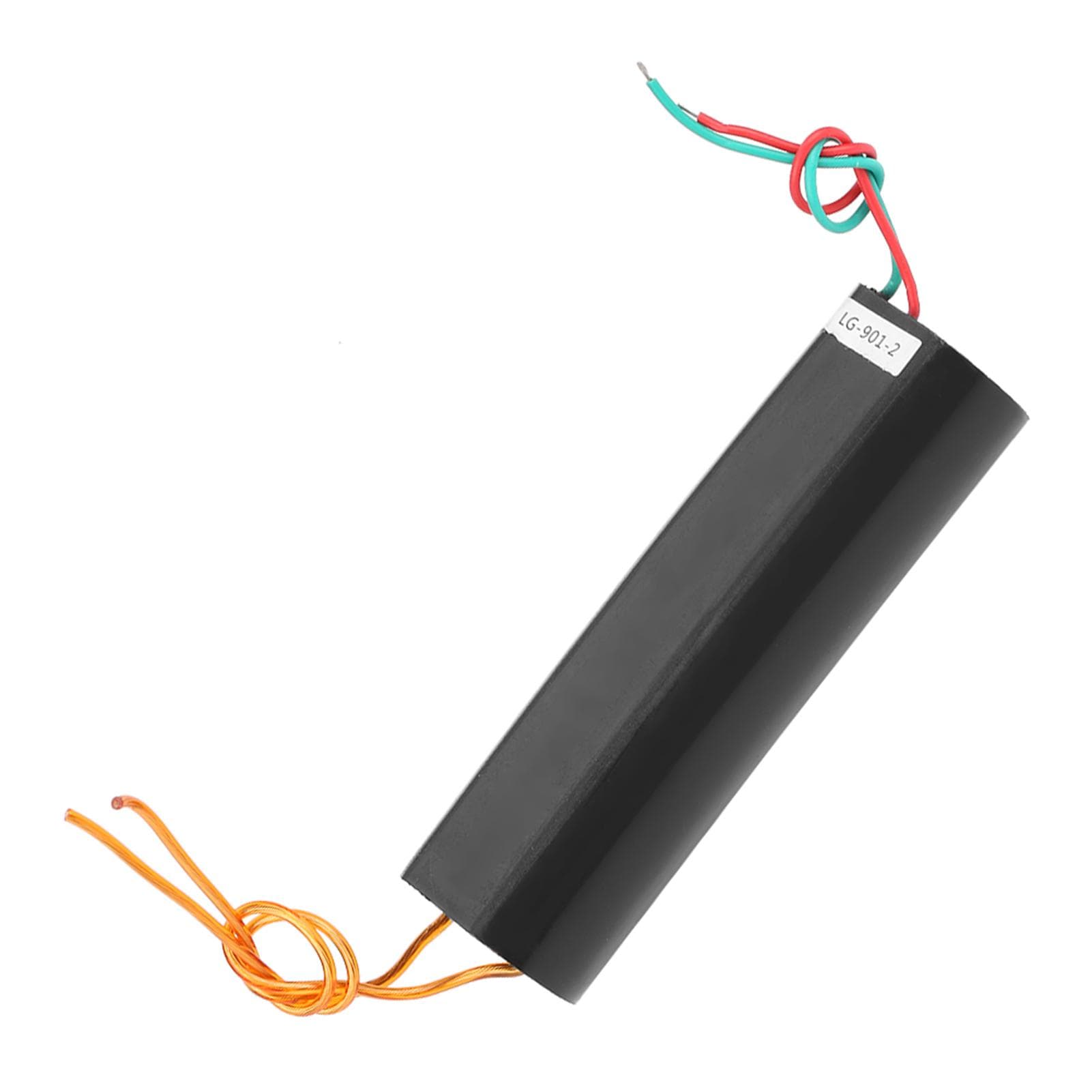

DC612V High Voltage Pulse Generator Inverter Super Arc Pulse Ignition Module (9012)

About this item

• Features: It can be used as high voltage source for high school science experiment, electronic instrument, negative ion generator and little science. After the input of dc 612V voltage, a dc high voltage of about 10,000V (about 12 cm of arc) can be obtained at the output end. It can generate high temperature and high frequency arc, can easily ignite combustible. According to the tesla coil principle, the module outputs high voltage pulse current, small volume and high efficiency. The peripheral circuit is simple (simply connect the switch, Install the battery), the discharge strength is violent. Specification: Model(Optional) : 9012(work continuously for 10s), 901c2(work continuously for 1 min) (Note: it is strictly forbidden to exceed working time) Input voltage: DC612V Input current: 1A3A (related to voltage) High pressure type: pulse high and low pressure integrated type Output voltage: approx. 0.51 million V(please pay attention to safety when using) Discharge distance between high pressure poles: 1020mm Output highvoltage wire length: approx. 100mm Input power wire length: approx. 100mm (the red wire is positive) Size:86*25mm3.4*1in Weight: Approx.63g~72g2.2oz~2.5oz Note: 1.Avoid highvoltage noload power supply. (it is necessary to adjust the appropriate distance of the highvoltage cable end before energizing. The distance of the highvoltage cable to pull the arc is directly proportional to the voltage and capacity of the battery used. When measuring arc distance, the test shall be conducted from short to long. 2.Power is strictly forbidden when exceeding the maximum arc distance. As the high voltage energy cannot be released, modules are easily damaged. 3.About the input power: 2 pcs3.7v lithium battery can be used in series, such as 18650 battery, idle cell phone battery (to remove the protection board, recommended capacity above 2000mAh) or NickelcadmiumNimh battery pack, or 6V Acid batteries. 4. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. .It can be used as high voltage source for high school science experiment, electronic instrument, negative ion generator and little science. After the input of dc612v voltage, a dc high voltage of about 10,000V (about 12 cm of arc) can be obtained at the output end. It can generate high temperature and high frequency arc, can easily ignite combustible. According to the tesla coil principle, the module outputs high voltage pulse current, small volume and high efficiency. The peripheral circuit is simple (simply connect the switch, Install the battery), the discharge strength is violent.
