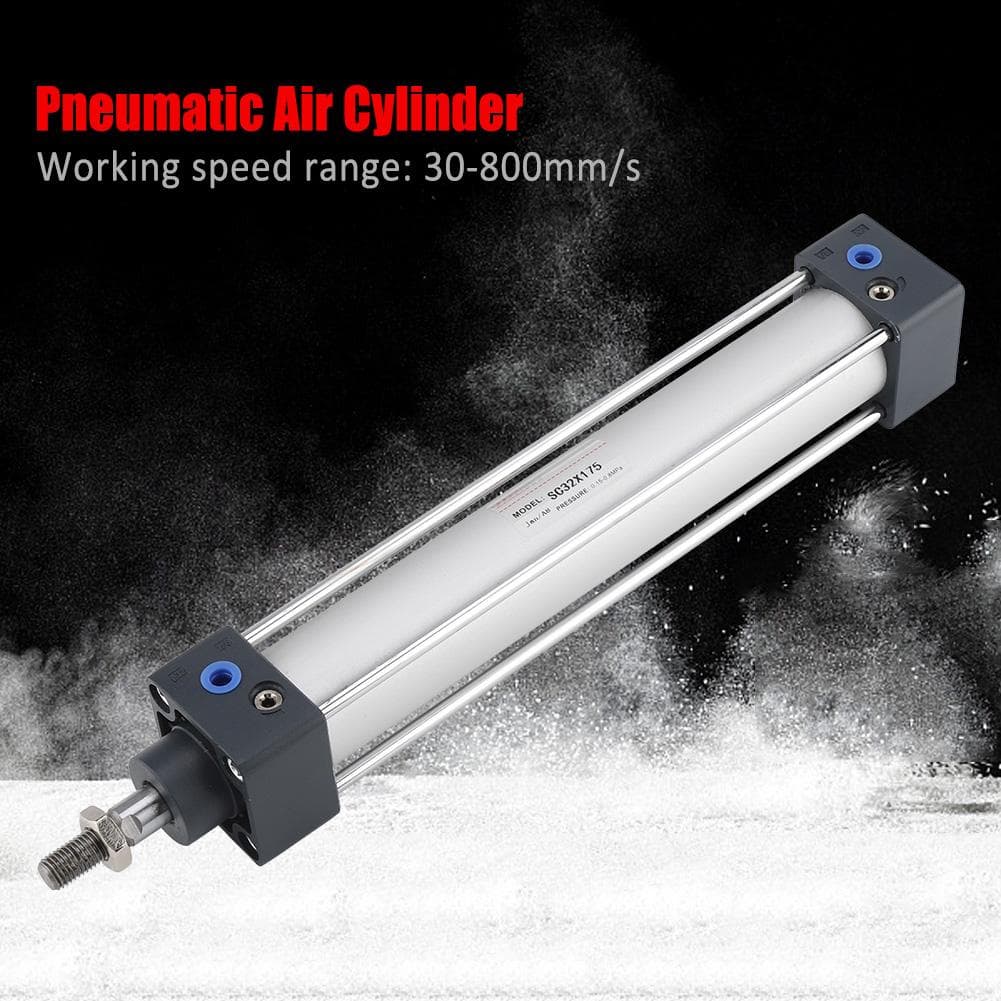

32mm Bore 175mm Stroke Screwed Piston Rod Pneumatic Air Cylinder Dual Action

About this item

• Description: This air cylinder is made of high quality aluminum alloy with durable performance. The stroke is 175mm and the inner Diameter is 32mm, convenient to install, easy to use. Features: Adopt aluminum alloy cylinder, durable for use. 32mm bore and 175mm stroke, double action and single rod. With the adjustable buffer mode, the cylinder works very smoothly, safely and with low noise. The piston seal is adopted in twoway sealing structure with compact size and oil storage function. The front cover adopts selflubrication bearing guide, perfect lubrication and guiding performance. Specifications: Material: Aluminum alloy Operation medium: Air Bore: 32mm 1.26inch Stroke: 175mm 6.89inch Pressure: 0.11.0MPa (14145psi) Enduring pressure: 1.5MPa(215Psi) Working temperature: 20~80 celsius Working speed range: 30800mms Action type: Double acting Buffer stroke: 21mm 0.83inch Port thread: PT18 Size: Approx. 32 x 4.5cm 12.60 x 1.77inch Weight: Approx. 864g Package Included: 1 x Standard Cylinder Adopt aluminum alloy cylinder, durable for use 32mm bore and 175mm stroke, double action and single rod With the adjustable buffer mode, the cylinder works very smoothly, safely and with low noise The piston seal is adopted in twoway sealing structure with compact size and oil storage function The front cover adopts selflubrication bearing guide, perfect lubrication and guiding performance
