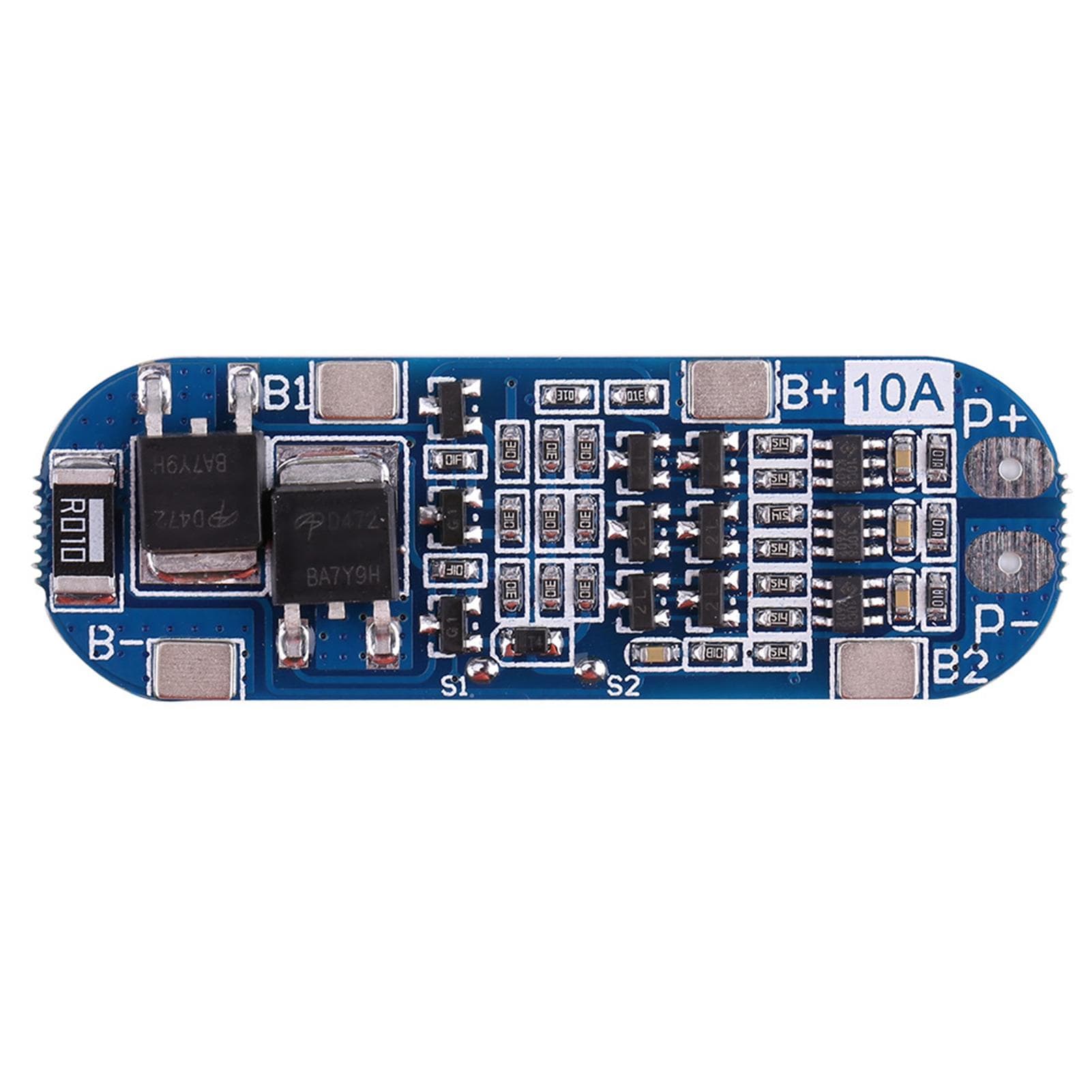

3 Series 11.1V 12V 12.6V Li ion Lithium 18650 Battery Cell BMS PCB Protection Board(#2)

About this item

• Features: Three series of lithium battery protection board. Automatically cancel protection after protection conditions restore. With function of overcharge protection, over discharge protection, short circuit protection, overcurrent protection. Suitable for lithium battery pack of 11.1V, 12V, 12.6V. Fine workmanship and durable. Quiescent current less than 30uA, so power consumption is small. Specifications: Model: 1#:HX3S01, 2#:HX3SFL10A Size: #1 : 50 * 16 * 1.0mm1.97 * 0.63 * 0.04inch #2: 53 * 17 * 4.0mm2.09 * 0.67 * 0.16inch Maximum operating current: 68A Maximum transient current: #1: 910A, #2:1013A Quiescent current: less than 30uA Internal resistance: less than 100m Ohm Working temperature: 40~+50 celsius Storage condition: 40~ +80 celsius Effective life: >30000h Short circuit protection: Yes, delayed self recovery The component included: #1: 1 pcs S8254AA protection chip, 4 pcs AO4407 #2: 1 pcs 2110cb protection chip, 2 pcs AOD472 Notes: 1. Higher than 3A current discharge product, the discharge rate of battery discharge is above 3C. 2.Multiplier calculation formula: 1C battery, 2000 capacity is equal to 2AH * 1 = 2A maximum working current. 3C ratio battery, 2000 capacity is equal to 2AH * 3 = 6Amaximumworking current. 3.In the process of use, if the battery heat, the battery power is not applicable. This situation cannot be used for a long time.Otherwise, the battery will soon be damaged. Package Included: 1 x PCB Protection Board(have assembled) Three series of lithium battery protection board Automatically cancel protection after protection conditions restore With function of overcharge protection, over discharge protection, short circuit protection, overcurrent protection Suitable for lithium battery pack of 11.1V, 12V, 12.6V Quiescent current less than 30uA, so power consumption is small
