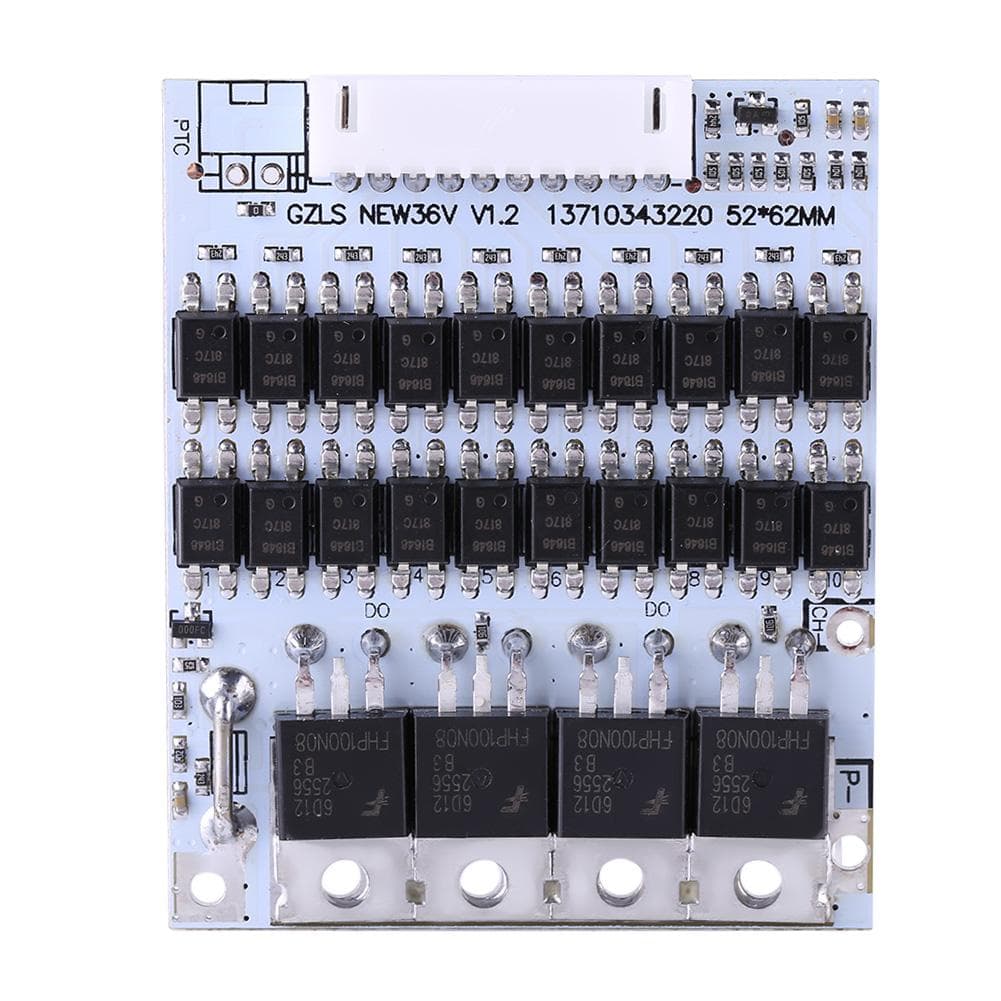

10S 36V 40A Li ion Battery Protection Board BMS PCB for Ternary Cobalt Acid Batteries w Balance

About this item

• Features: The protection board is for 10 series Liion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries. Charging connector and discharging connector are separated, discharging current is 18A. Stable various protective functions for charging and discharging, such as overcharge protection, overdischarge protection and short circuit protection. It has balance function which would ensure each battery cell being fully charged at same time. Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries. Specifications: Size: 53*63mm2.08*2.48 Used for: 36V10Sternarymanganese acidcobalt acid batteries Protection Consumption Current: less than 300UA Shortcircuit Protection Current: 40A+3A Shortcircuit Protection Time: 500MS Temperature Protection: 556575 celsius Discharge Current: 18A Max. Instantaneous Current: 40A Single Balance Current: less than 55MA Charge Current: less than 10A Package Includes: 1 x Battery Protection Board The protection board is for 10 series Liion batteries, it can be used for ternary batteries, manganese acid batteries and cobalt acid batteries Charging connector and discharging connector are separated, discharging current is 18A Stable various protective functions for charging and discharging, such as overcharge protection, overdischarge protection and short circuit protection It has balance function which would ensure each battery cell being fully charged at same time Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries
